Oil Pan Installation

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

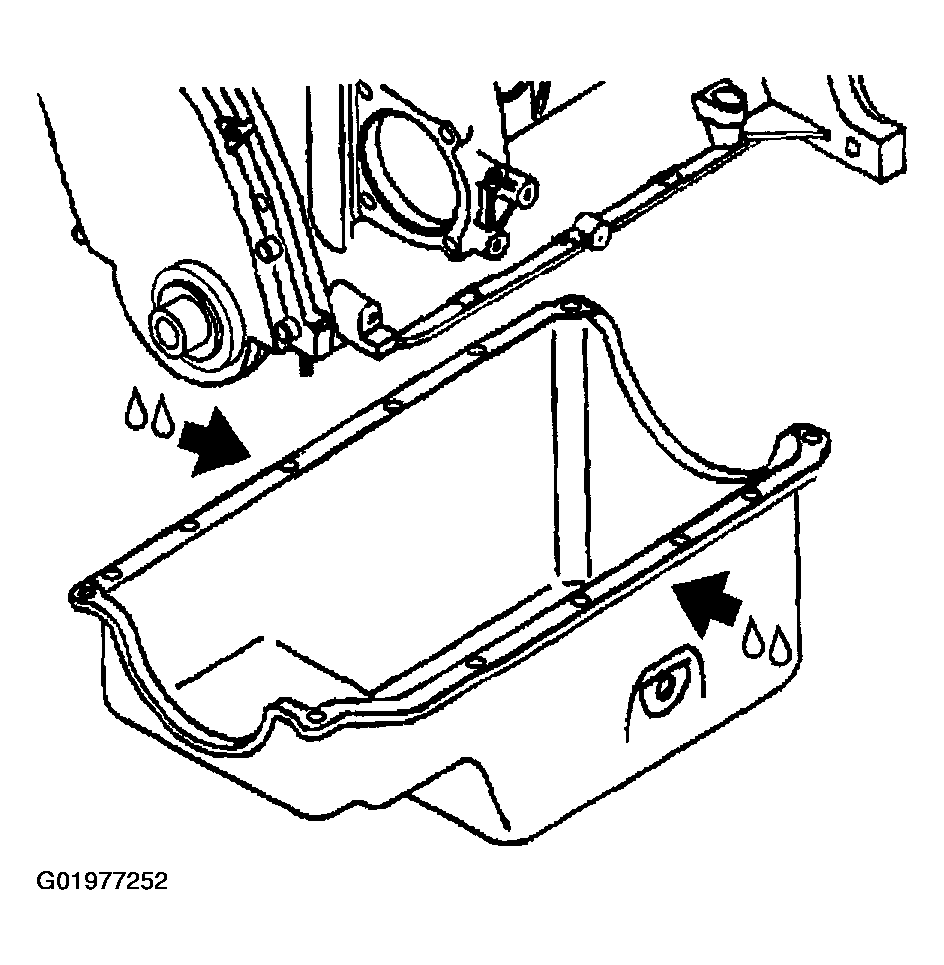

Apply a 5 mm (0.193 in) diameter bead of GM P/N United States 12346286, GM P/N Canada 10953472, or equivalent, to the oil pan side sealing flanges.

Fig 1: Applying Sealant To Oil Pan Side Sealing Flanges
Courtesy of GENERAL MOTORS CORP.

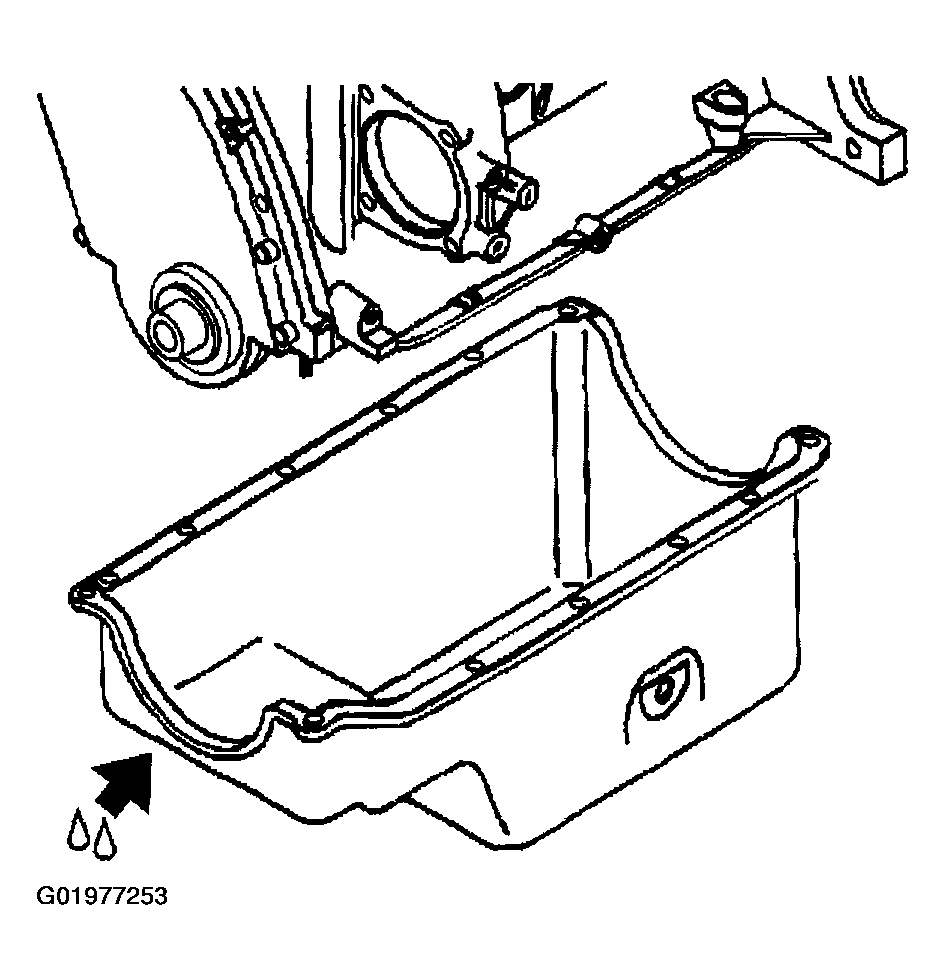

Apply GM P/N United States 12346286, GM P/N Canada 10953472, or equivalent, to the oil pan surface that contacts the engine front cover.

Fig 2: Applying Sealant To Oil Pan Surface
Courtesy of GENERAL MOTORS CORP.

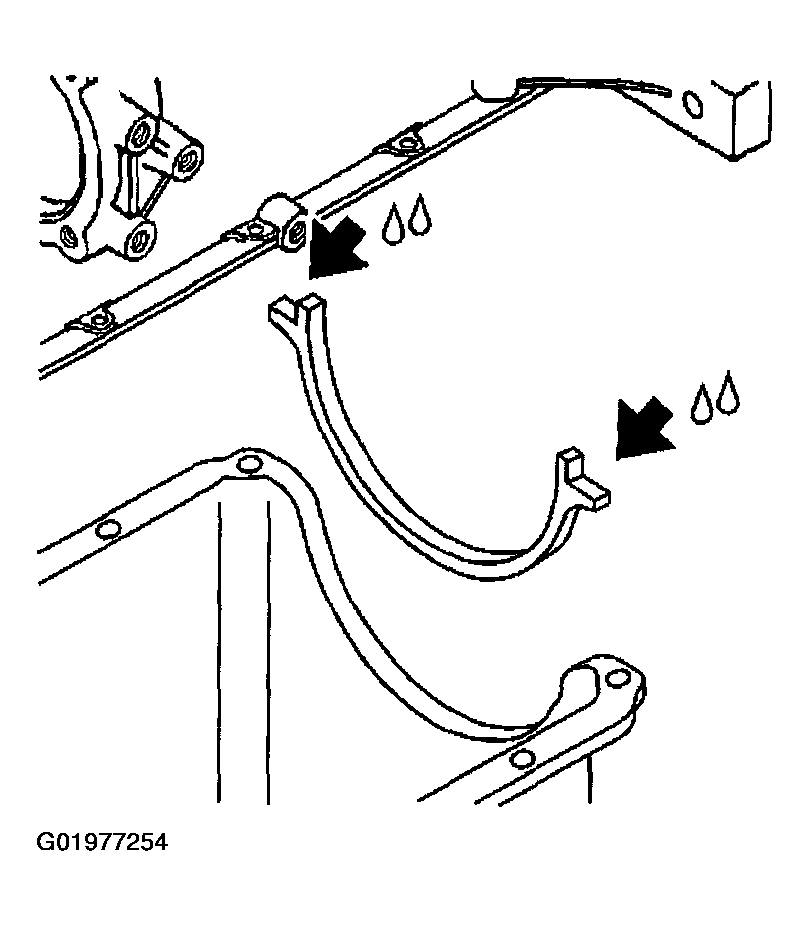

Apply a small amount of GM P/N United States 12346286, GM P/N Canada 10953472, or equivalent, to the new oil pan rear seal ears prior to installing the oil pan rear seal into the bearing cap groove.
Install the new oil pan rear seal.

Fig 3: Installing Oil Pan Rear Seal
Courtesy of GENERAL MOTORS CORP.

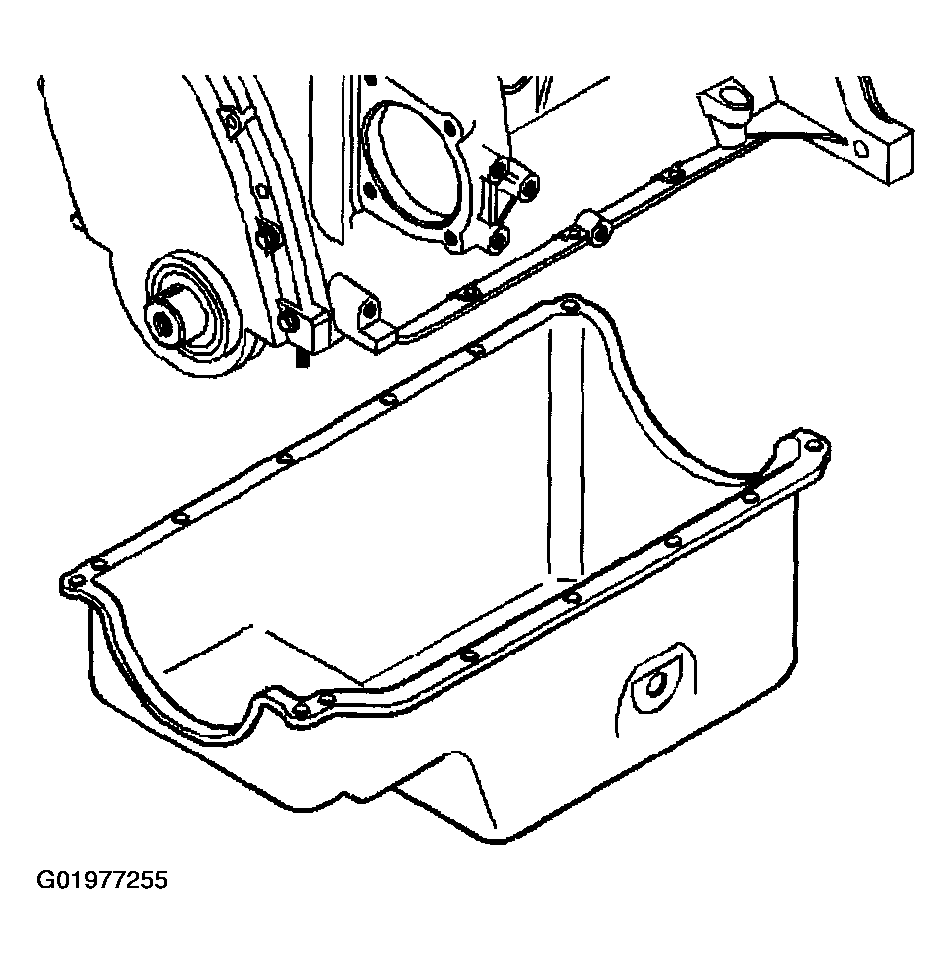

Install the oil pan.

Fig 4: Installing Oil Pan
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

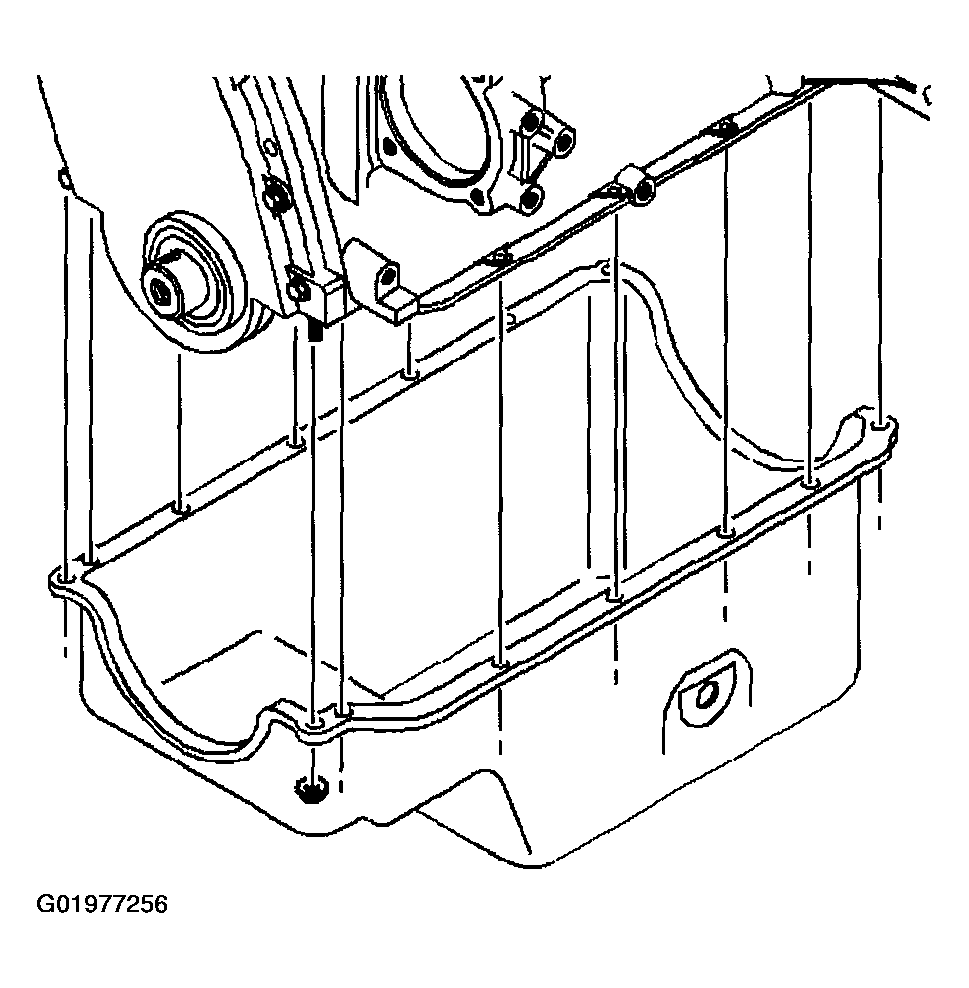

Install the oil pan nuts.
Tighten

Tighten the oil pan nuts to 10 N.m (89 lb in).

Fig 5: Installing Oil Pan Nuts
Courtesy of GENERAL MOTORS CORP.
