Intake Manifold Removal

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the throttle cable support bracket and throttle body.
  2. Remove the throttle body.

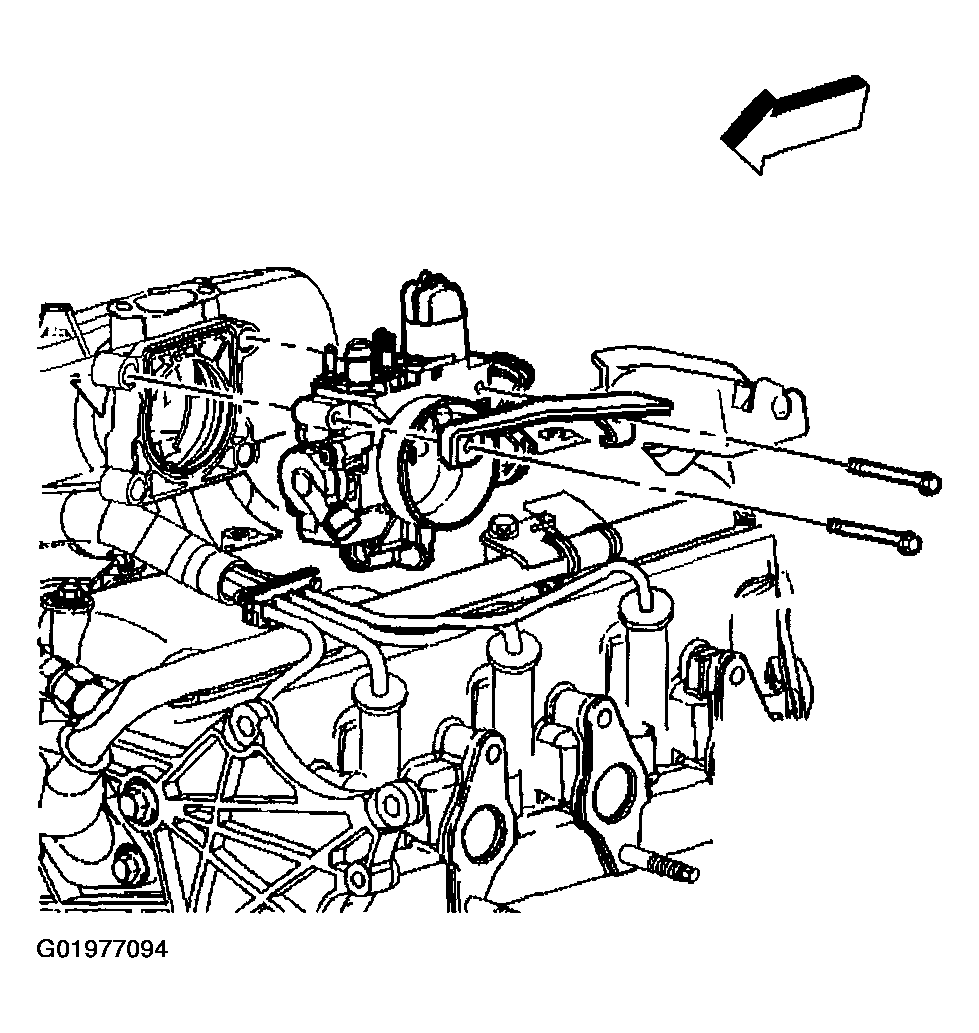

    Fig 1: Removing Throttle Body
    G01977094Courtesy of GENERAL MOTORS CORP.
  3. Remove the intake manifold bolts.
  4. Remove the intake manifold nuts.
  5. Remove the fuel rail bracket.
  6. Remove the intake manifold and gasket. Discard the intake manifold gasket.

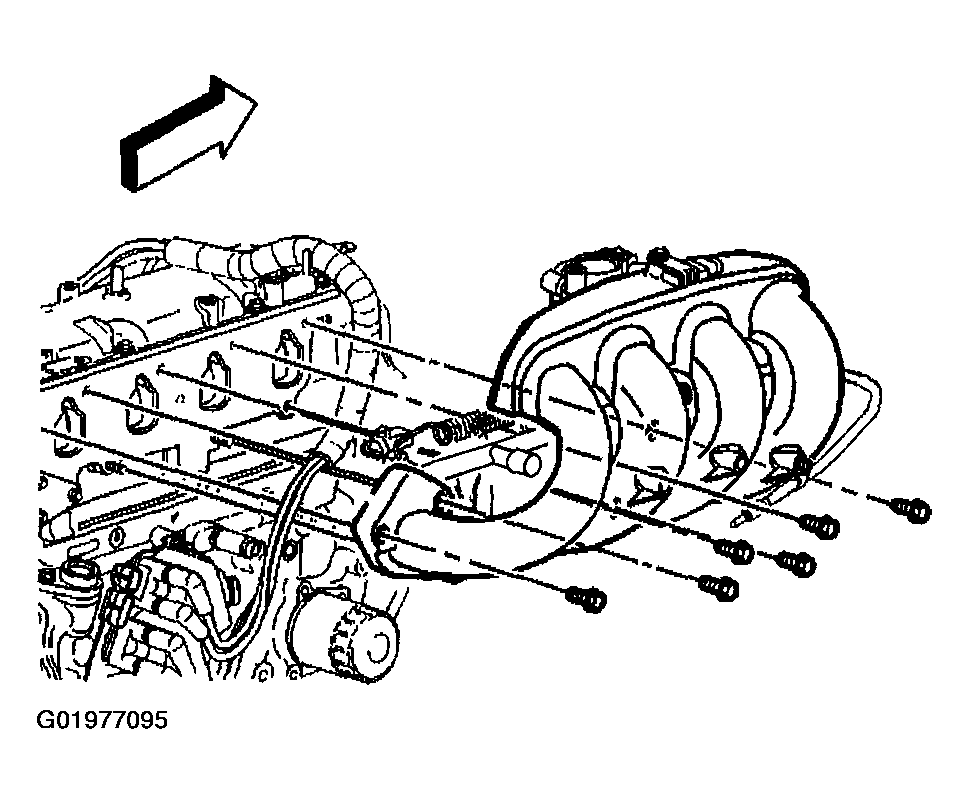

    Fig 2: Removing Intake Manifold And Gasket
    G01977095Courtesy of GENERAL MOTORS CORP.
