Exhaust Manifold Installation

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust manifold gasket and exhaust manifold.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the exhaust manifold nuts.

    Tighten

    Tighten the exhaust manifold nuts to 13 N.m (118 lb in).

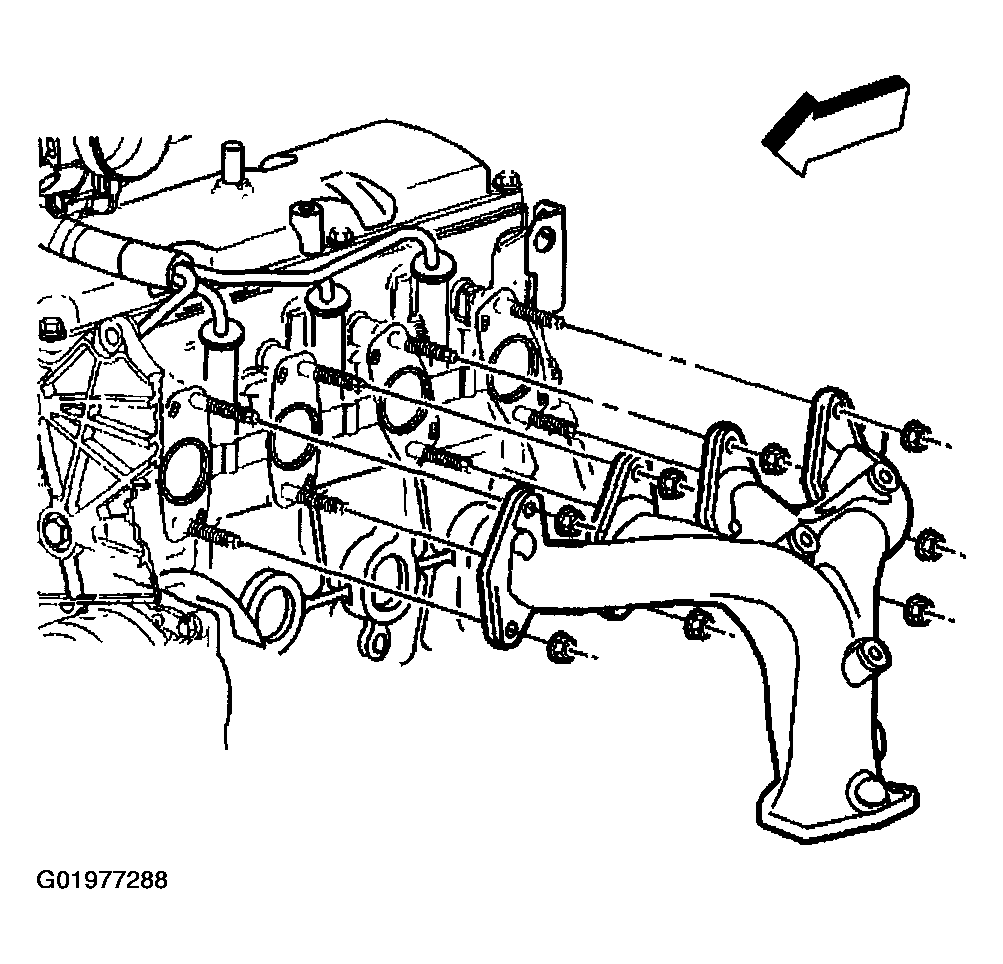

    Fig 1: Installing Exhaust Manifold Gasket And Exhaust Manifold
    G01977288Courtesy of GENERAL MOTORS CORP.
