Crankshaft Pulley and Hub Removal

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Tool Required

J 24420-C Crankshaft Pulley Hub Puller

Remove the crankshaft pulley bolts and crankshaft hub bolt.
Remove the crankshaft pulley.

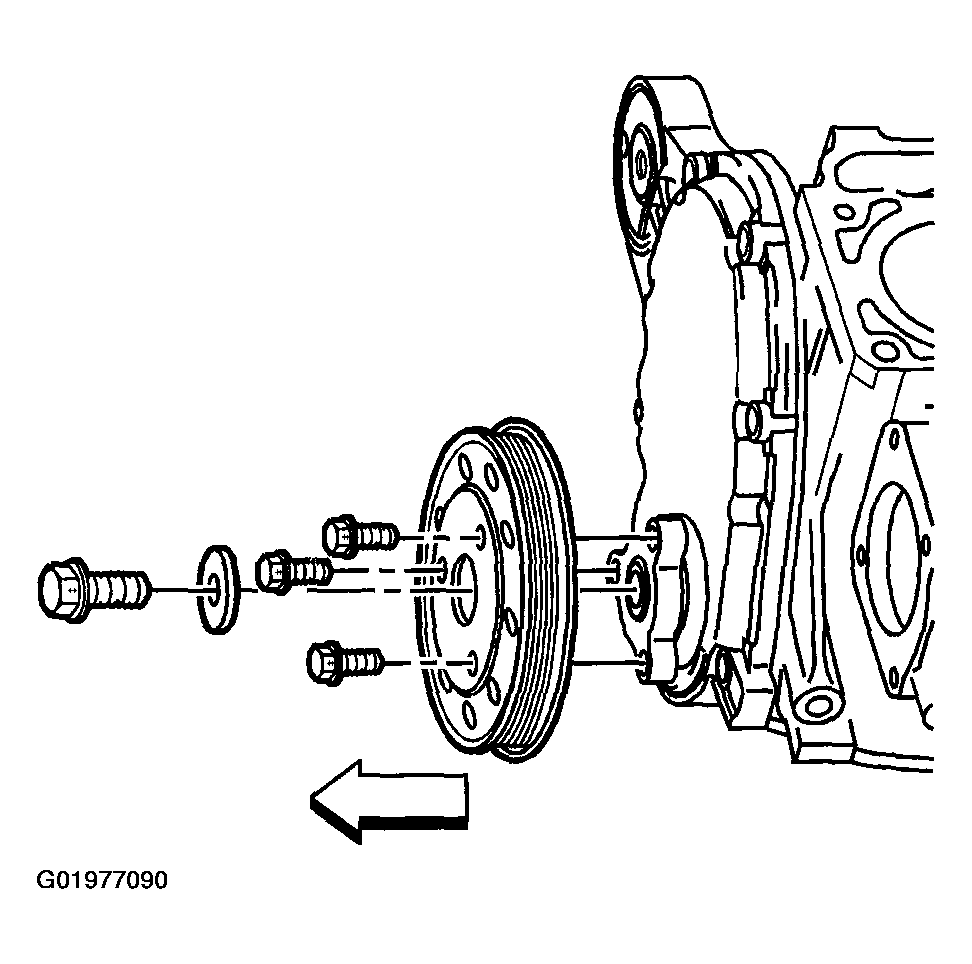

Fig 1: Removing Crankshaft Pulley
Courtesy of GENERAL MOTORS CORP.
Position the J 24420-C onto the crankshaft pulley hub.

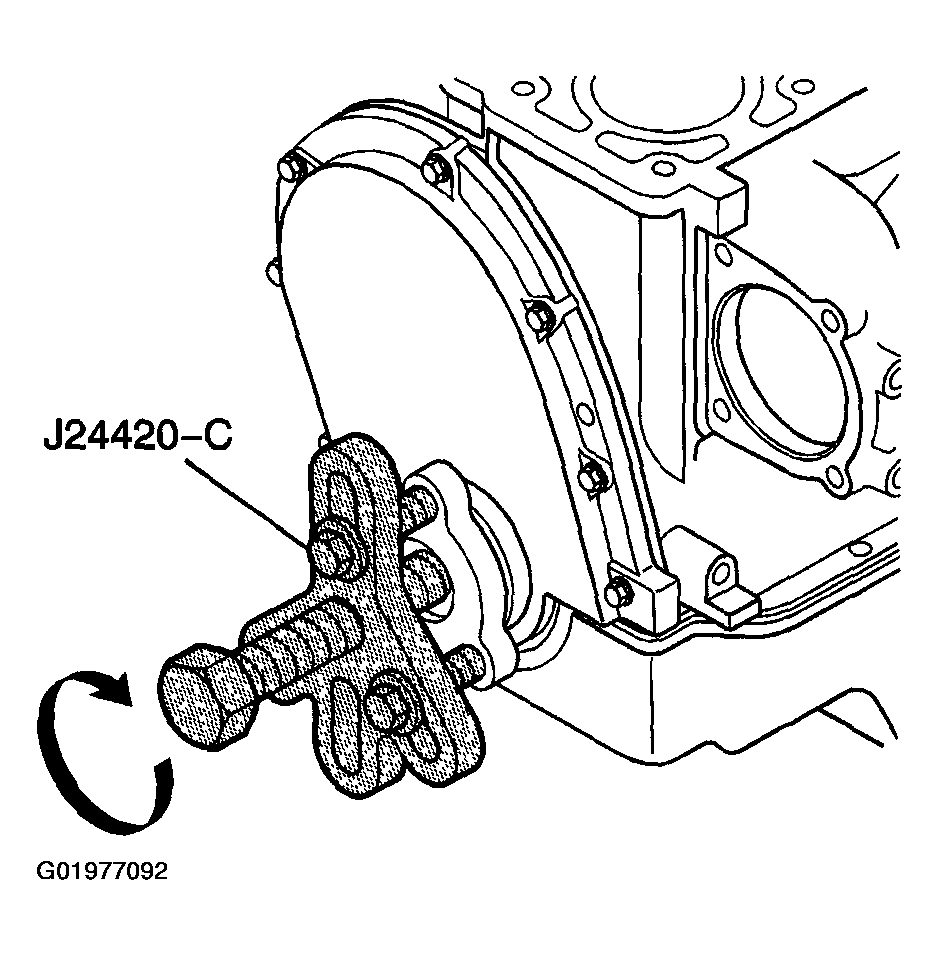

Fig 2: Positioning SST Onto Crankshaft Pulley Hub
Courtesy of GENERAL MOTORS CORP.
Using the J 24420-C , turn the puller screw clockwise.

Fig 3: Turning Puller Screw Clockwise
Courtesy of GENERAL MOTORS CORP.
Remove the hub from the crankshaft.

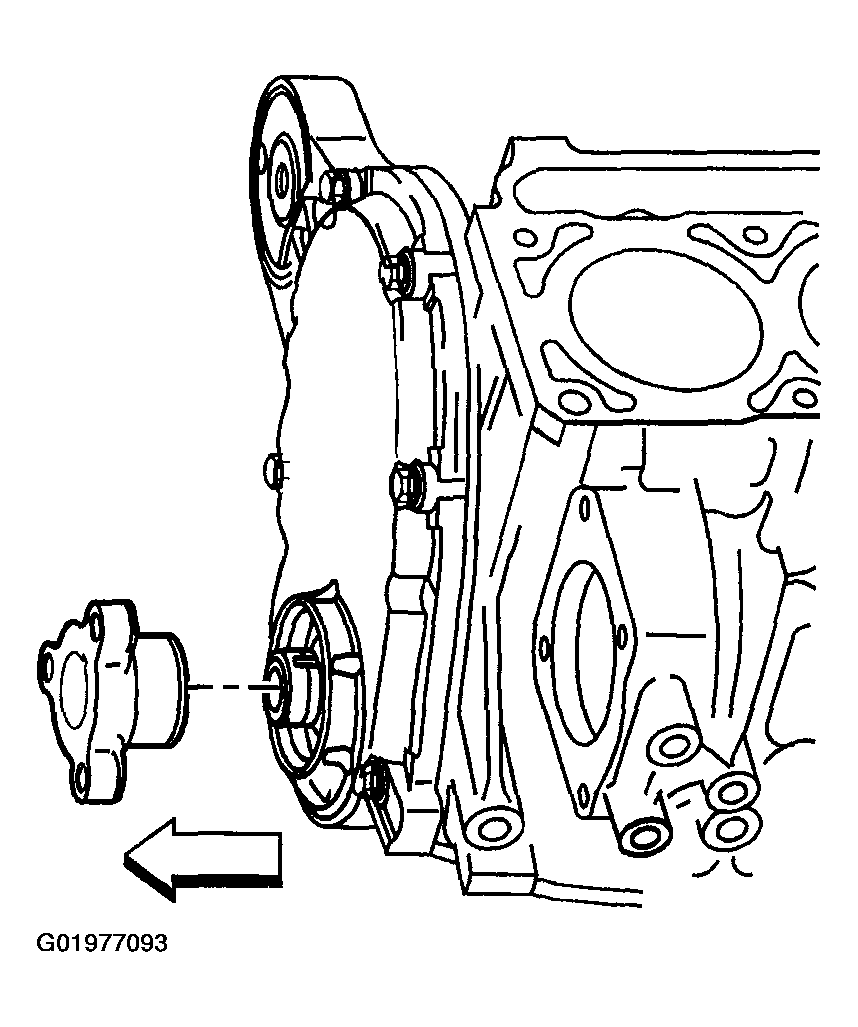

Fig 4: Removing Hub From Crankshaft
Courtesy of GENERAL MOTORS CORP.
