Camshaft Removal

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Remove the camshaft thrust plate bolts.

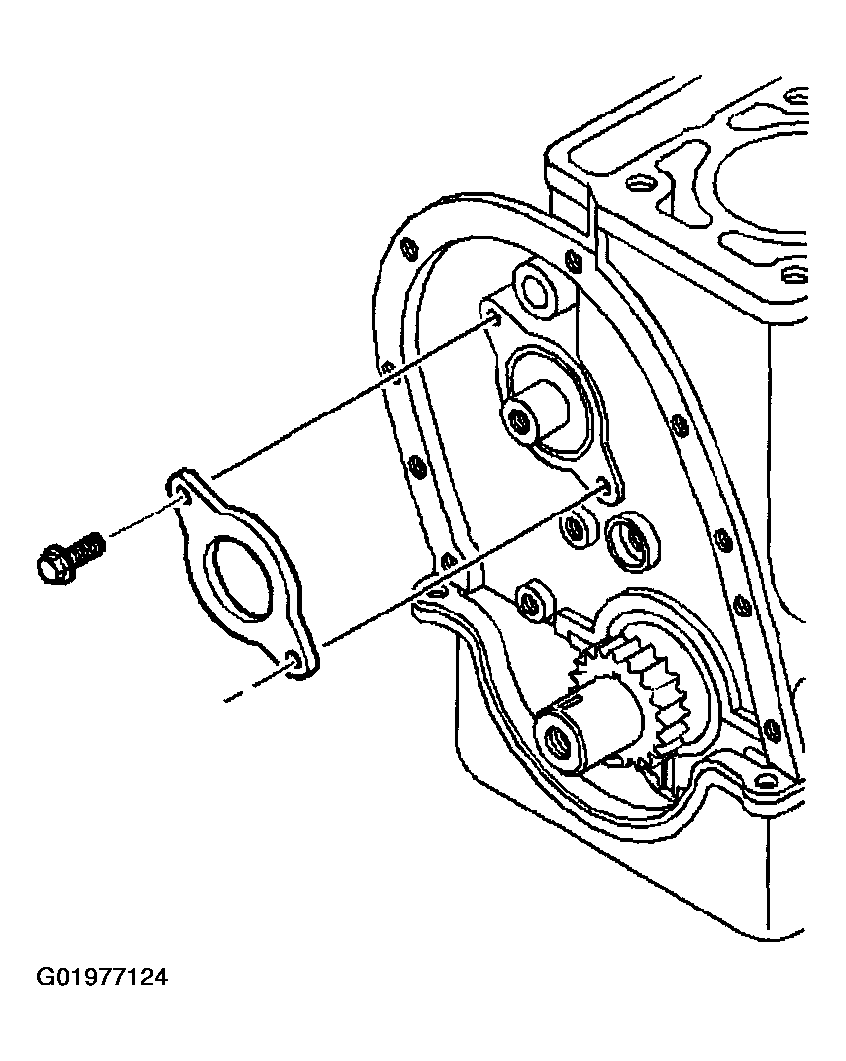

Fig 1: Removing Camshaft Thrust Plate
Courtesy of GENERAL MOTORS CORP.
Remove the camshaft position sensor.

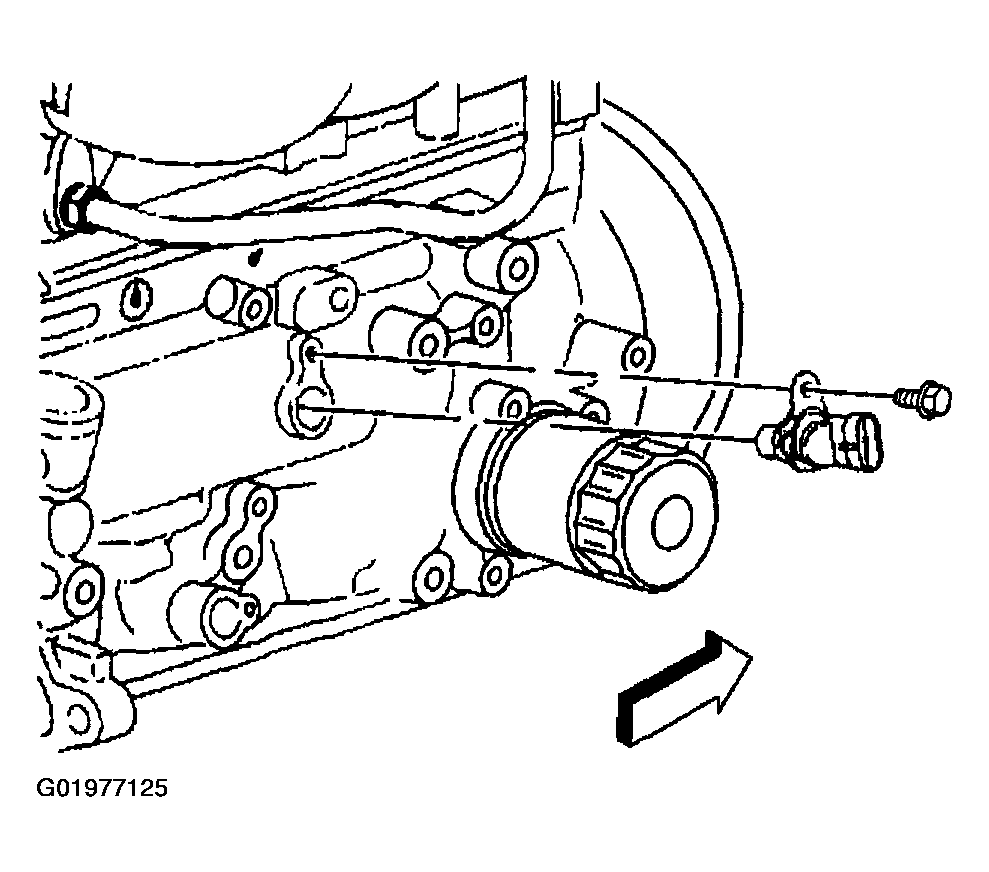

Fig 2: Removing Camshaft Position Sensor
Courtesy of GENERAL MOTORS CORP.

Important: Do not damage the camshaft bearings while removing the camshaft.
Remove the camshaft.

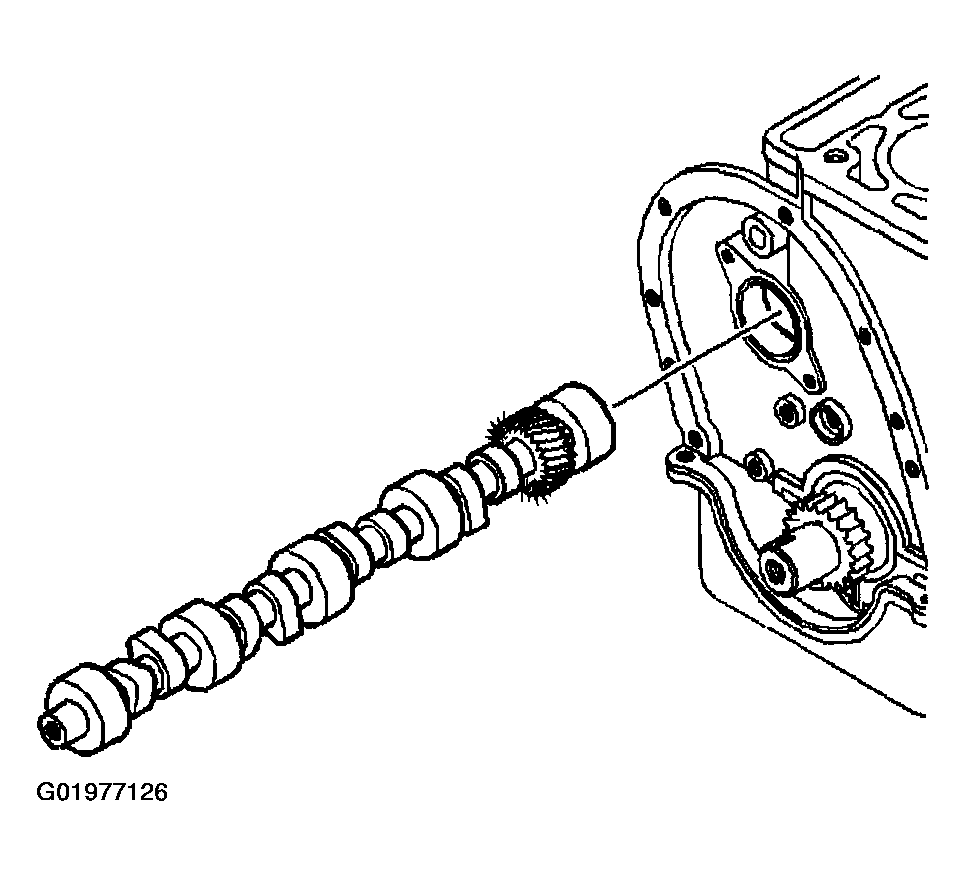

Fig 3: Removing Camshaft
Courtesy of GENERAL MOTORS CORP.
