Oil Leak Diagnosis

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Oil Leak - Diagnosis Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

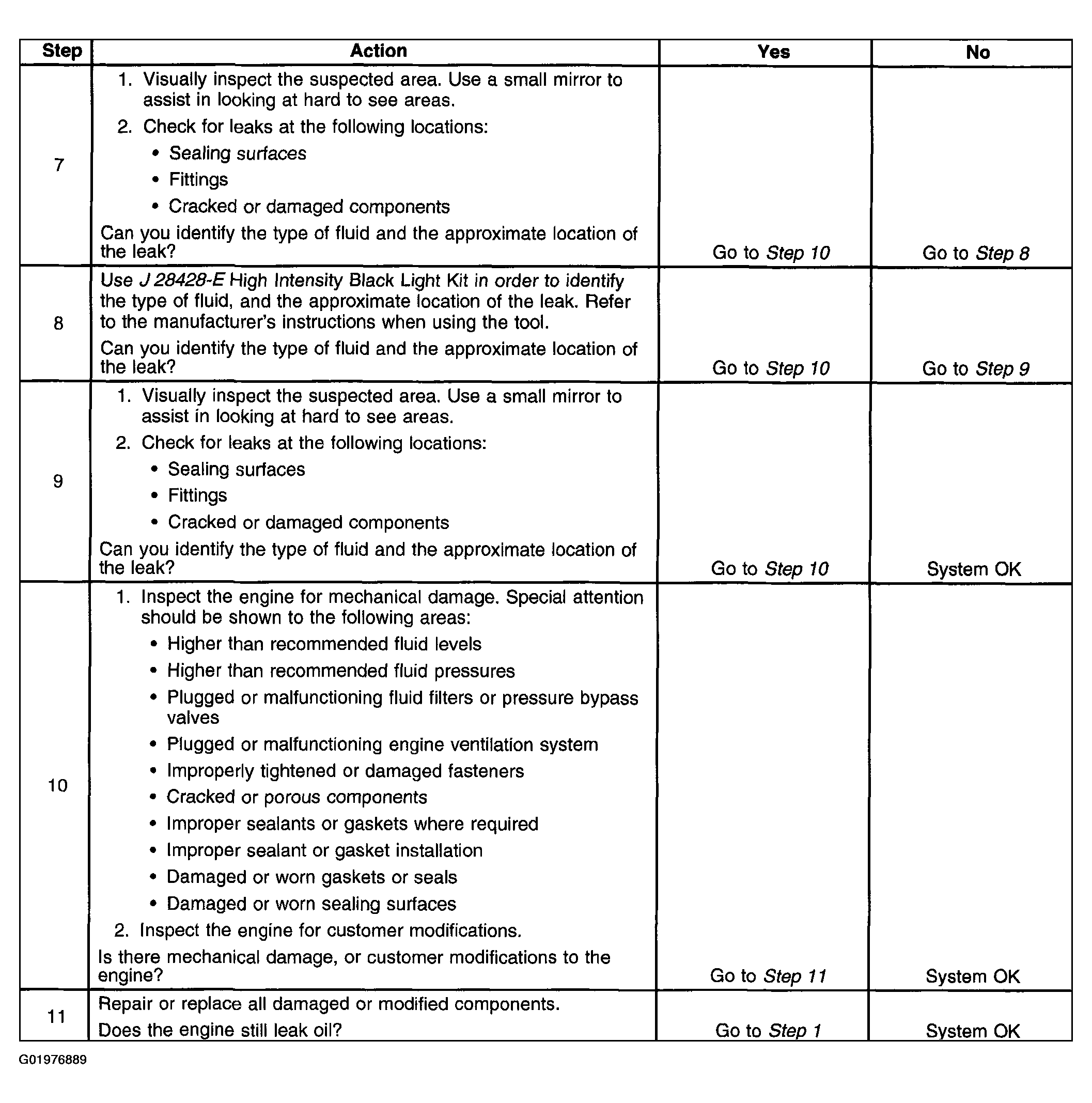

Fig 2: Oil Leak - Diagnosis Table (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
