Base Engine Misfire with coolant Consumption

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

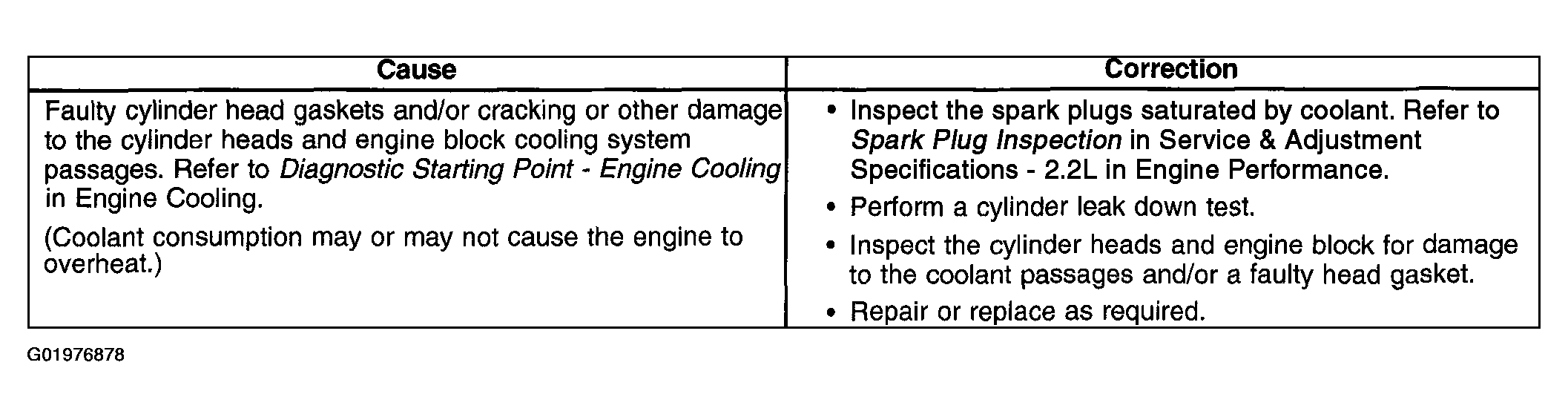

Fig 1: Base Engine Misfire With coolant Consumption - Diagnostic Table
G01976878Courtesy of GENERAL MOTORS CORP.
