WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

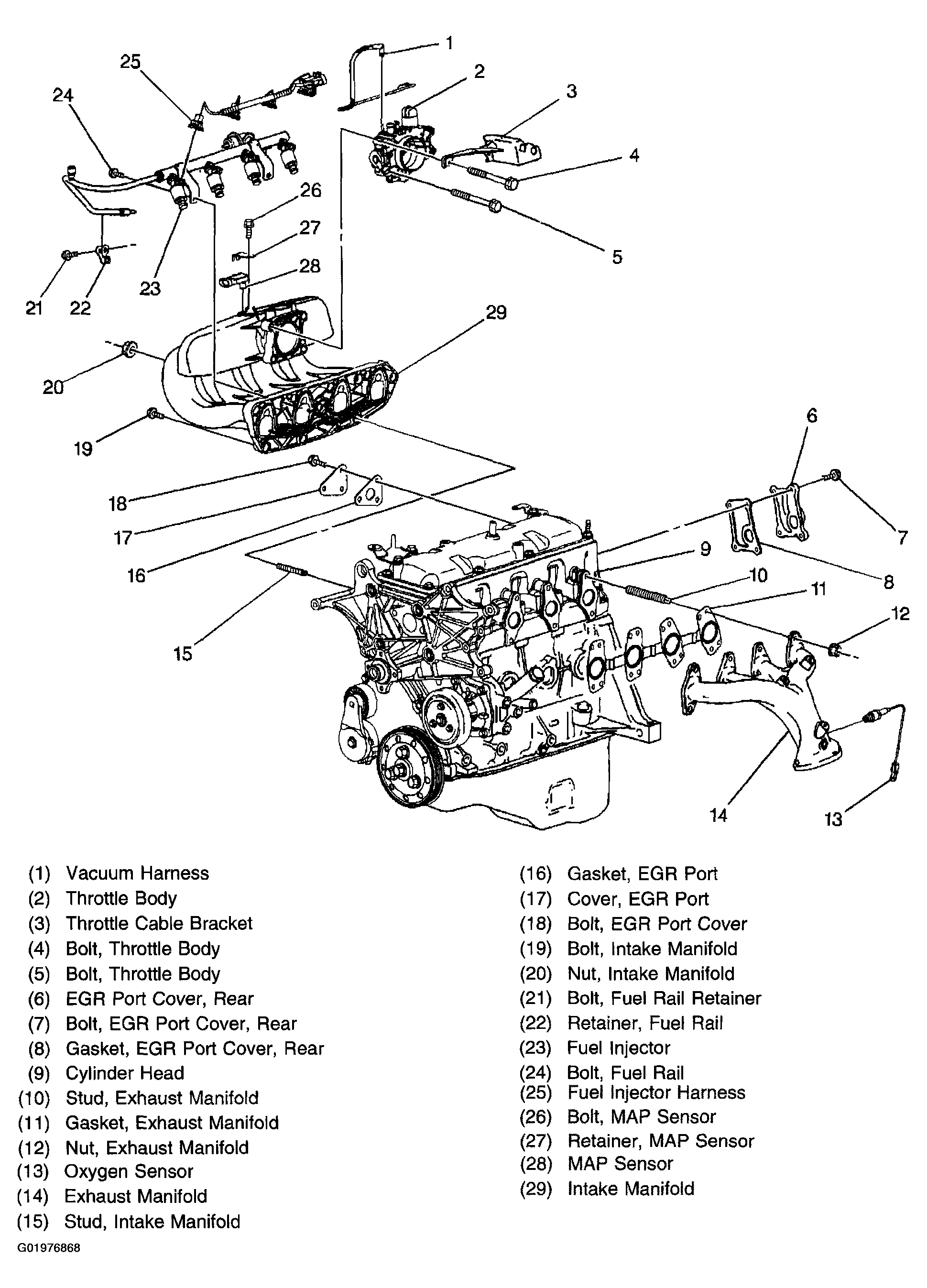

Fig 1: Intake And Exhaust Manifold Components Disassembled View
Courtesy of GENERAL MOTORS CORP.

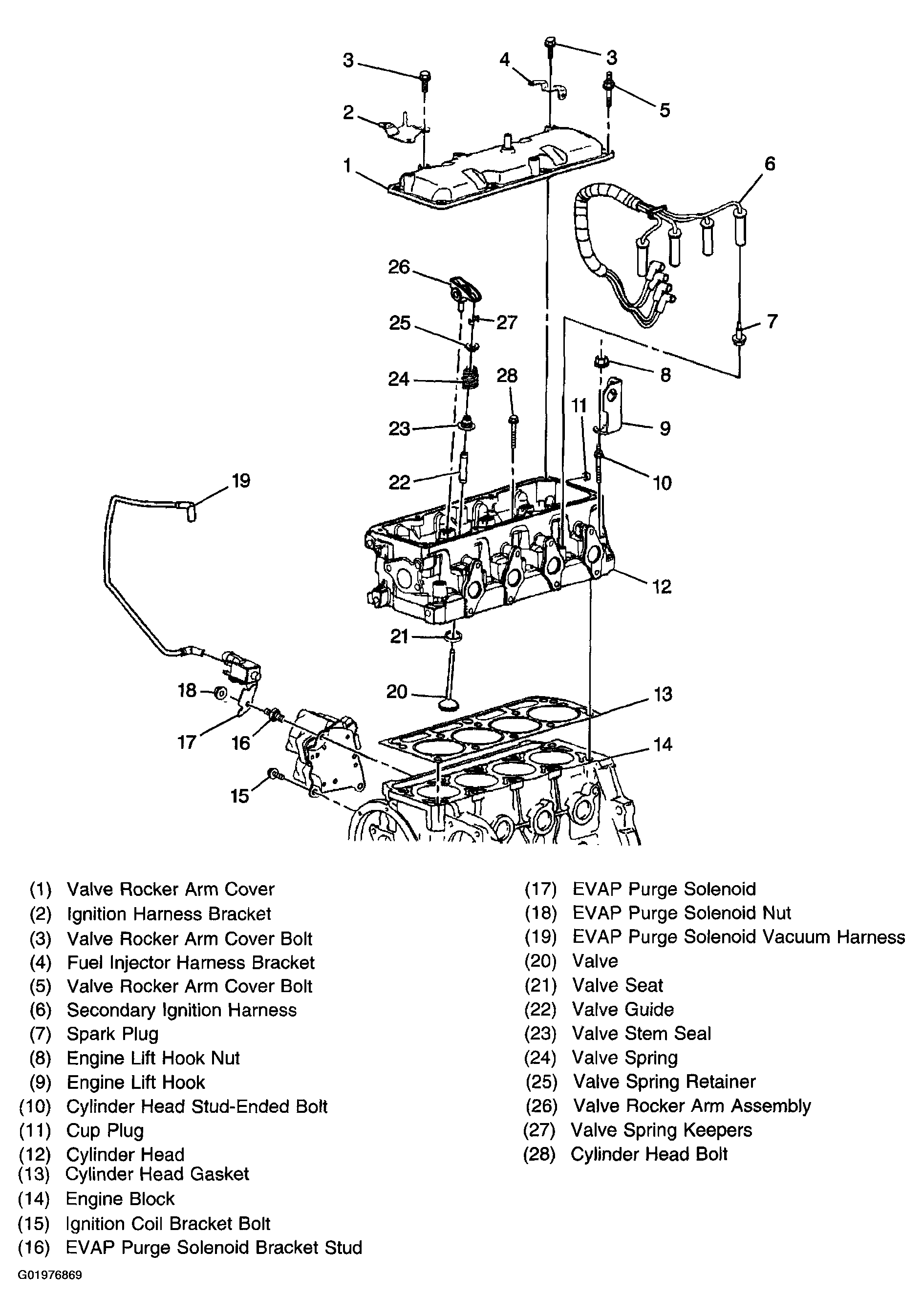

Fig 2: Cylinder Head And Components Disassembled View
Courtesy of GENERAL MOTORS CORP.

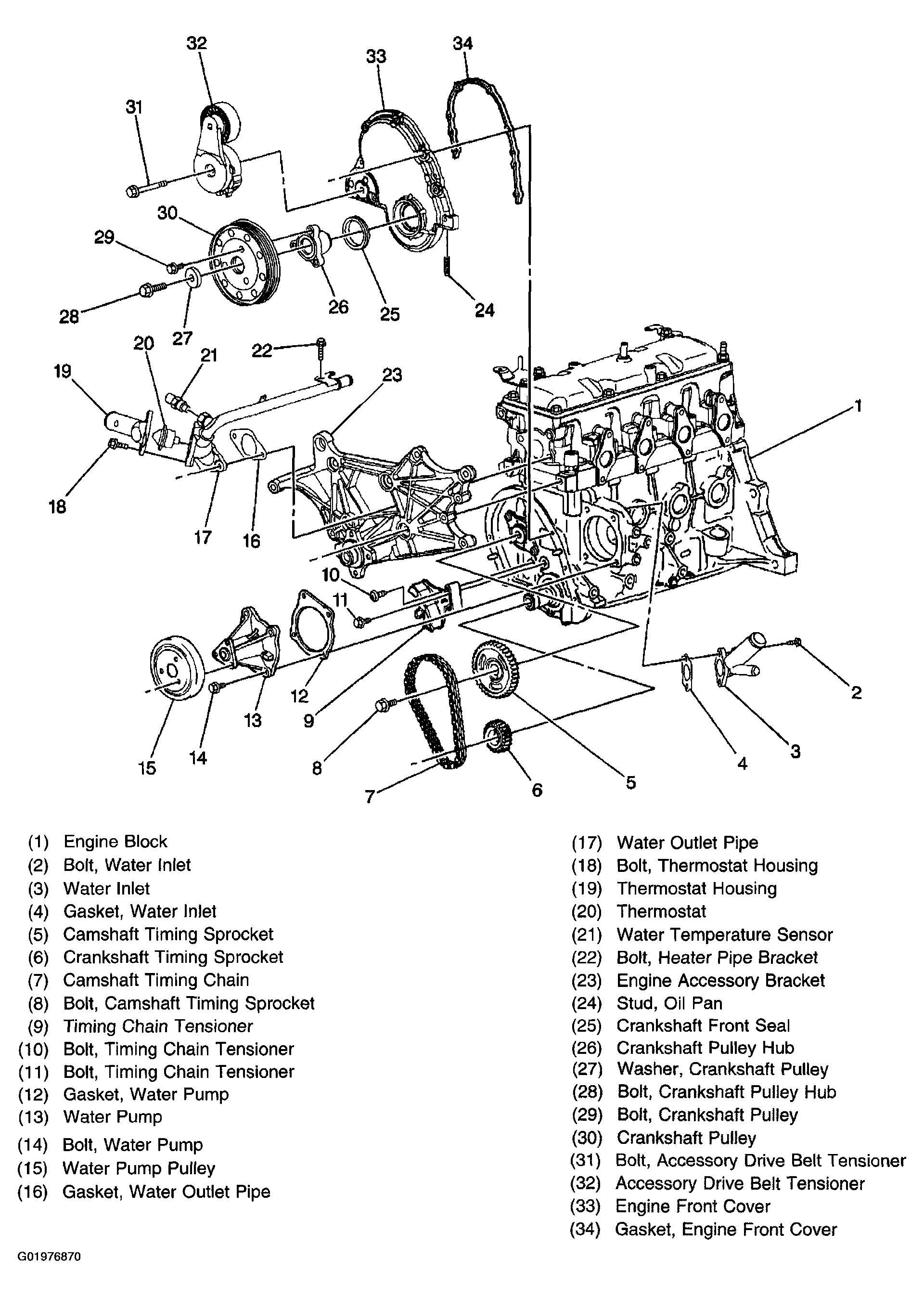

Fig 3: Timing And Accessory Components Disassembled View
Courtesy of GENERAL MOTORS CORP.

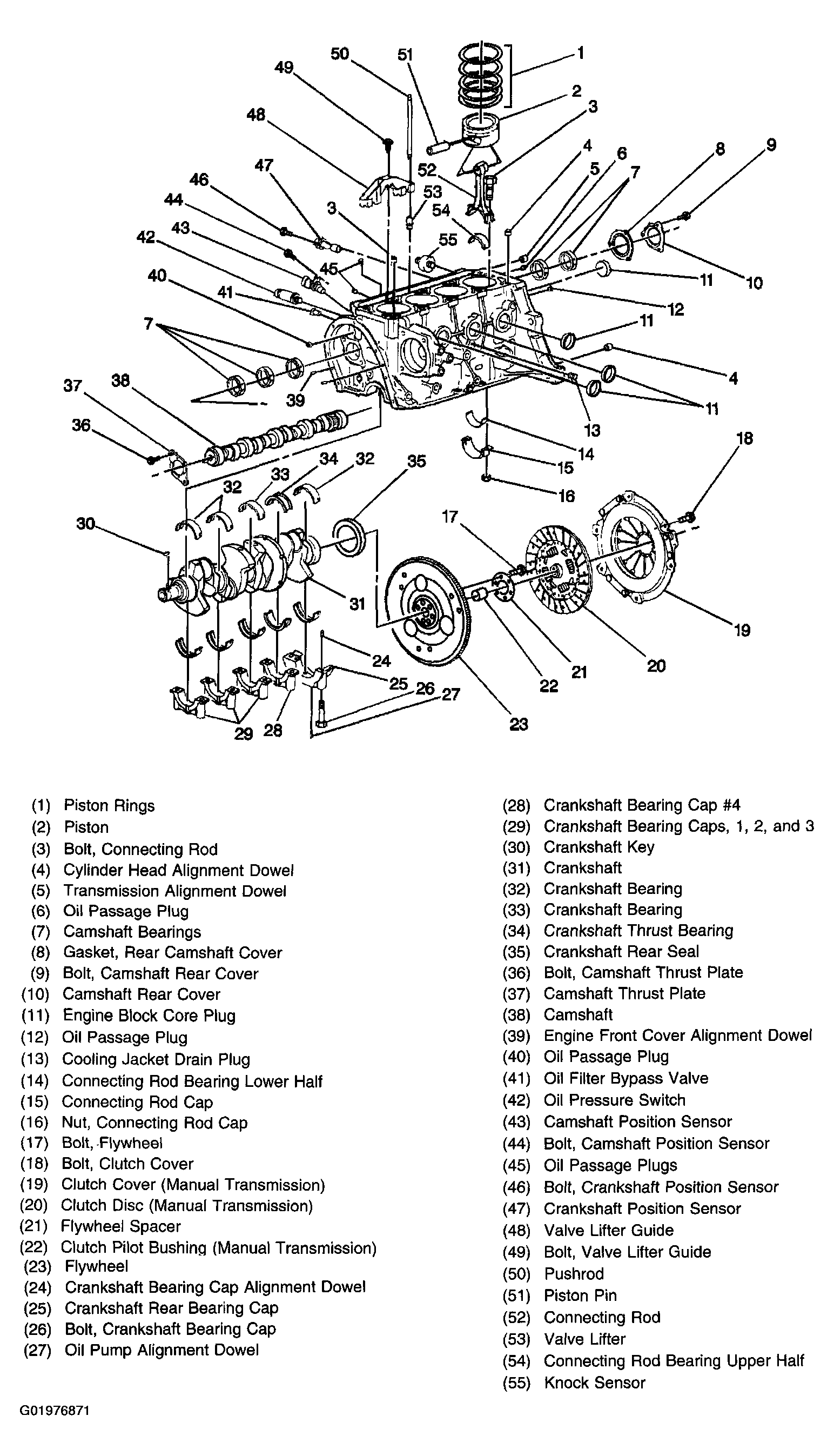

Fig 4: Cylinder Block And Crankshaft Components Disassembled View
Courtesy of GENERAL MOTORS CORP.

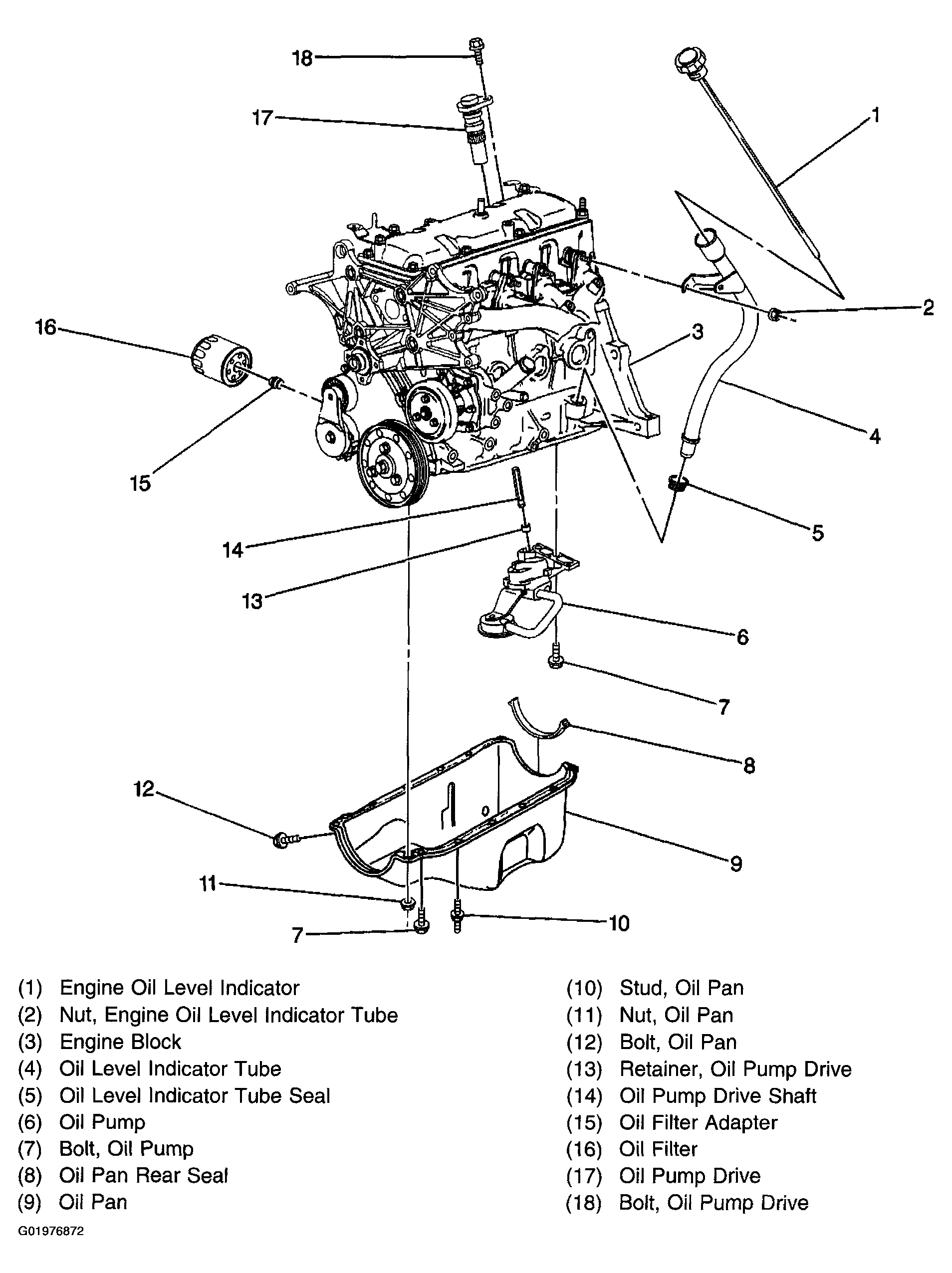

Fig 5: Oil Pump And Oil Pan Components Disassembled View
