ABS Schematics (Power and Ground)

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

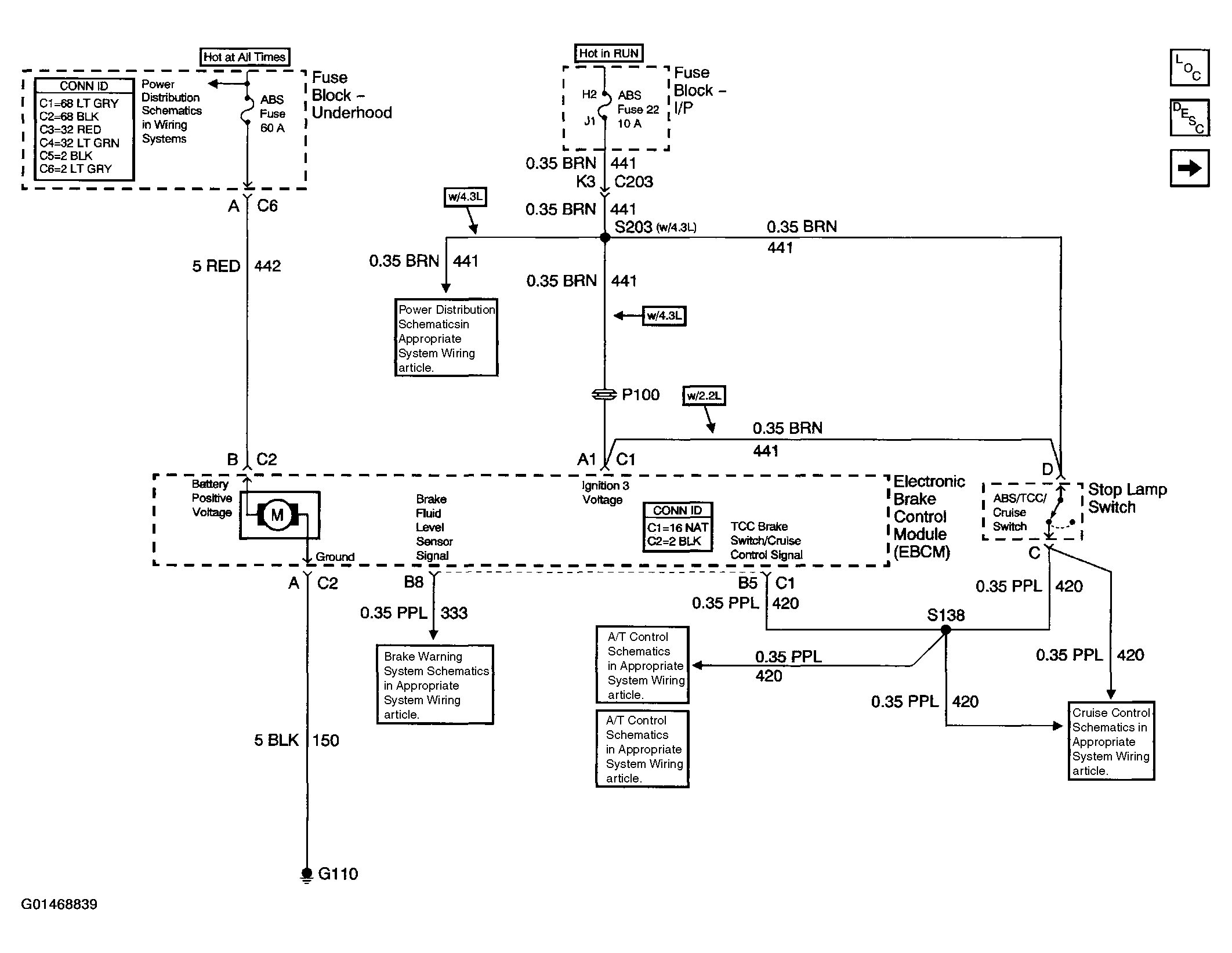

Fig 1: ABS Schematics Diagram (Power And Ground)

Courtesy of GENERAL MOTORS CORP.

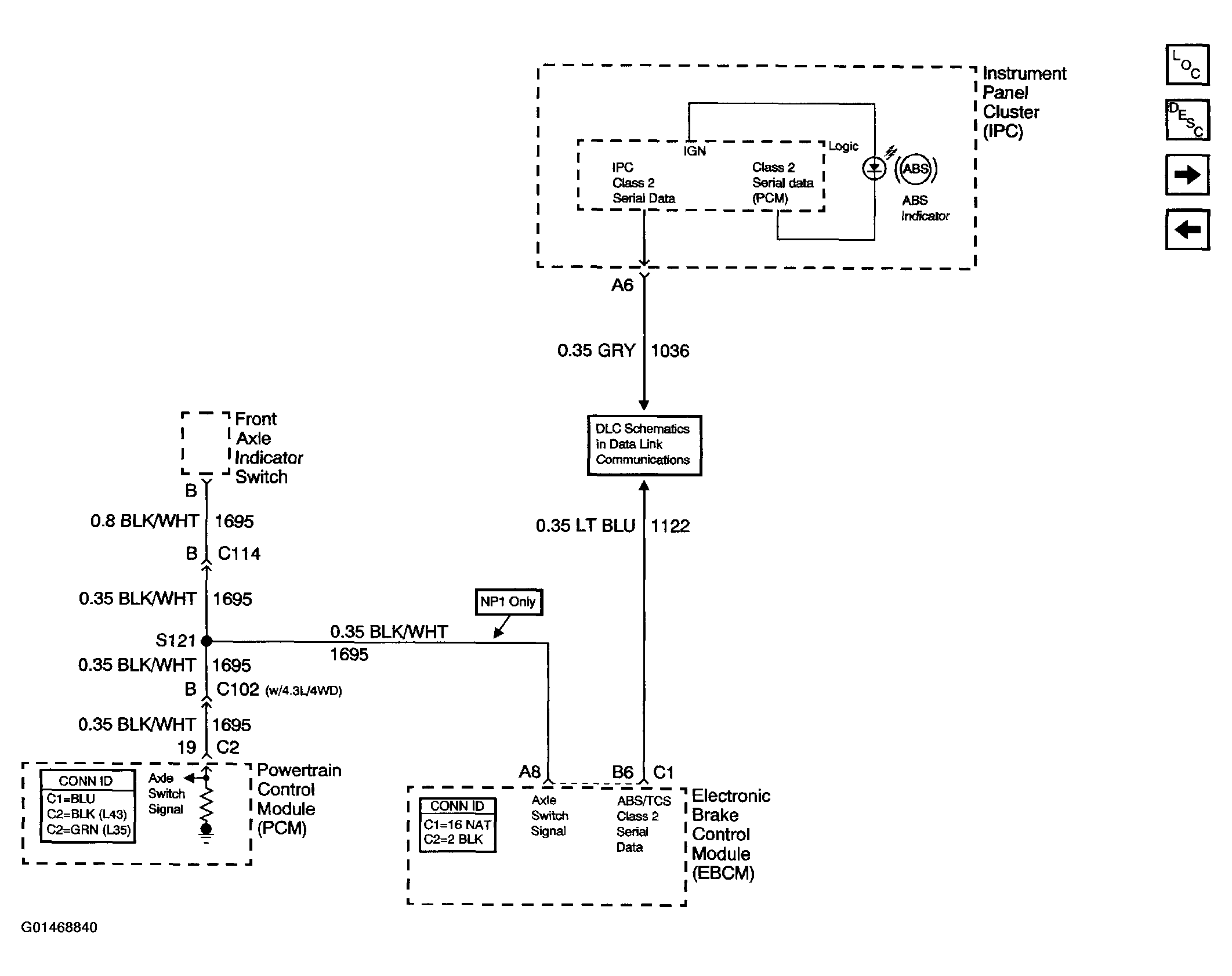

Fig 2: ABS Schematics Diagram (Class 2 Communication)

Courtesy of GENERAL MOTORS CORP.

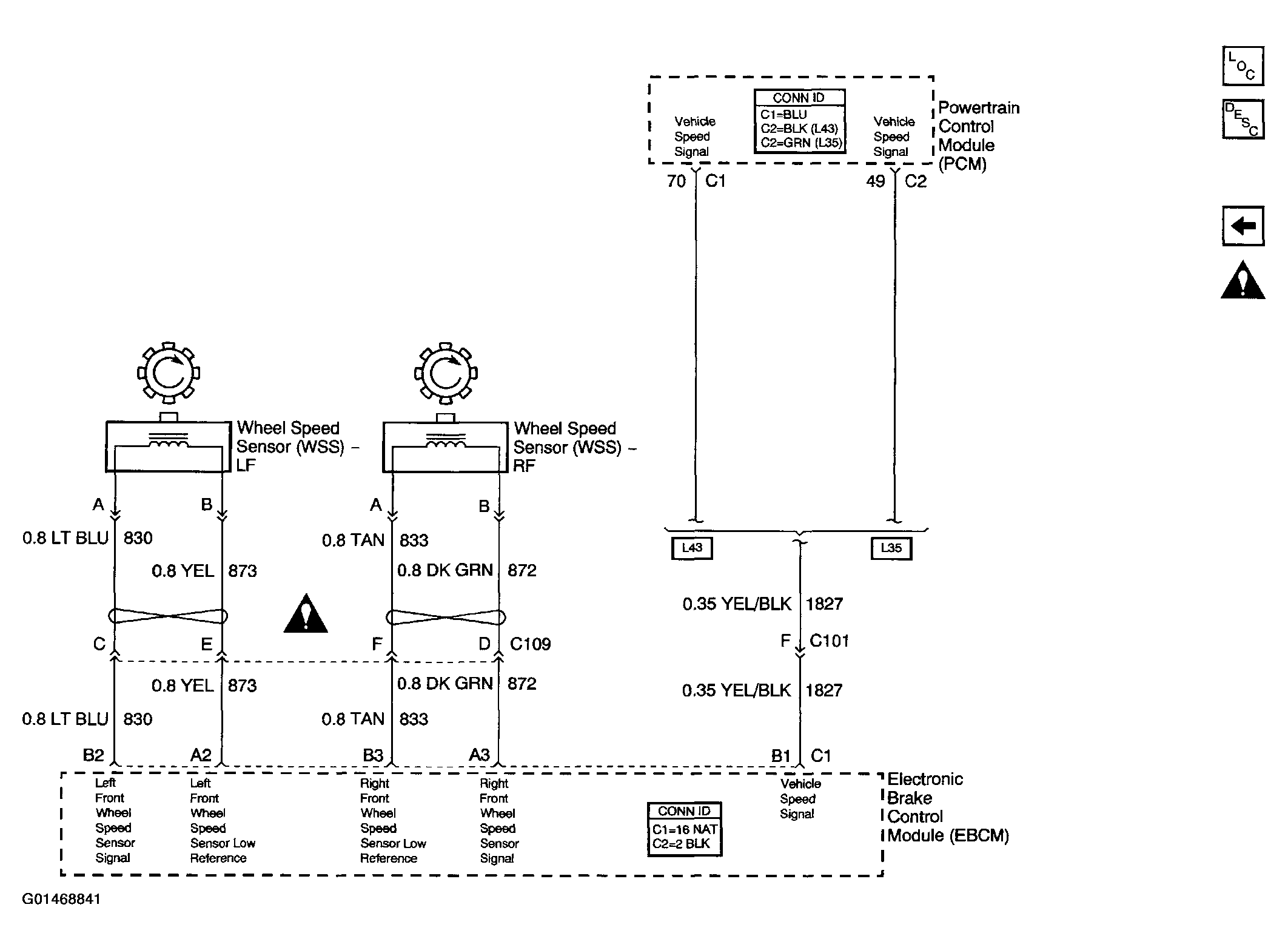

Fig 3: ABS Schematics Diagram (Speed Sensor Signals)

Courtesy of GENERAL MOTORS CORP.
