Test Description

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. This step tests for a shorted stoplamp switch.
  2. This step tests for an open stoplamp switch.

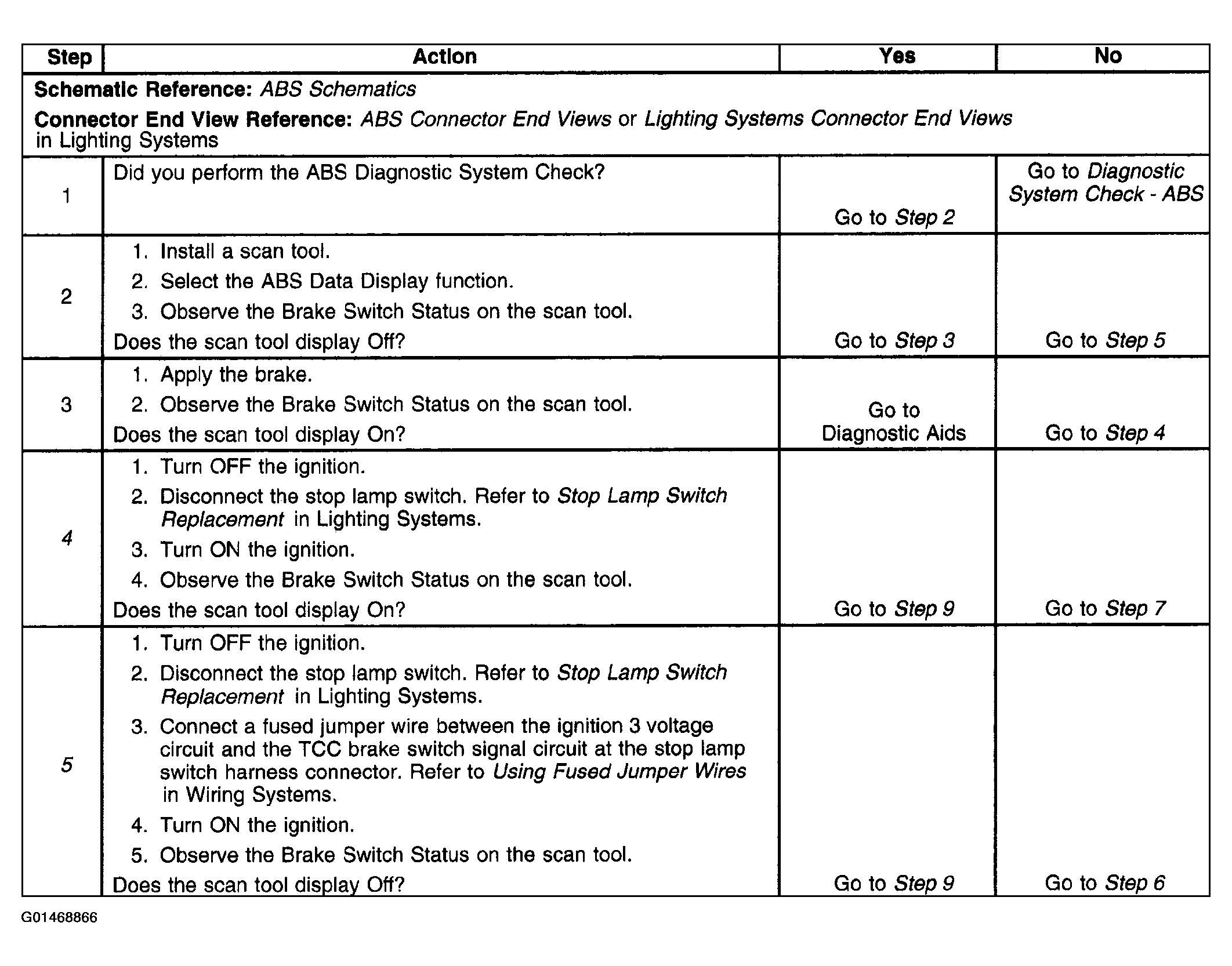

Fig 1: DTC C0281 - Diagnostic Procedure Table (Steps 1-5)
G01468866Courtesy of GENERAL MOTORS CORP.

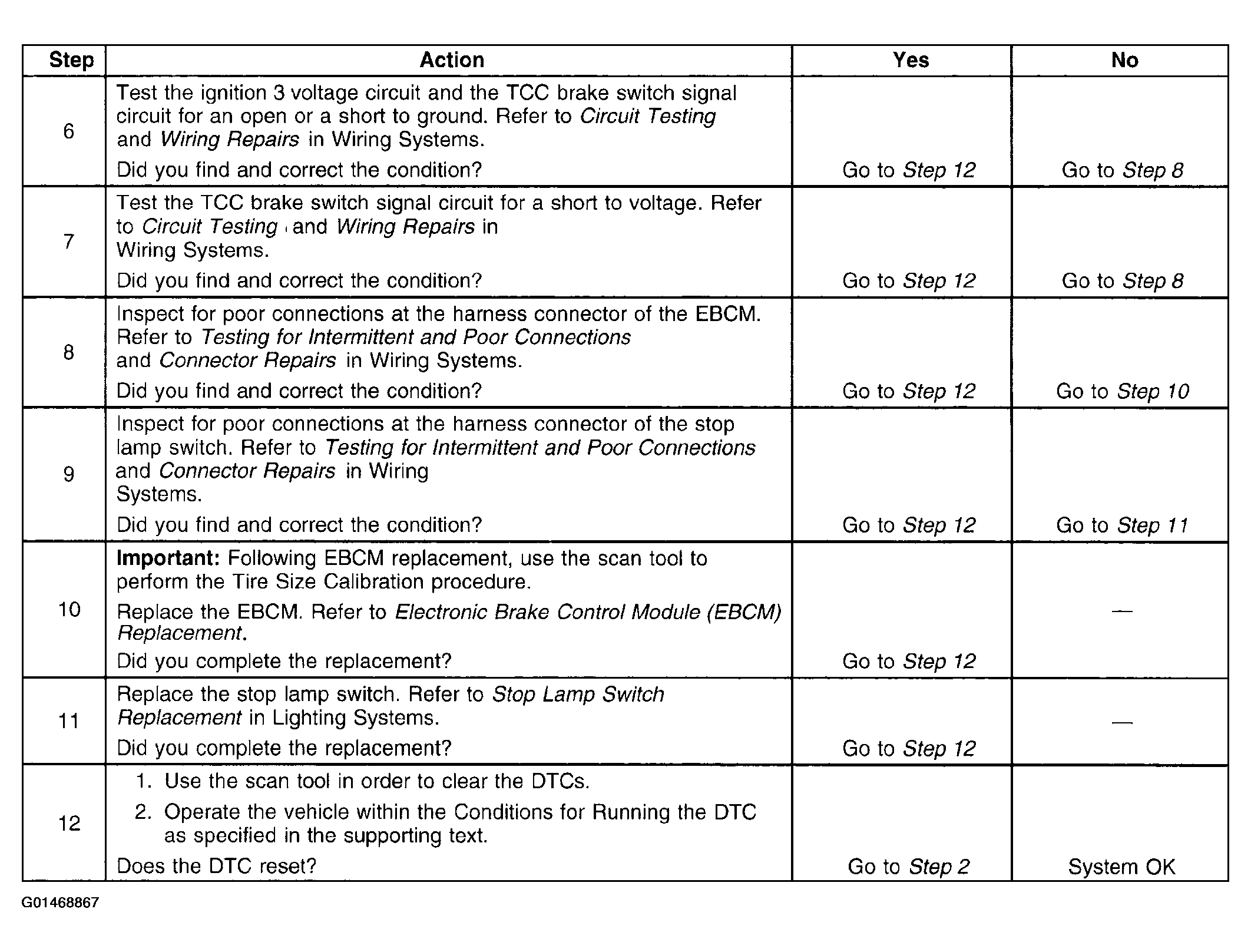

Fig 2: DTC C0281 - Diagnostic Procedure Table (Steps 6-12)
G01468867Courtesy of GENERAL MOTORS CORP.
