Test Description

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2. This step tests if the IPC is able to illuminate the ABS indicator during the bulb check.

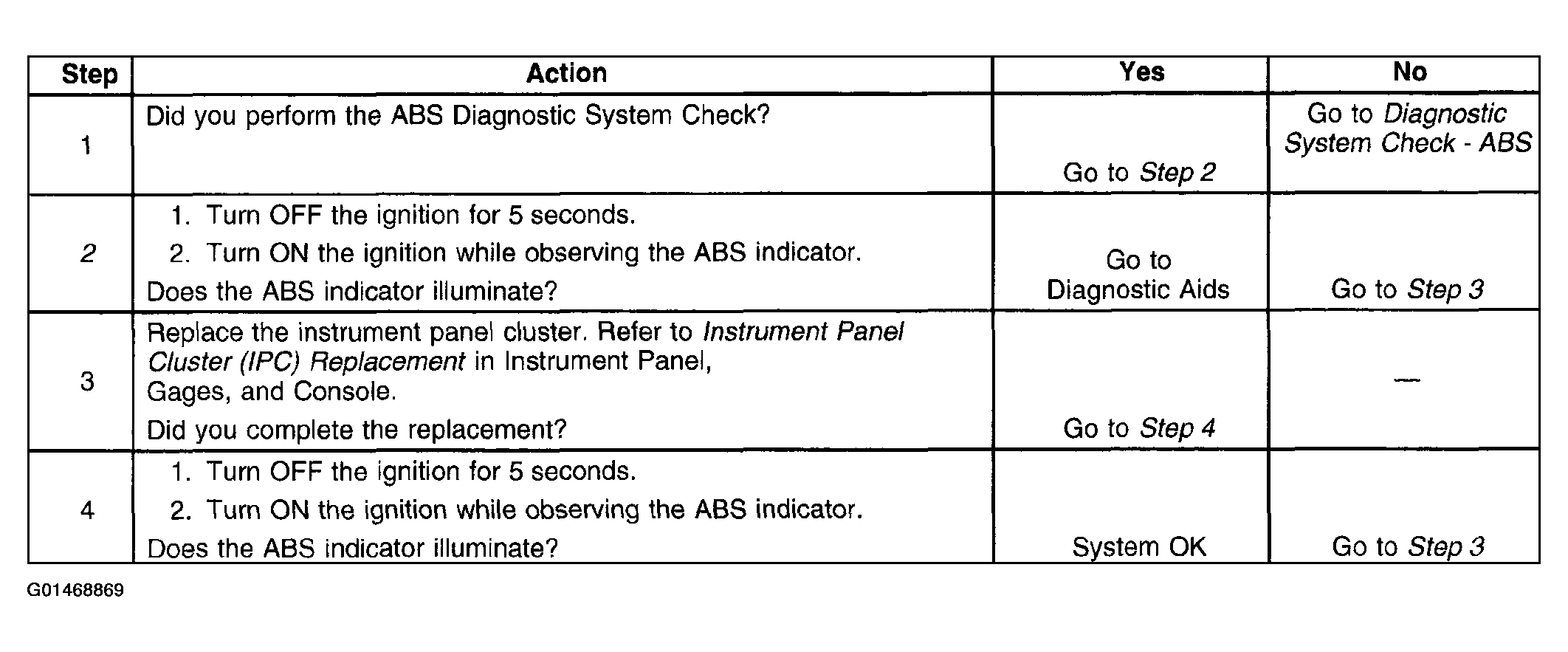

    Fig 1: ABS Indicator Inoperative - Diagnostic Procedure Table
    G01468869Courtesy of GENERAL MOTORS CORP.
