Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the transfer case shield. Refer to TRANSFER CASE SHIELD REPLACEMENT  .
  3. Remove the transfer case right rear speed sensor electrical connector.
  4. Remove the transfer case speed sensor.

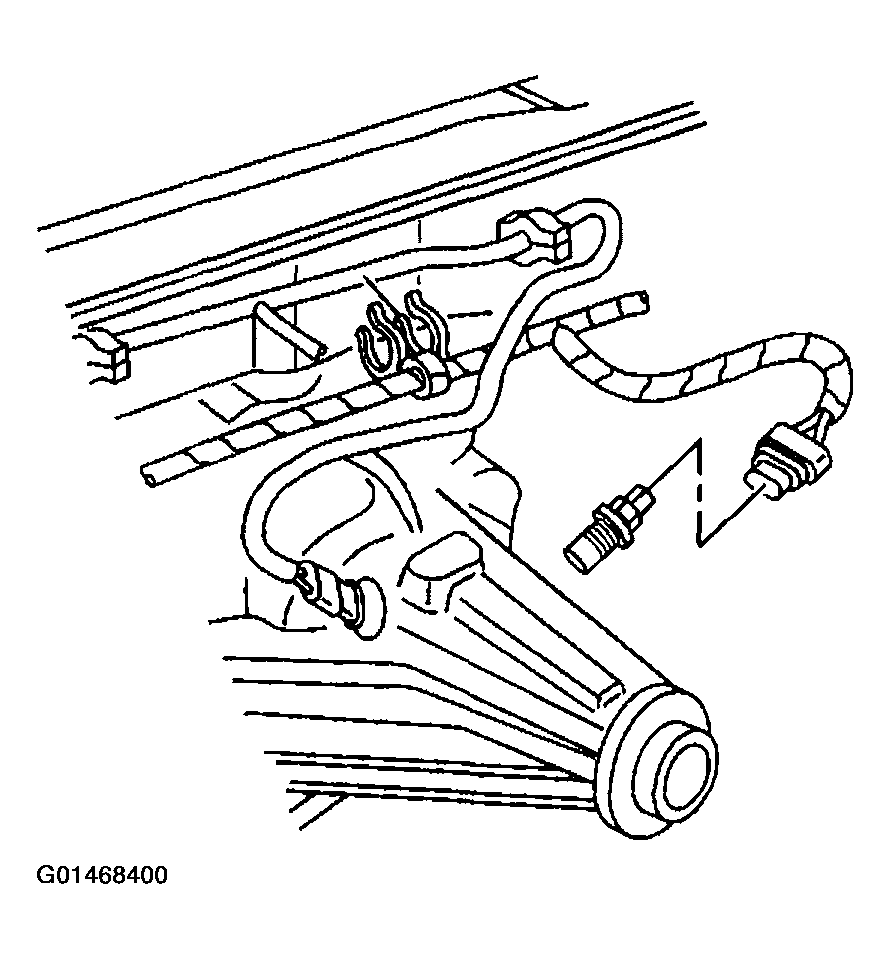

    Fig 1: Removing Transfer Case Right Rear Speed Sensor Electrical Connector
    G01468400Courtesy of GENERAL MOTORS CORP.
