Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a pocket crew driver between the control switch and the instrument panel.
  2. Using light pressure, pry the control switch from the instrument panel.
  3. Remove the control switch from the instrument panel.
  4. Remove the electrical connectors from the control switch.

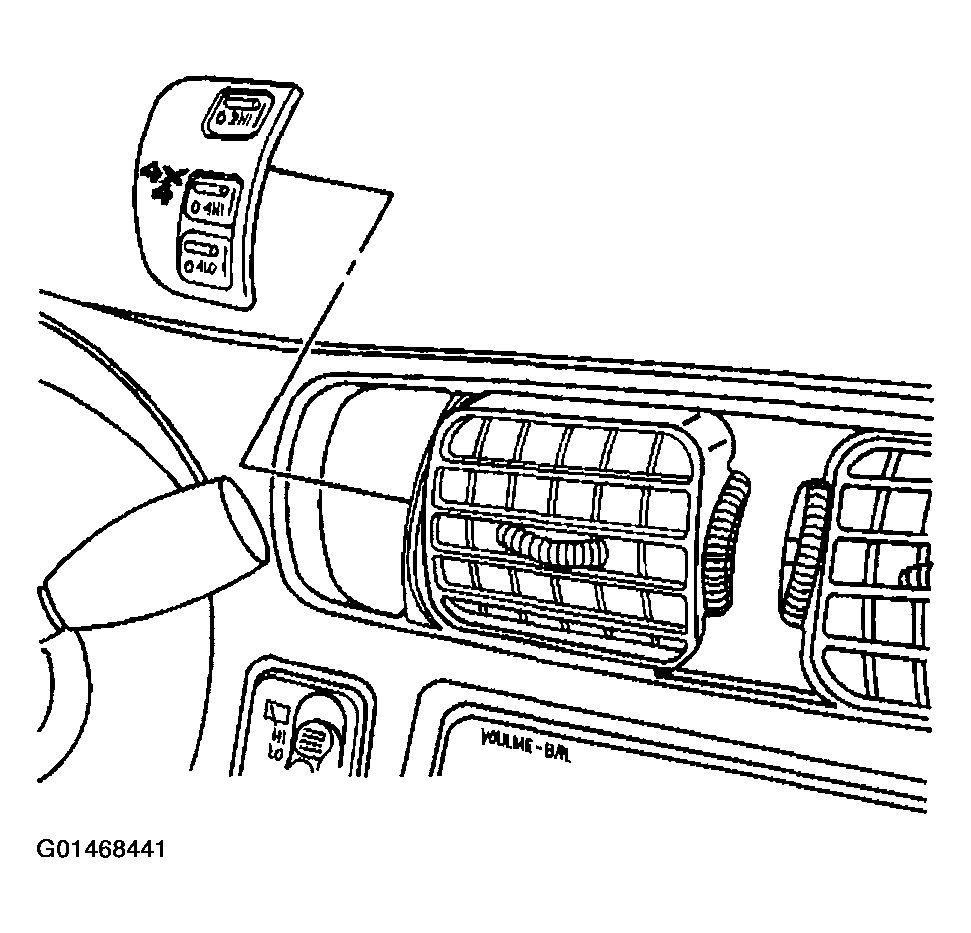

    Fig 1: Removing Control Switch From Instrument Panel
    G01468441Courtesy of GENERAL MOTORS CORP.
