Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the transfer case shield from the vehicle. Refer to TRANSFER CASE SHIELD REPLACEMENT .
  3. Remove the front propeller shaft from the transfer case. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
  4. Remove the transfer case front output shaft dust seal.

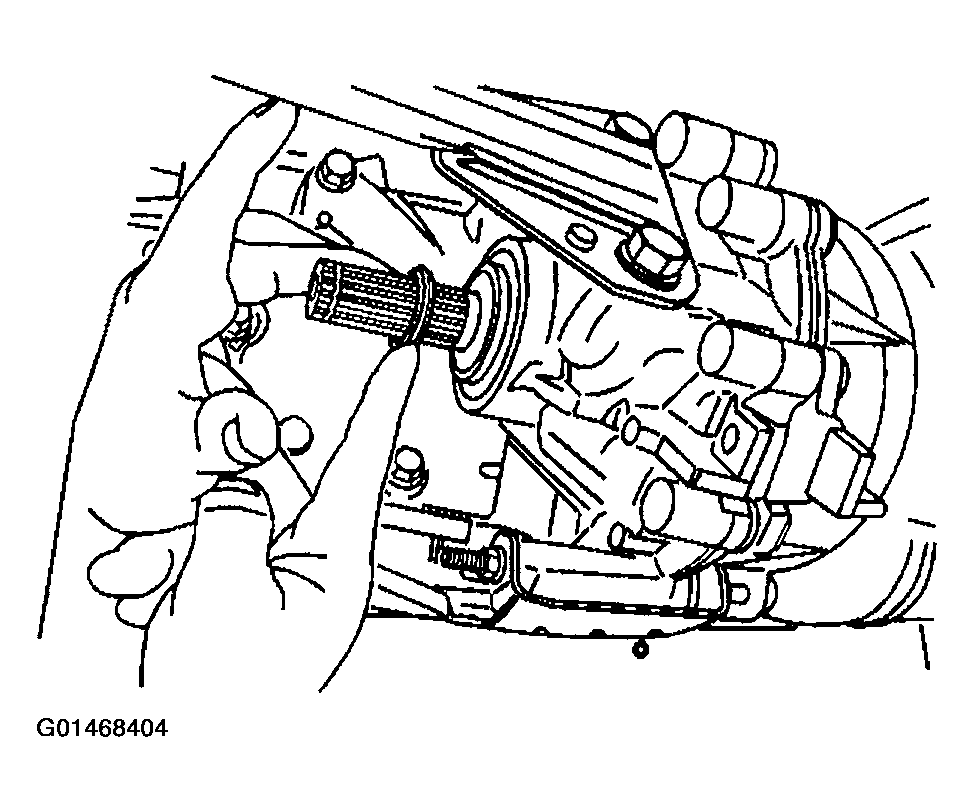

    Fig 1: Removing Transfer Case Front Output Shaft Seal
    G01468404Courtesy of GENERAL MOTORS CORP.
  5. Remove the transfer case front output shaft seal.

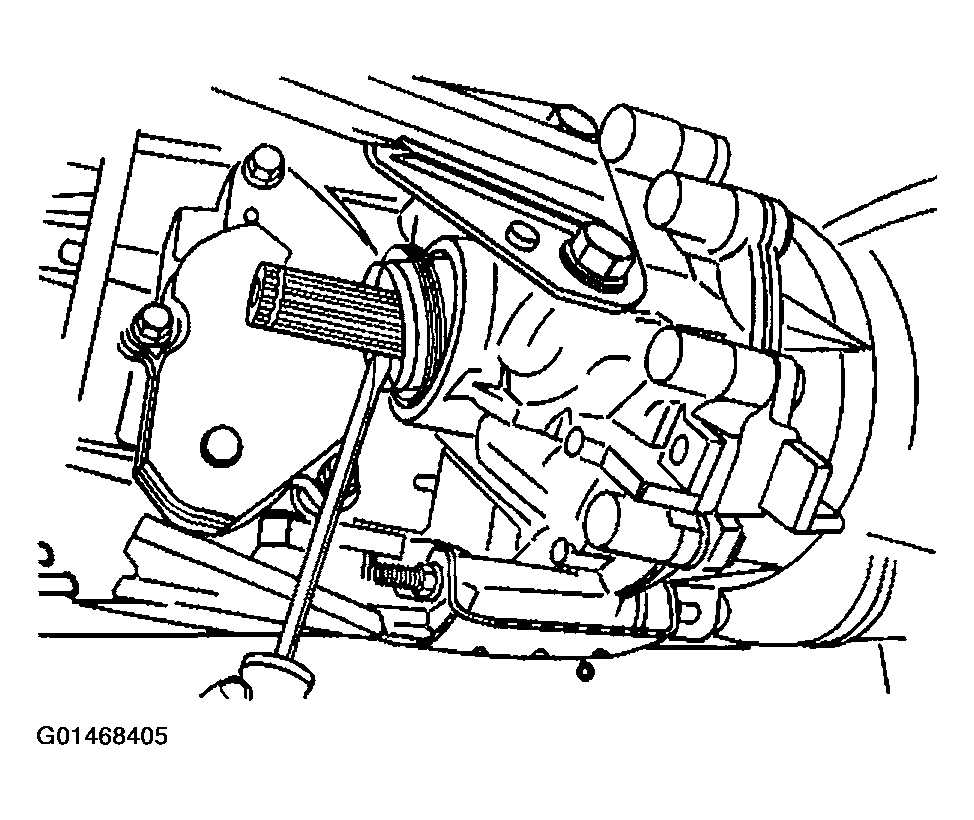

    Fig 2: Installing Transfer Case Front Output Shaft Seal
    G01468405Courtesy of GENERAL MOTORS CORP.
