Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the transfer case drain plug.

    Tighten

    Tighten the transfer case drain plug to 20 N.m (15 lb ft).

  2. Fill the transfer case with the proper amount of approved fluid. Refer to CAPACITIES - APPROXIMATE FLUID  .

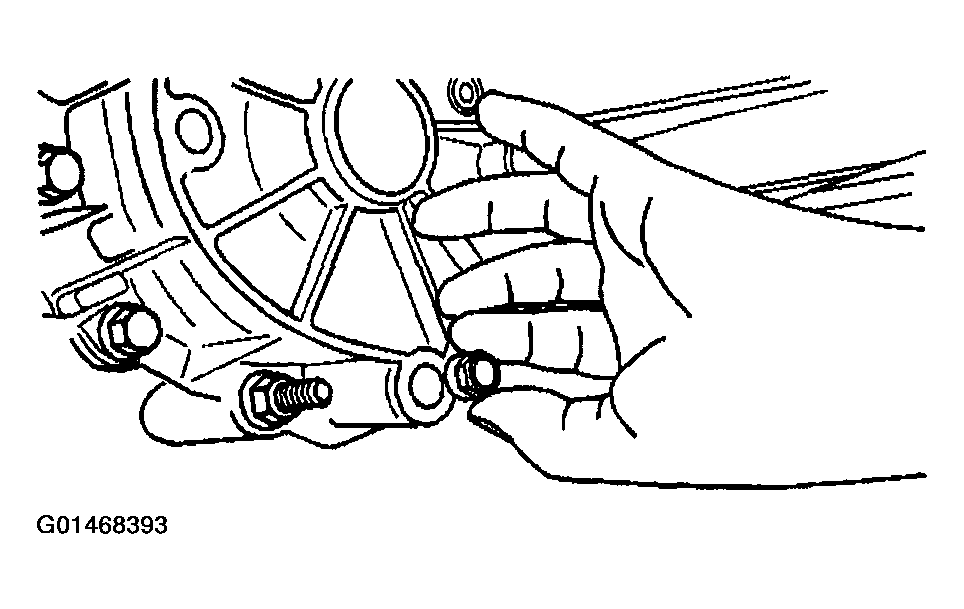

    Fig 1: Installing Transfer Case Drain Plug
    G01468393Courtesy of GENERAL MOTORS CORP.
  3. Install the transfer case fill plug.

    Tighten

    Tighten the oil fill plug to 20 N.m (15 lb ft).

  4. Install the transfer case shield to the vehicle. Refer to TRANSFER CASE SHIELD REPLACEMENT  .
  5. Lower the vehicle. Refer to JACKING AND LIFTING in General Information.

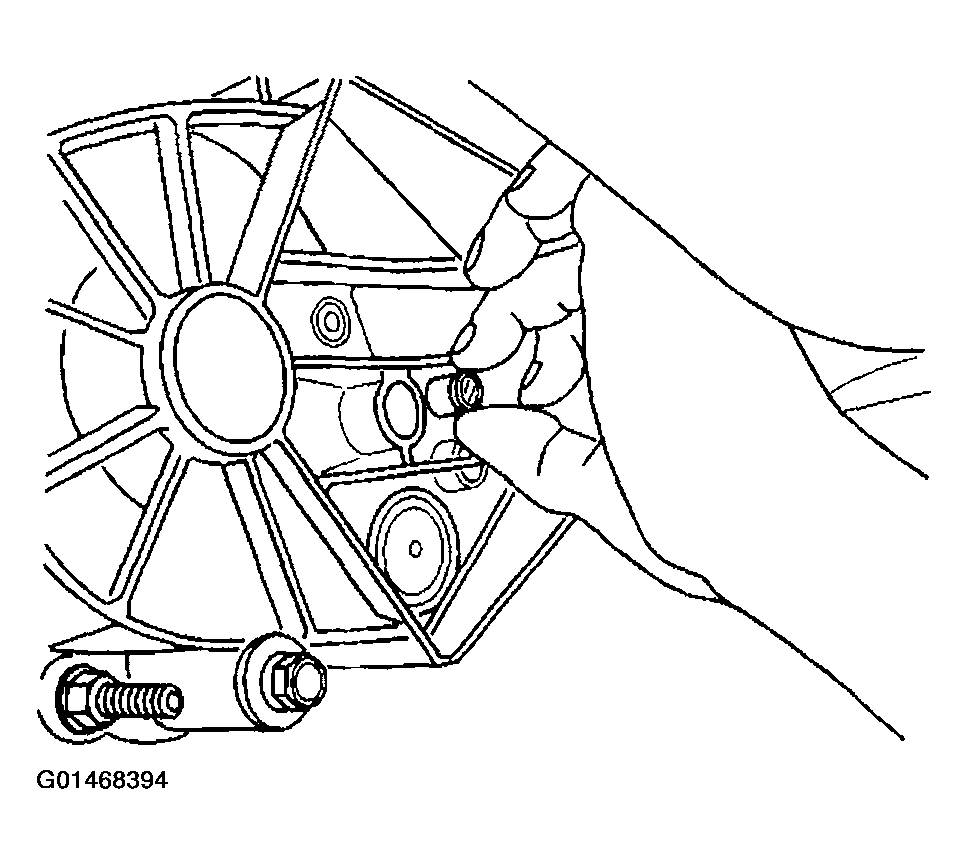

    Fig 2: Installing Transfer Case Fill Plug
    G01468394Courtesy of GENERAL MOTORS CORP.
