Transfer Case Control Schematics (Power and Ground)

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

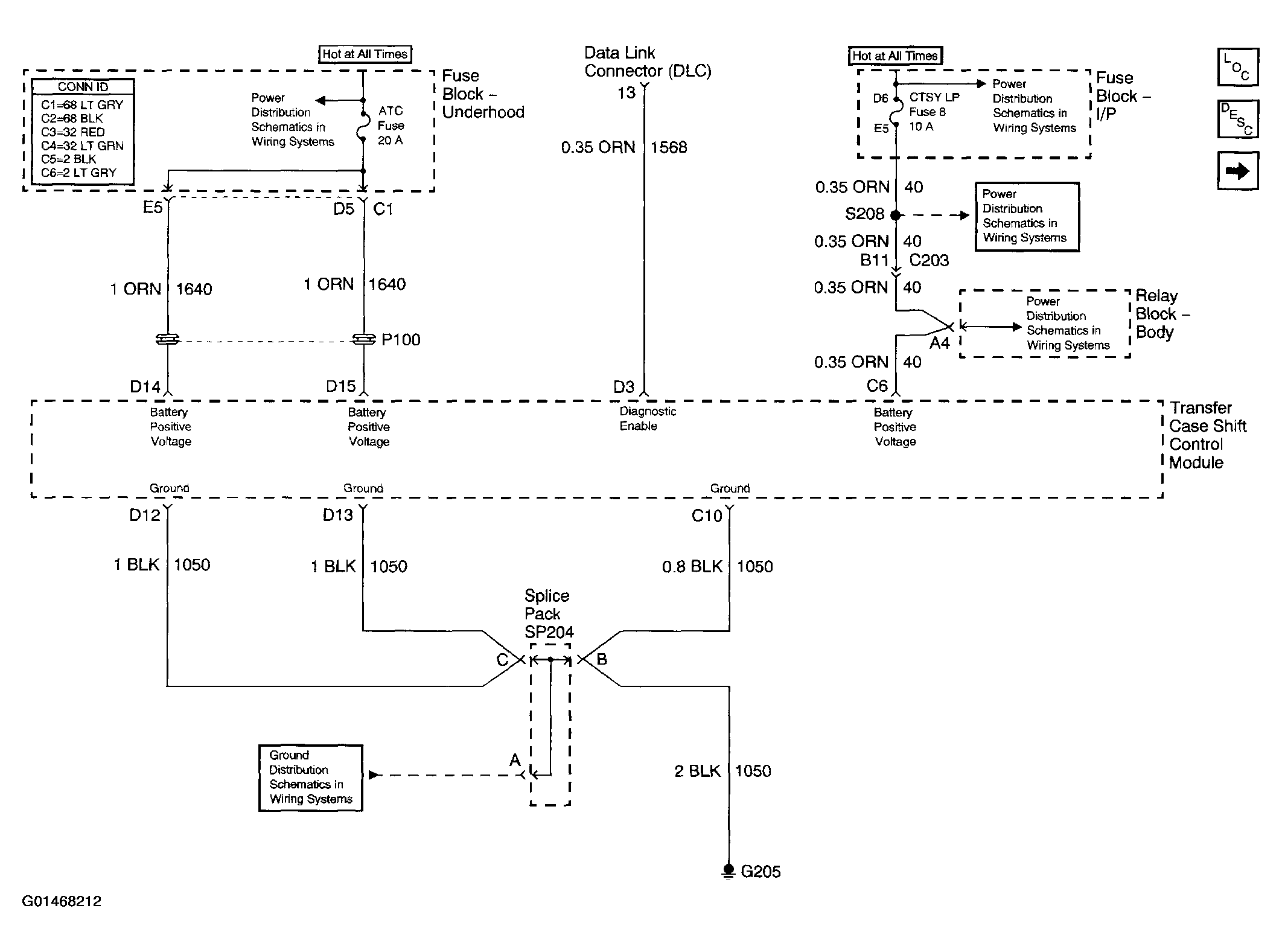

Fig 1: Transfer Case Control Schematics (Power and Ground)

Courtesy of GENERAL MOTORS CORP.

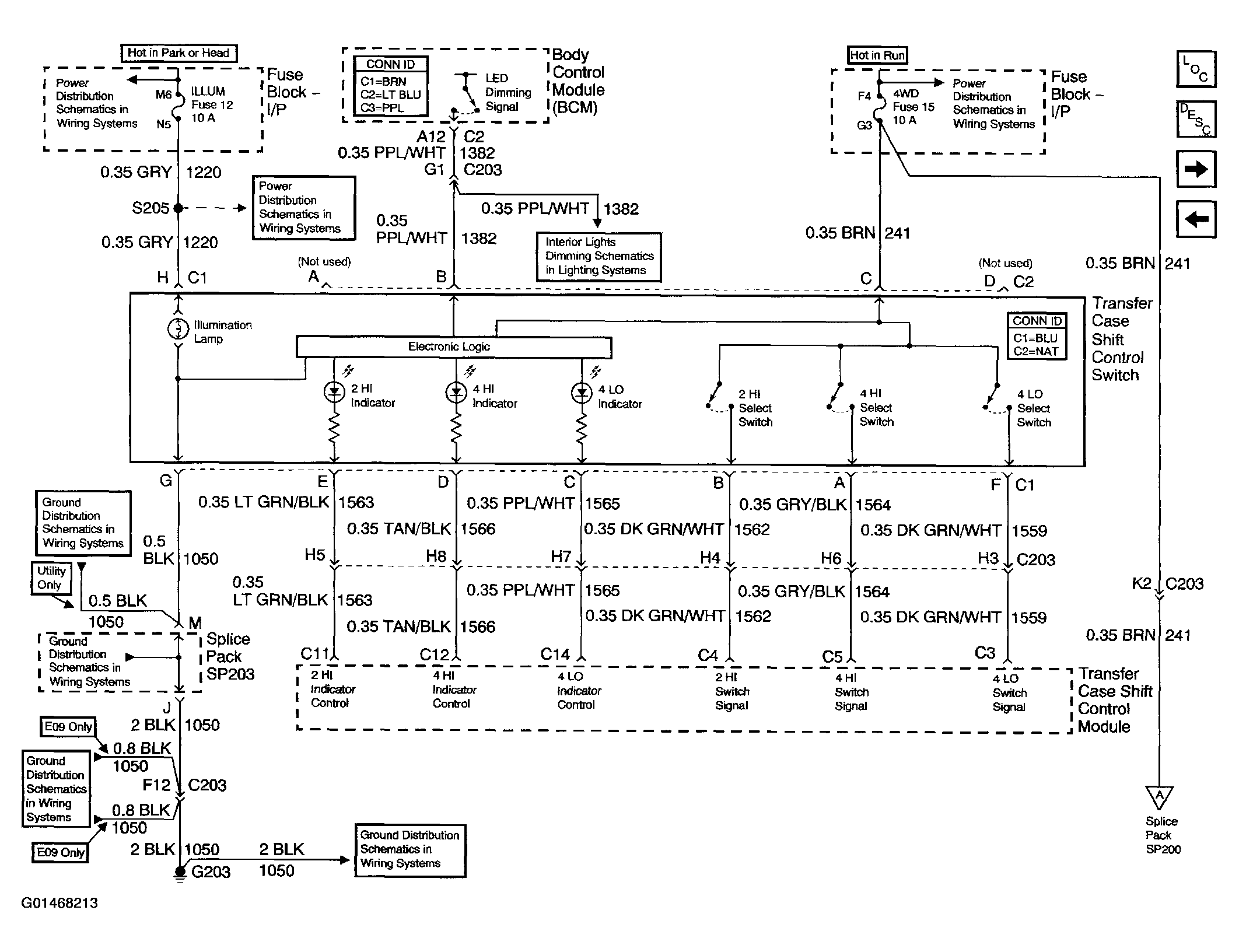

Fig 2: Transfer Case Control Schematics (Transfer Case Shift Control Switch)

Courtesy of GENERAL MOTORS CORP.

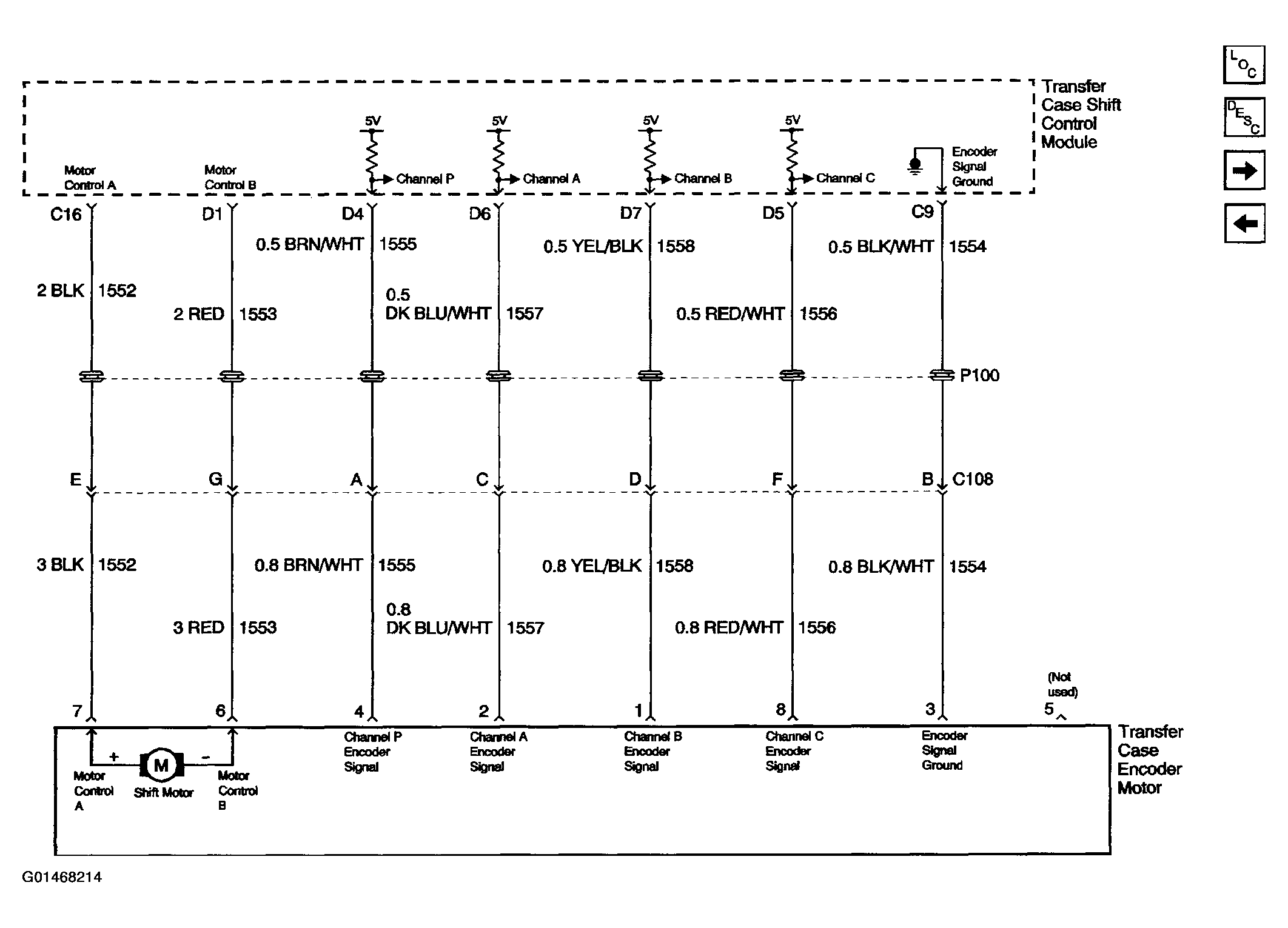

Fig 3: Transfer Case Control Schematics (Transfer Case Encoder Motor)

Courtesy of GENERAL MOTORS CORP.

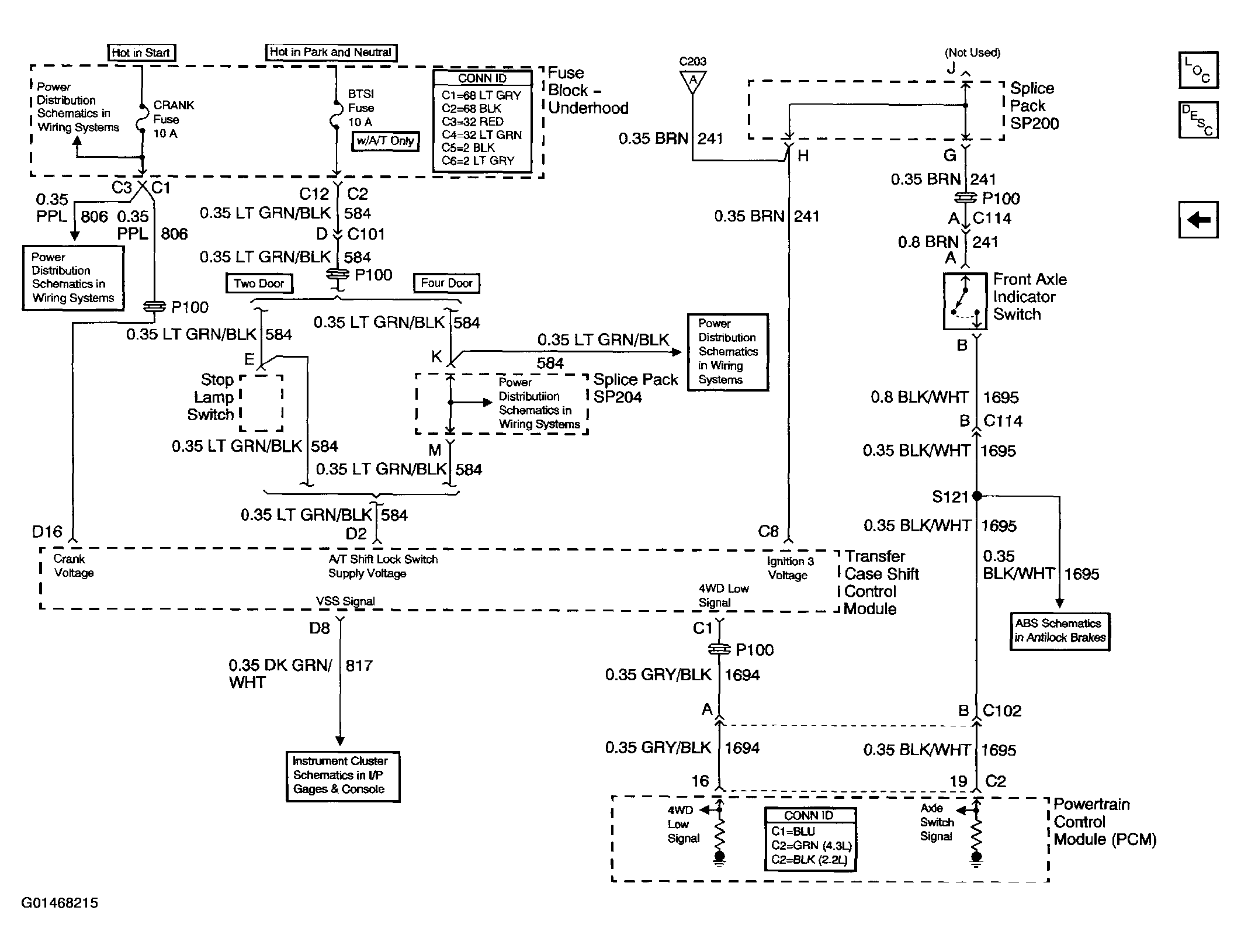

Fig 4: Transfer Case Control Schematics (Front Axle Indicator Switch and Powertrain Control Module (PCM))

Courtesy of GENERAL MOTORS CORP.
