Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the transfer case shield. Refer to TRANSFER CASE SHIELD REPLACEMENT  .

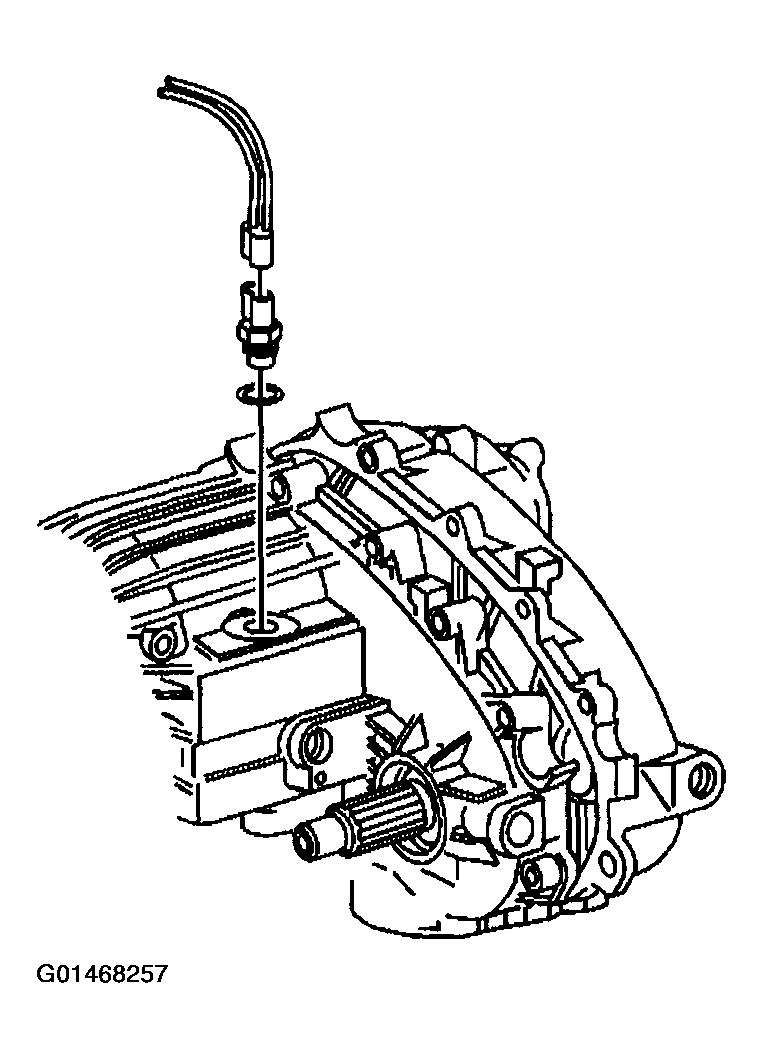

    Fig 1: Removing Transfer Case Vacuum Switch Vacuum Line
    G01468257Courtesy of GENERAL MOTORS CORP.
  3. Remove the transfer case brace, if equipped.
  4. Remove the vacuum line for the transfer case vacuum switch.
  5. Remove the transfer case vacuum switch.

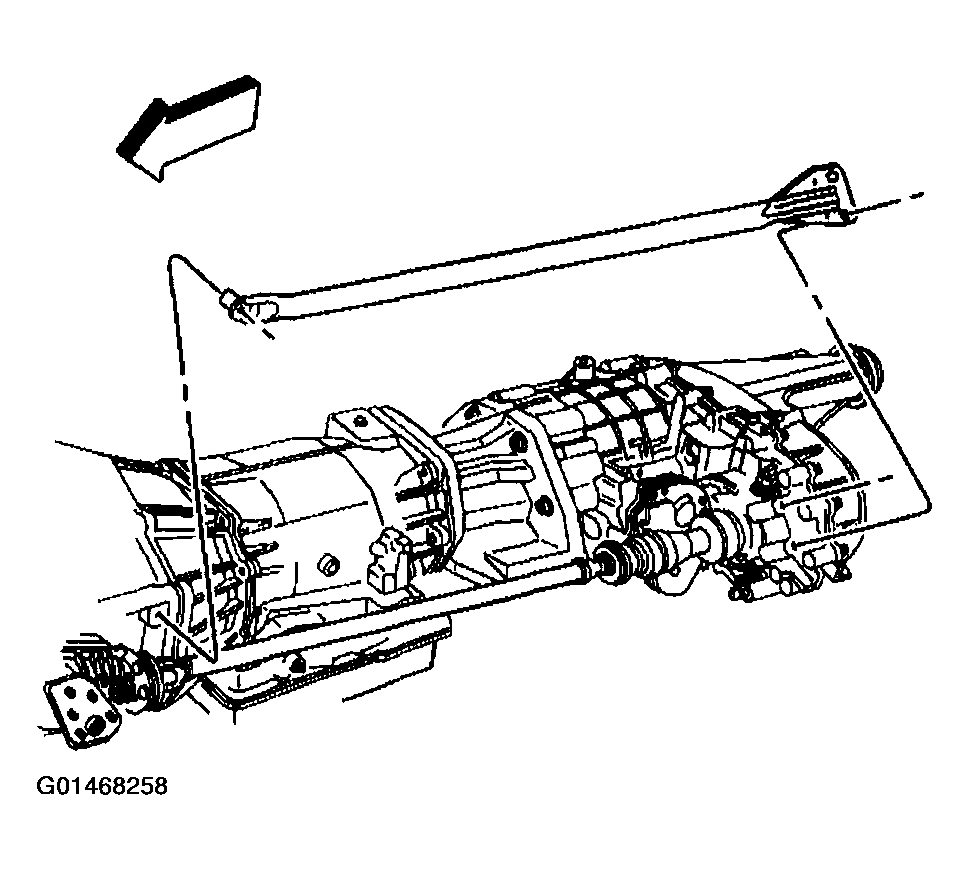

    Fig 2: Removing Transfer Case Brace
    G01468258Courtesy of GENERAL MOTORS CORP.
