Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information
  2. Remove the transfer case shield. Refer to TRANSFER CASE SHIELD REPLACEMENT  .
  3. Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
  4. Remove the transfer case speed sensor electrical connector.

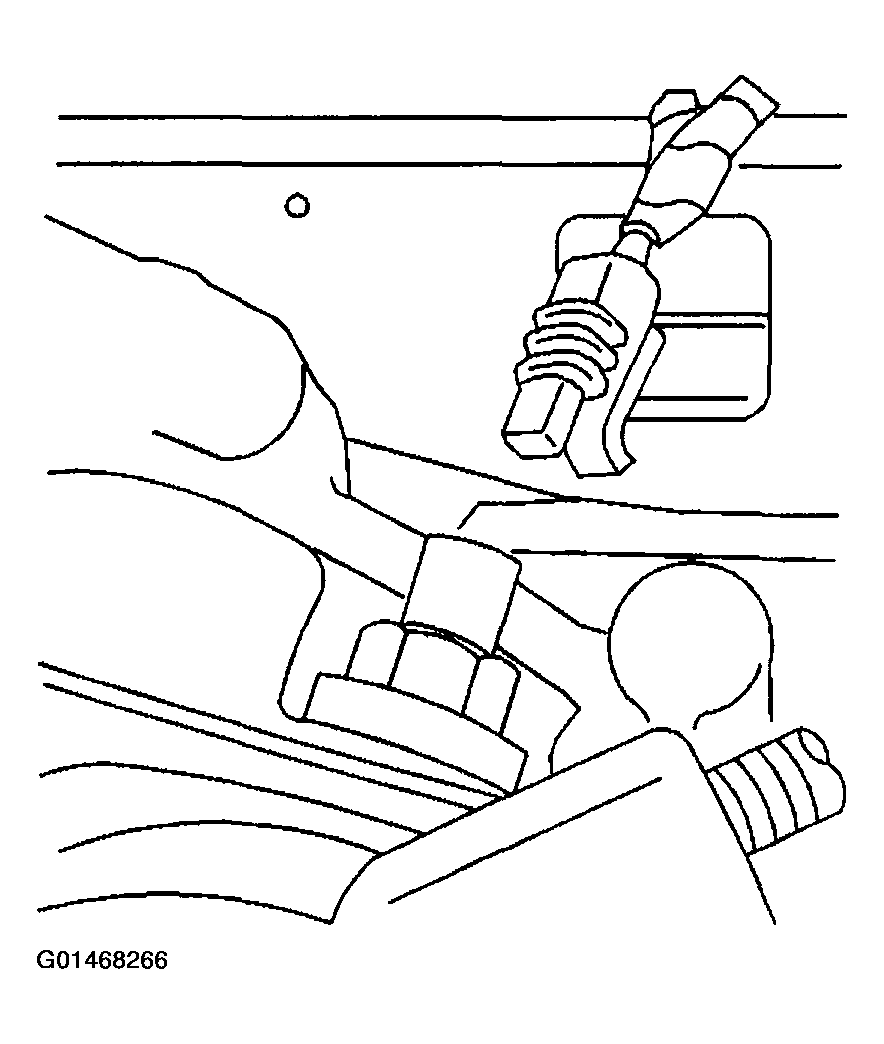

    Fig 1: Removing Transfer Case Speed Sensor Electrical Connector
    G01468266Courtesy of GENERAL MOTORS CORP.
  5. Remove the transfer case speed sensor.

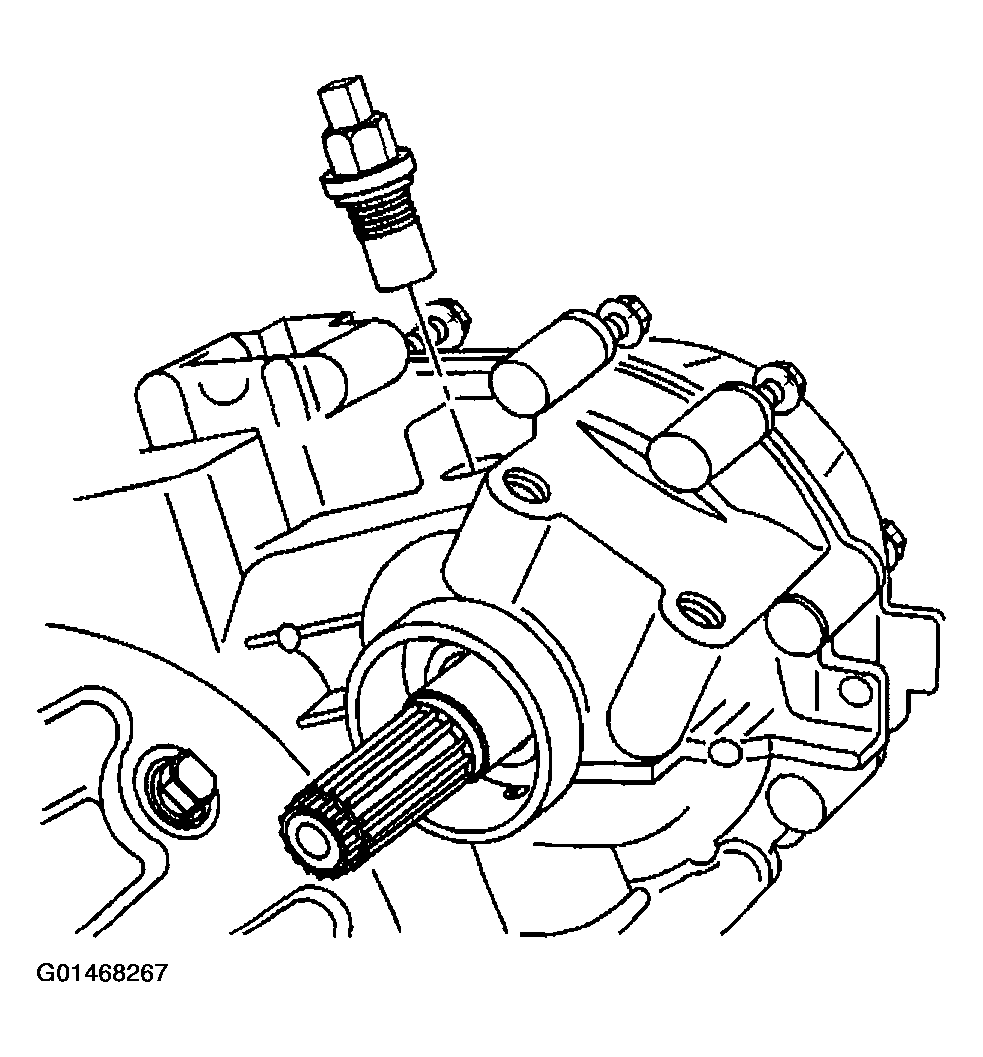

    Fig 2: Removing Transfer Case Speed Sensor
    G01468267Courtesy of GENERAL MOTORS CORP.
