Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the transfer case speed sensor.

    Tighten

    Tighten the transfer case speed sensor to 15 N.m (11 lb ft).

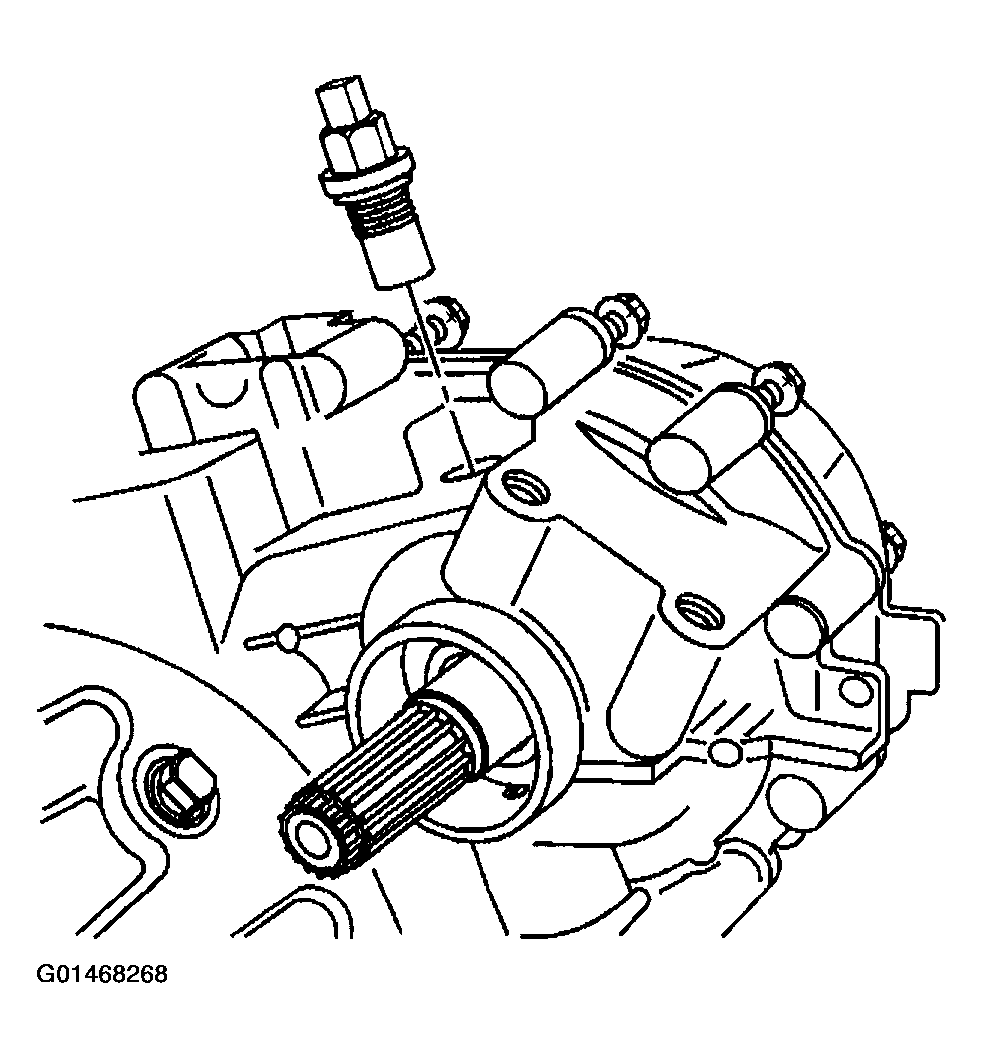

    Fig 1: Installing Transfer Case Speed Sensor
    G01468268Courtesy of GENERAL MOTORS CORP.
  2. Install the transfer case speed sensor electrical connector.
  3. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
  4. Install the transfer case shield to the vehicle. Refer to TRANSFER CASE SHIELD REPLACEMENT  .
  5. Lower the vehicle. Refer to JACKING AND LIFTING in General Information.

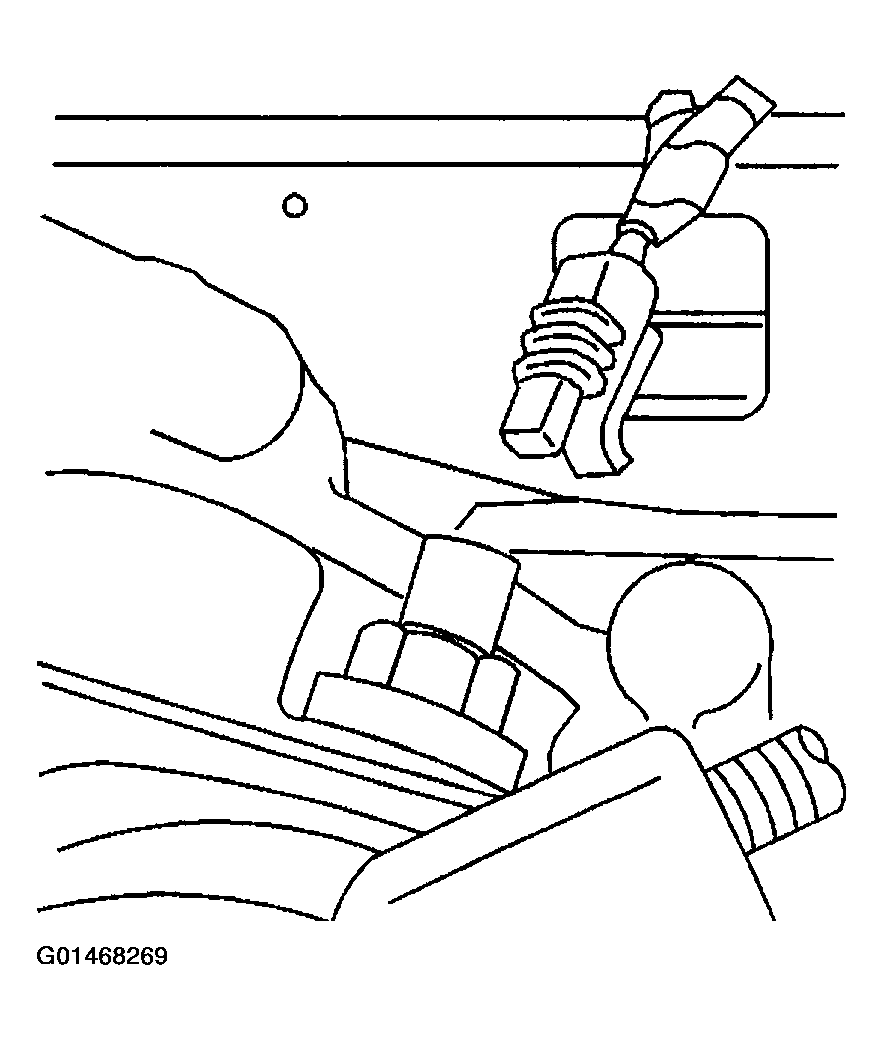

    Fig 2: Installing Transfer Case Speed Sensor Electrical Connector
    G01468269Courtesy of GENERAL MOTORS CORP.
