Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important:  When installing the control switch, a snap should be felt or heard when it is properly seated.

  1. Install the electrical connectors in the transfer case control switch.
  2. Install the automatic transfer case switch into the instrument panel.

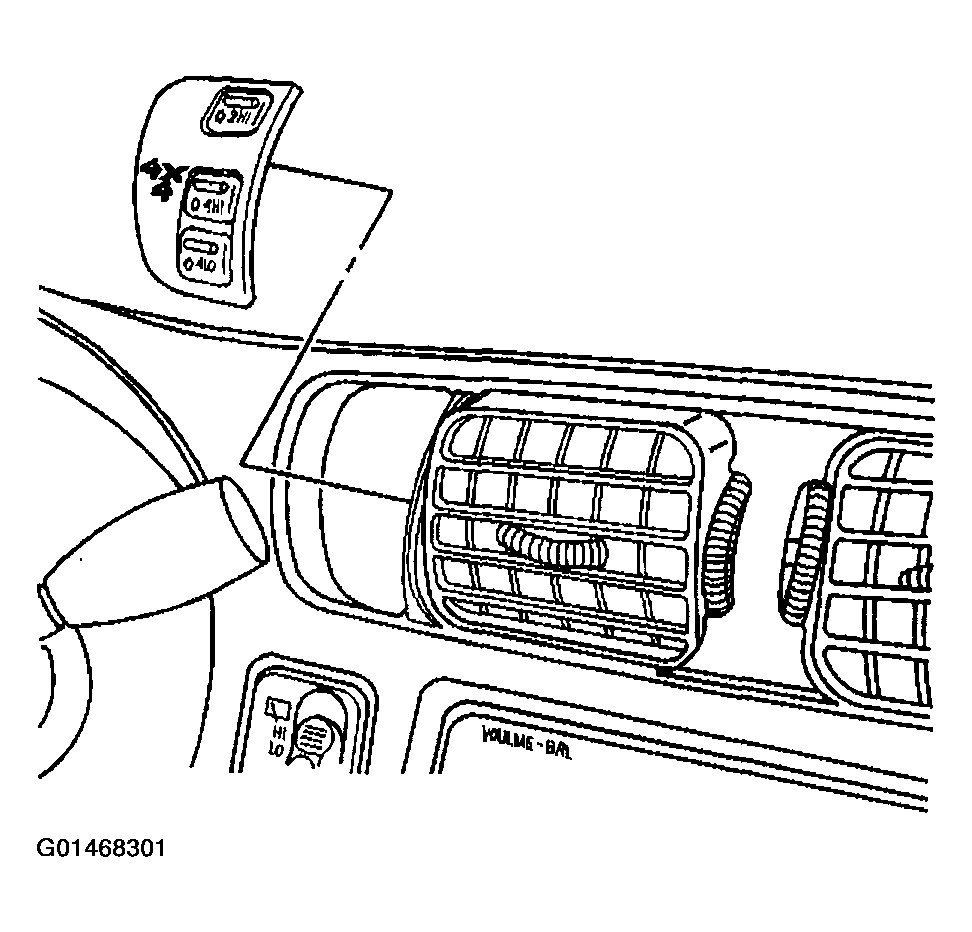

    Fig 1: Installing Transfer Case Shift Control Switch
    G01468301Courtesy of GENERAL MOTORS CORP.
