Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transfer case shield to the cross member.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the transfer case shield mounting bolts.

    Tighten

    Tighten the transfer case mounting bolts to 33 N.m (24 lb ft).

  3. Lower the vehicle. Refer to JACKING AND LIFTING in General information.

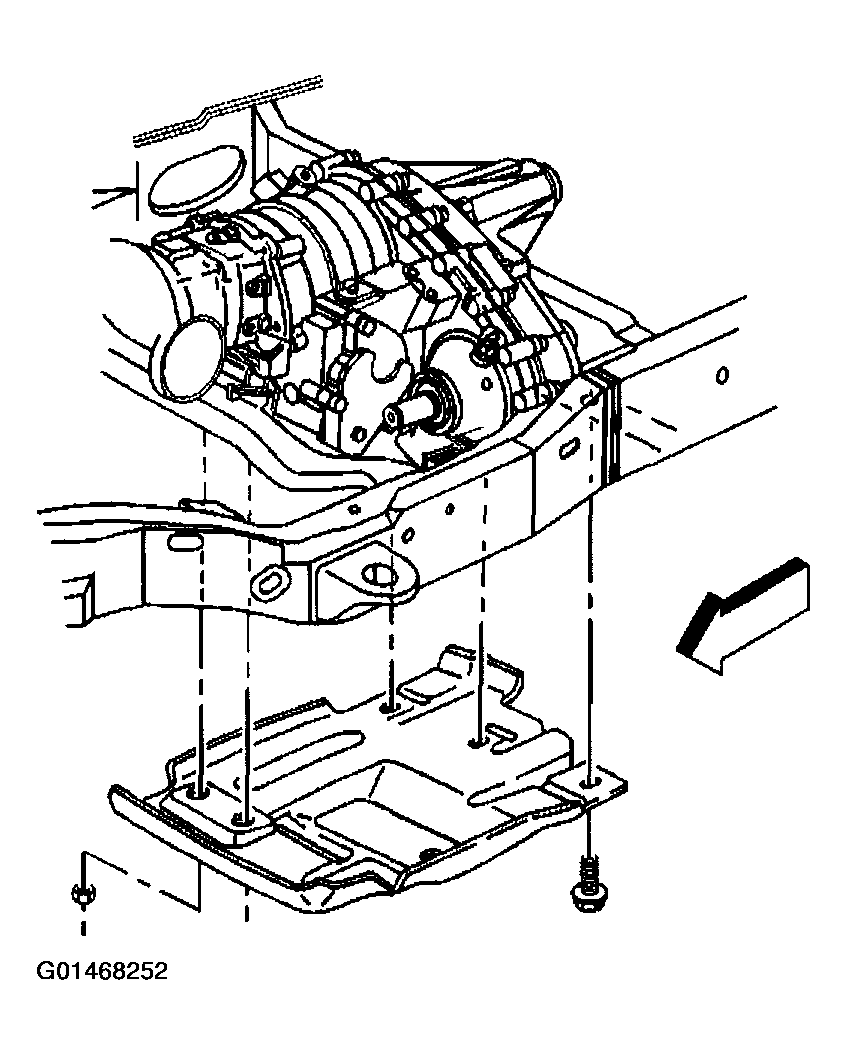

    Fig 1: Installing Transfer Case Shield
    G01468252Courtesy of GENERAL MOTORS CORP.
