Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front output shaft seal.
  2. Using the J 33843  , install the front output shaft seal.

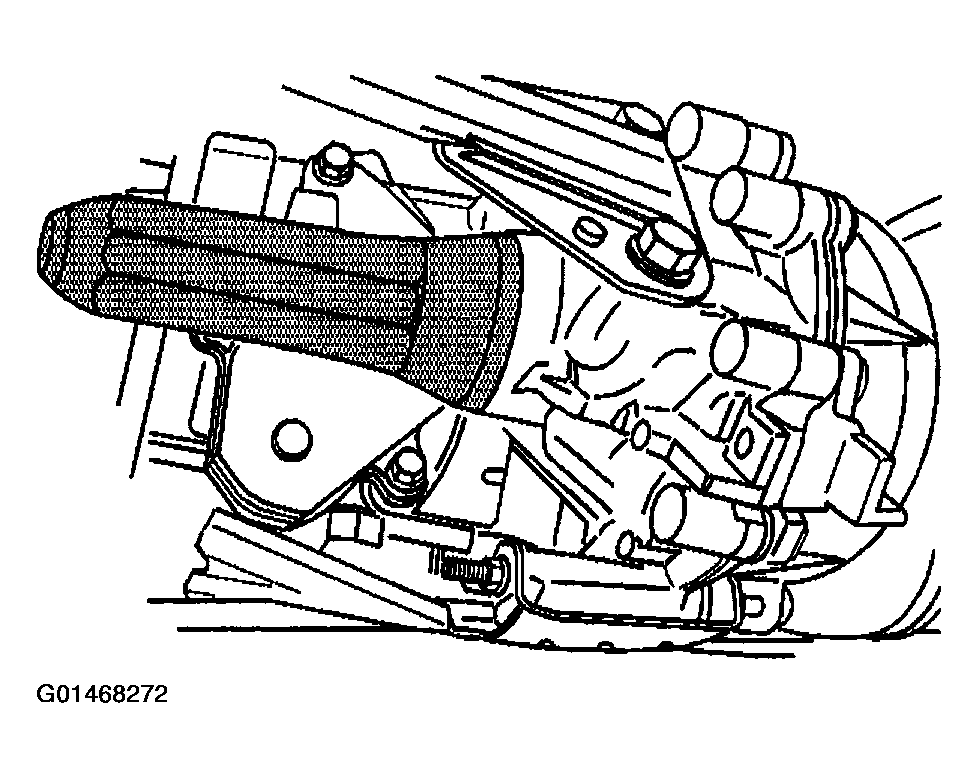

    Fig 1: Installing Front Output Shaft Seal
    G01468272Courtesy of GENERAL MOTORS CORP.
  3. Install the output shaft retaining ring.
  4. Install the dust seal on the front output shaft.
  5. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
  6. Check the transfer case fluid level. Refer to TRANSFER CASE FLUID REPLACEMENT  .
  7. Install the transfer case shield. Refer to TRANSFER CASE SHIELD REPLACEMENT  .
  8. Lower the vehicle. Refer to JACKING AND LIFTING in General Information.

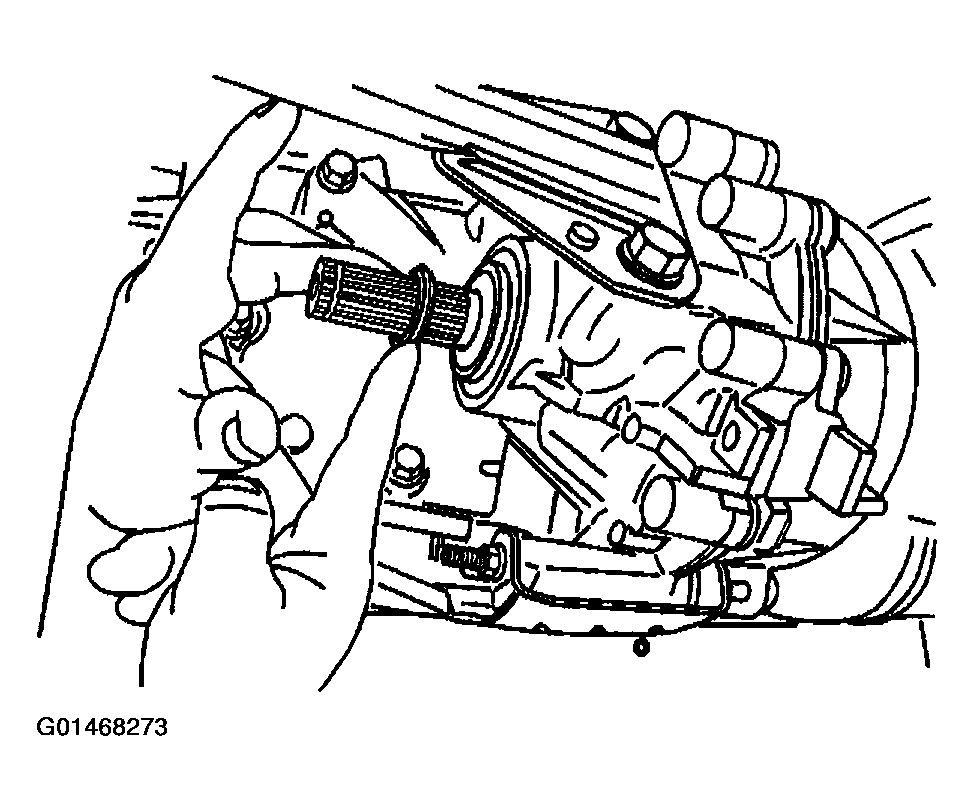

    Fig 2: Installing Output Shaft Retaining Ring
    G01468273Courtesy of GENERAL MOTORS CORP.
