Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the transfer case shield. Refer to TRANSFER CASE SHIELD REPLACEMENT  .

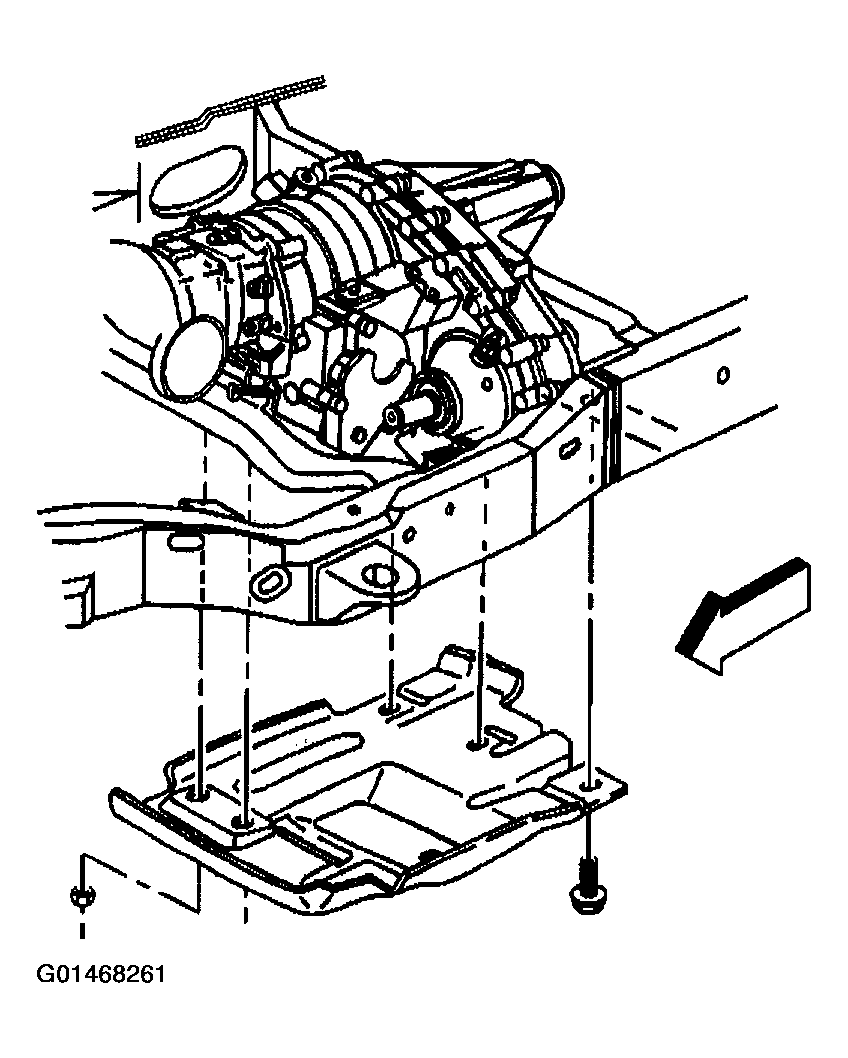

    Fig 1: Removing Transfer Case Shield
    G01468261Courtesy of GENERAL MOTORS CORP.
  3. Remove the motor/encoder electrical connector.

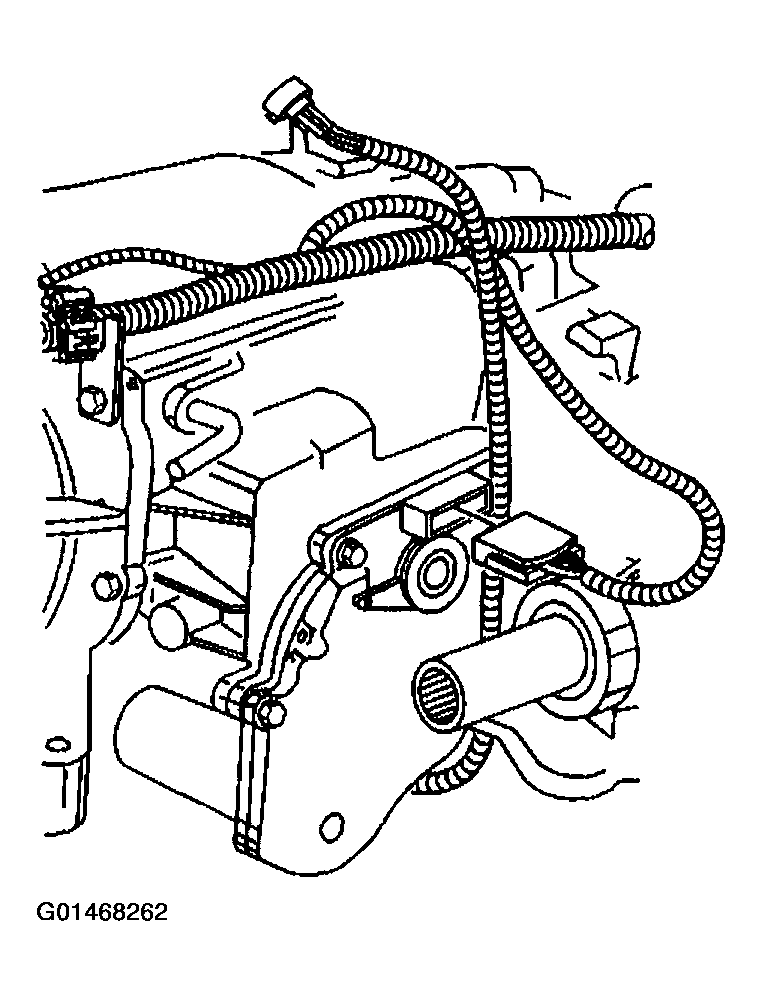

    Fig 2: Removing Motor/Encoder Electrical Connector
    G01468262Courtesy of GENERAL MOTORS CORP.
  4. Remove the motor/encoder mounting bolts.
  5. Remove the motor/encoder assembly.
  6. Remove the motor/encoder gasket.

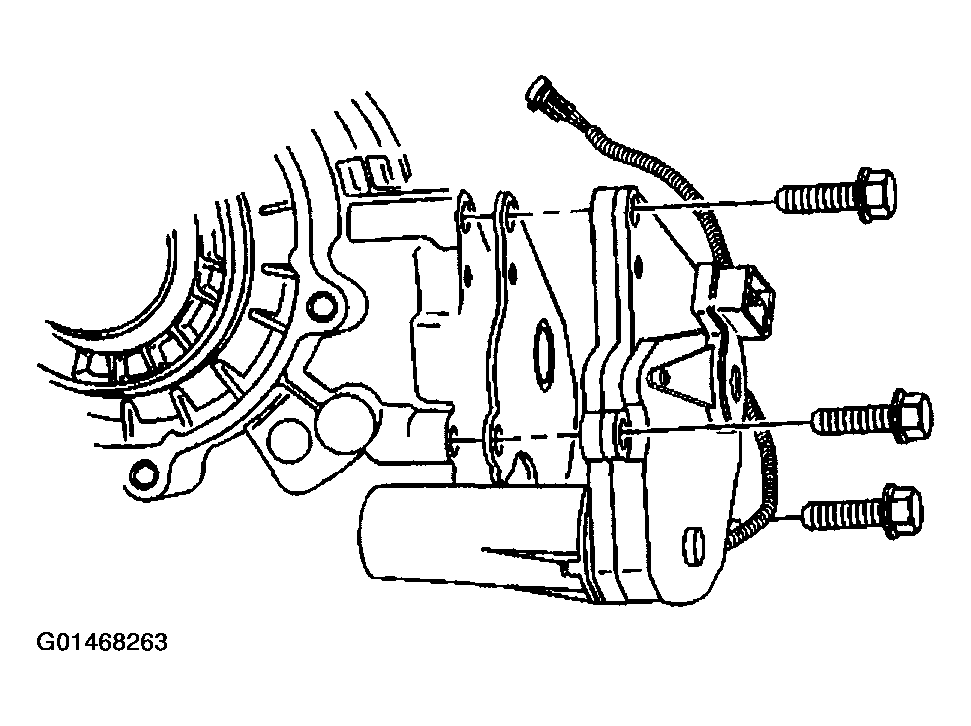

    Fig 3: Removing Motor/Encoder Mounting Bolts
    G01468263Courtesy of GENERAL MOTORS CORP.
