Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do not reuse the old gasket if it is damaged, replaced it. Do not use any type of sealer in place of the gasket.

  1. Install the new transfer case adapter seal.
  2. Install the transfer adapter to the transmission.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the transfer case adapter mounting bolts to the transmission.

    Tighten

    Tighten the transfer case adapter mounting bolts to 55 N.m (40 lb ft).

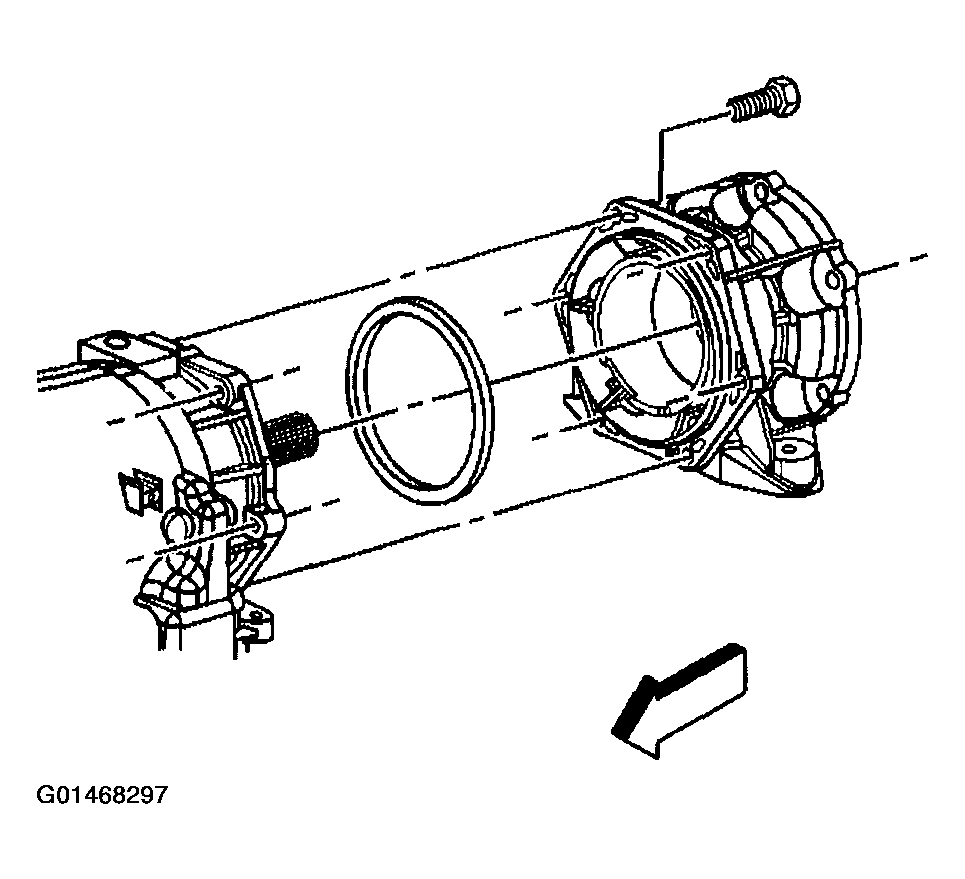

    Fig 1: Installing New Transfer Case Adapter Seal
    G01468297Courtesy of GENERAL MOTORS CORP.
  4. Install the new transfer case gasket.

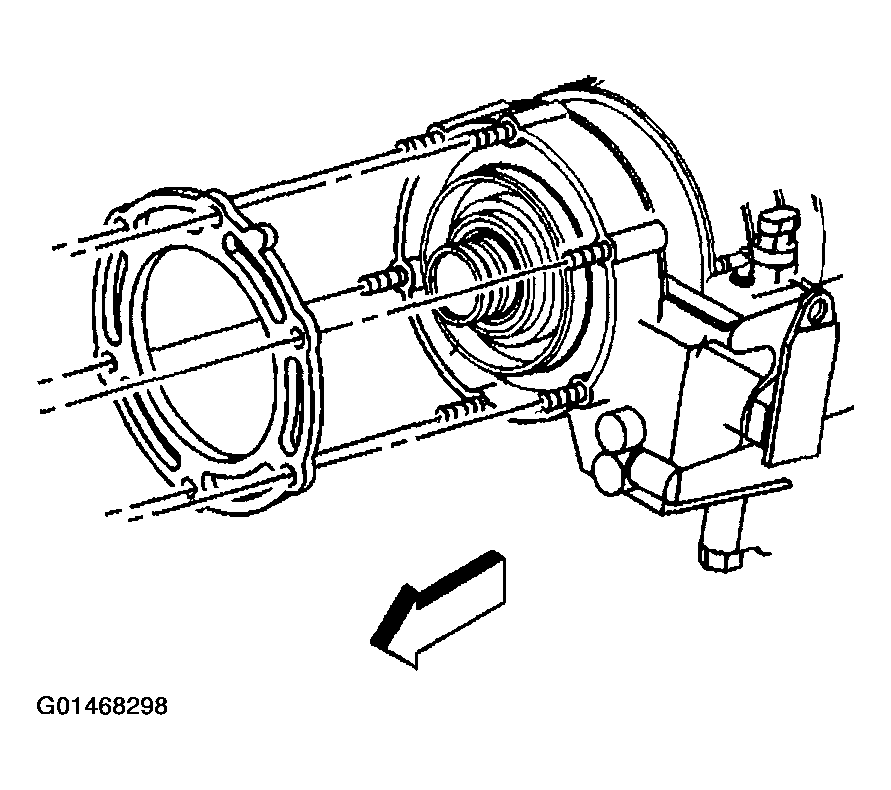

    Fig 2: Installing New Transfer Case Gasket
    G01468298Courtesy of GENERAL MOTORS CORP.
  5. Install the transfer case assembly. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT  .

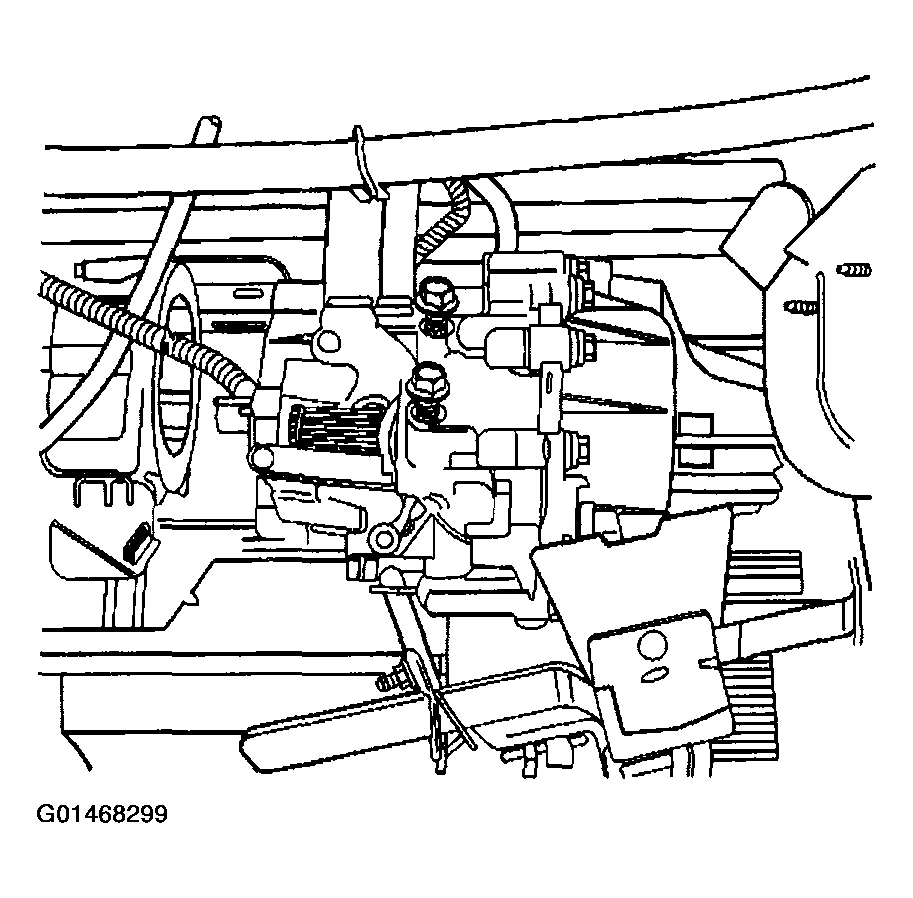

    Fig 3: Installing Transfer Case Assembly
    G01468299Courtesy of GENERAL MOTORS CORP.
