Transfer Case Control Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

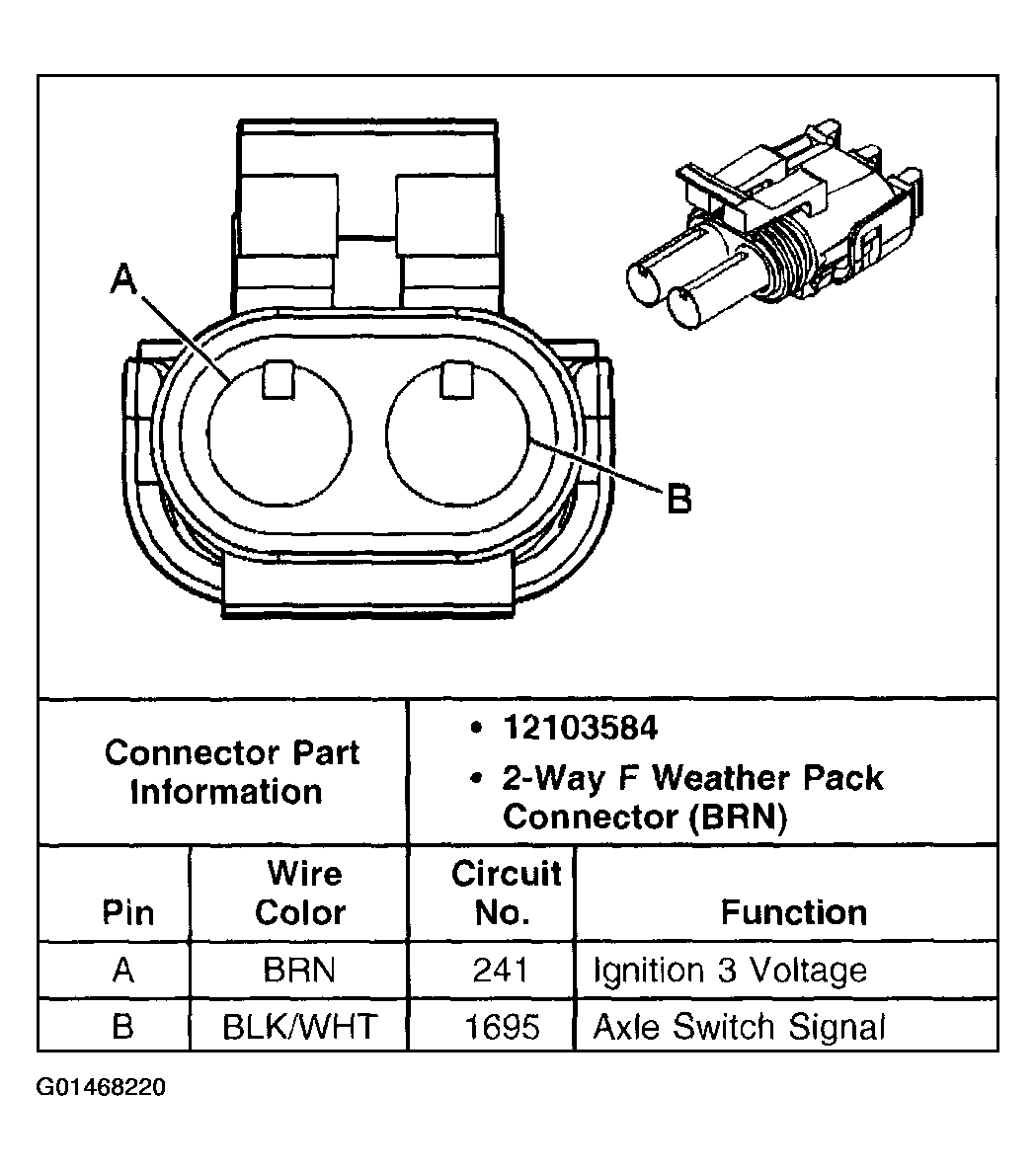

Fig 1: Front Axle Indicator Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

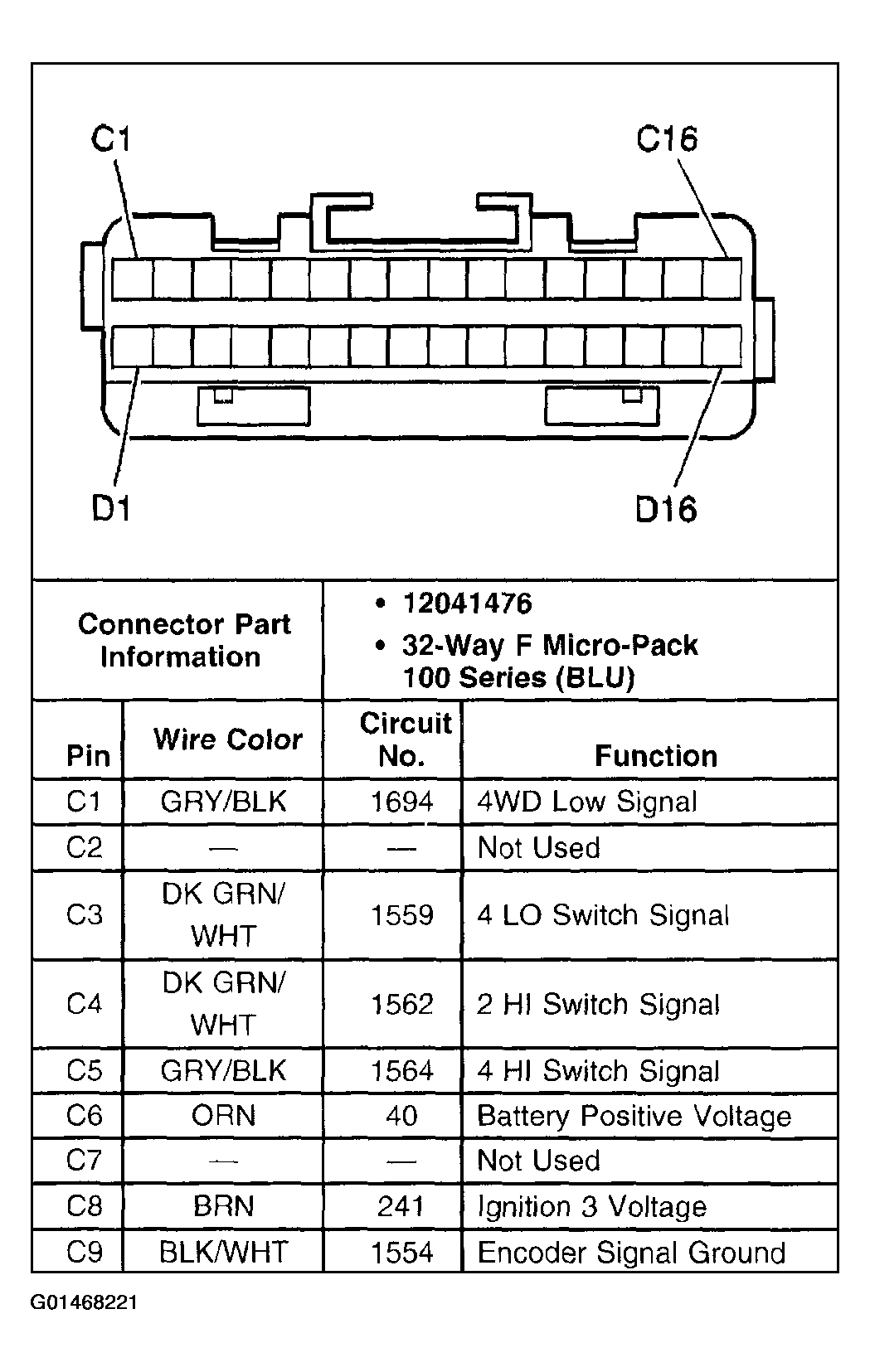

Fig 2: Transfer Case Shift Control Module Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

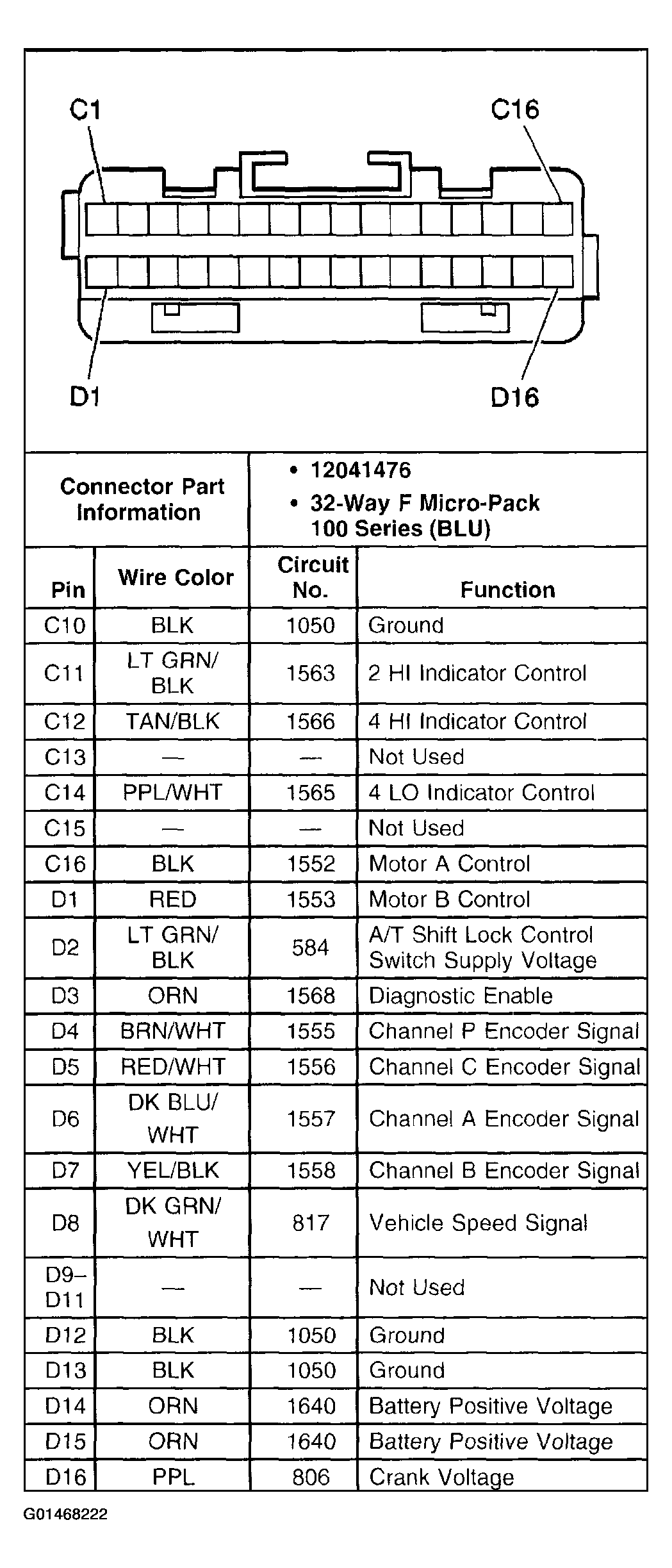

Fig 3: Transfer Case Shift Control Module Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

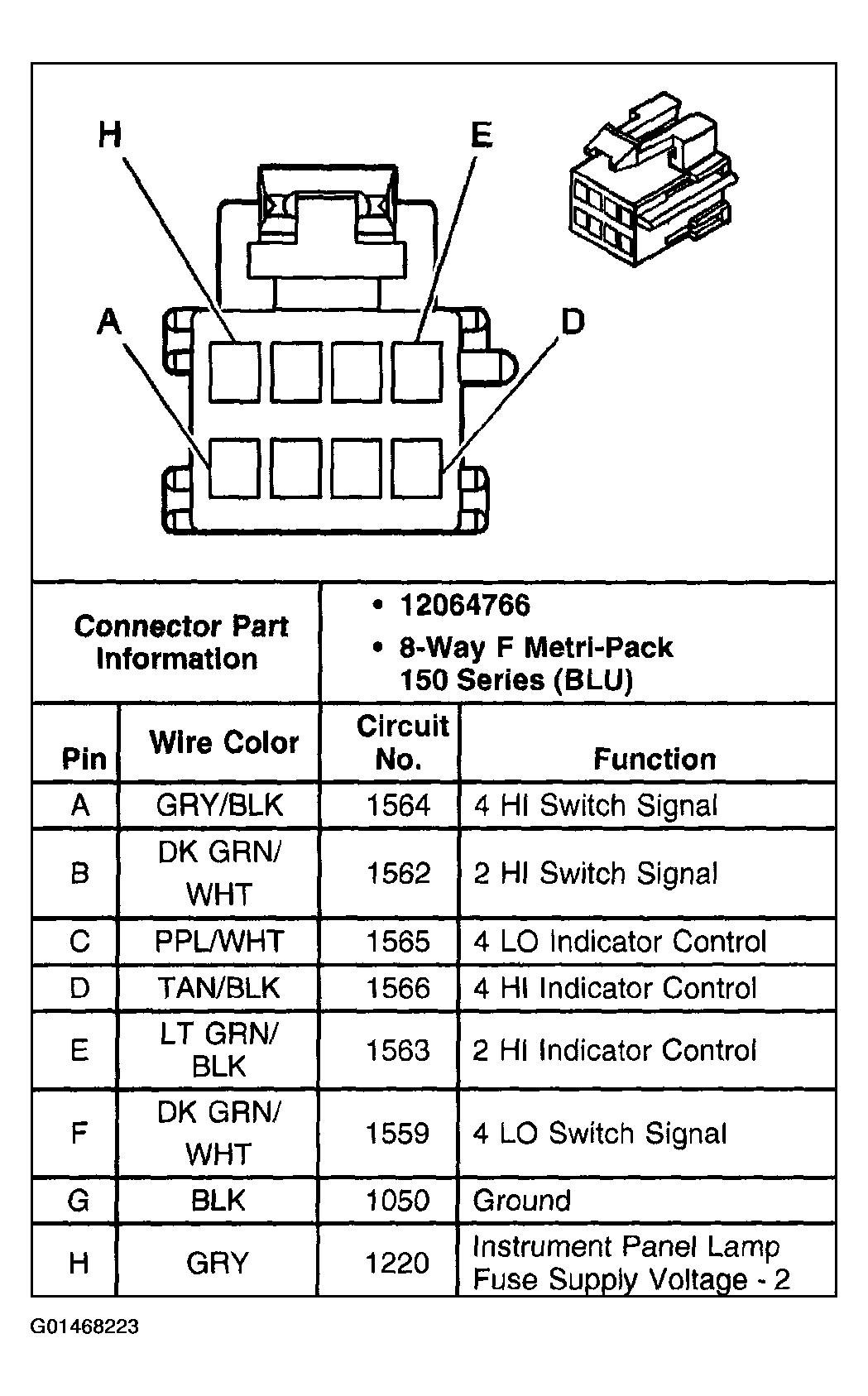

Fig 4: Transfer Case Shift Control Switch C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

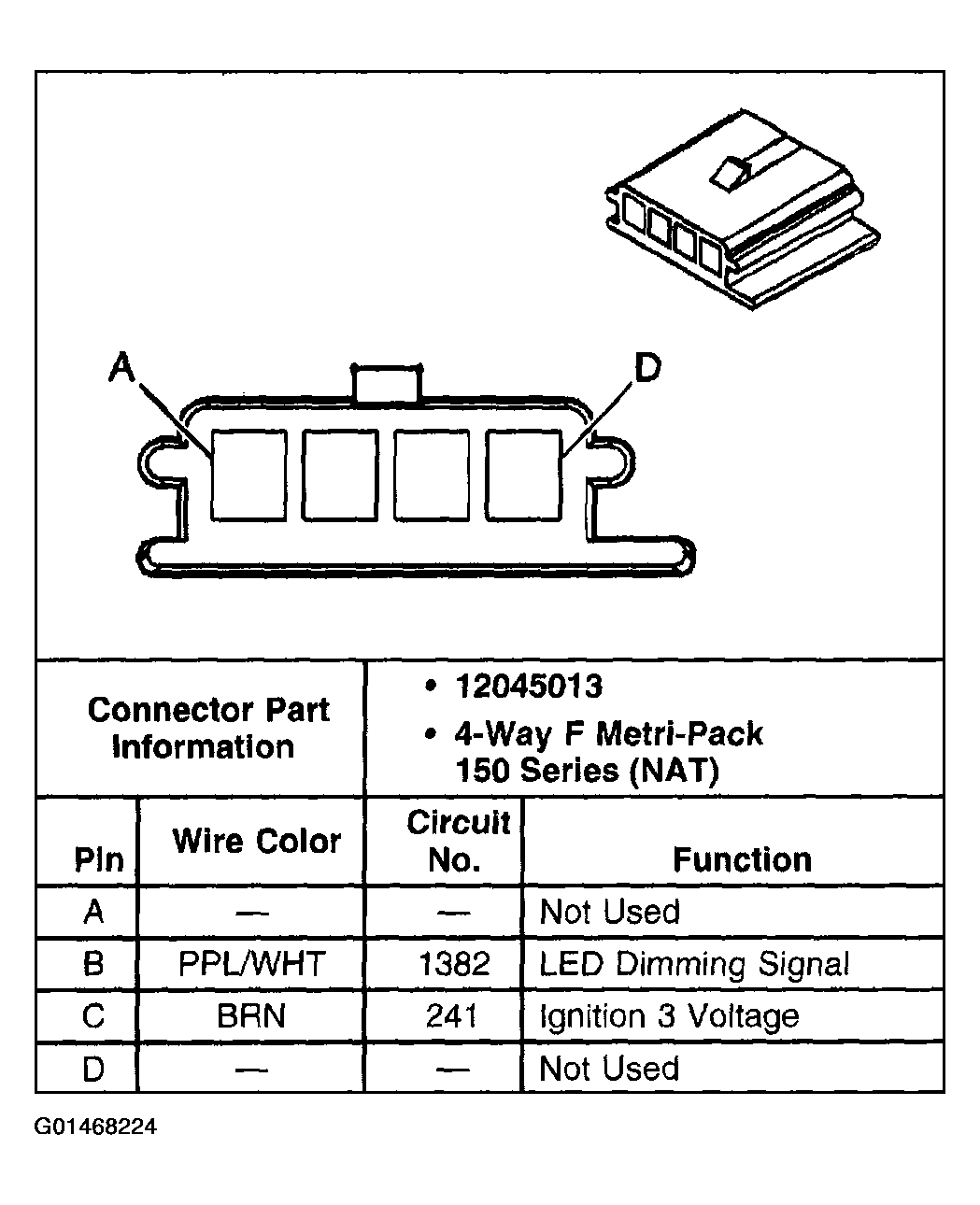

Fig 5: Transfer Case Shift Control Switch C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

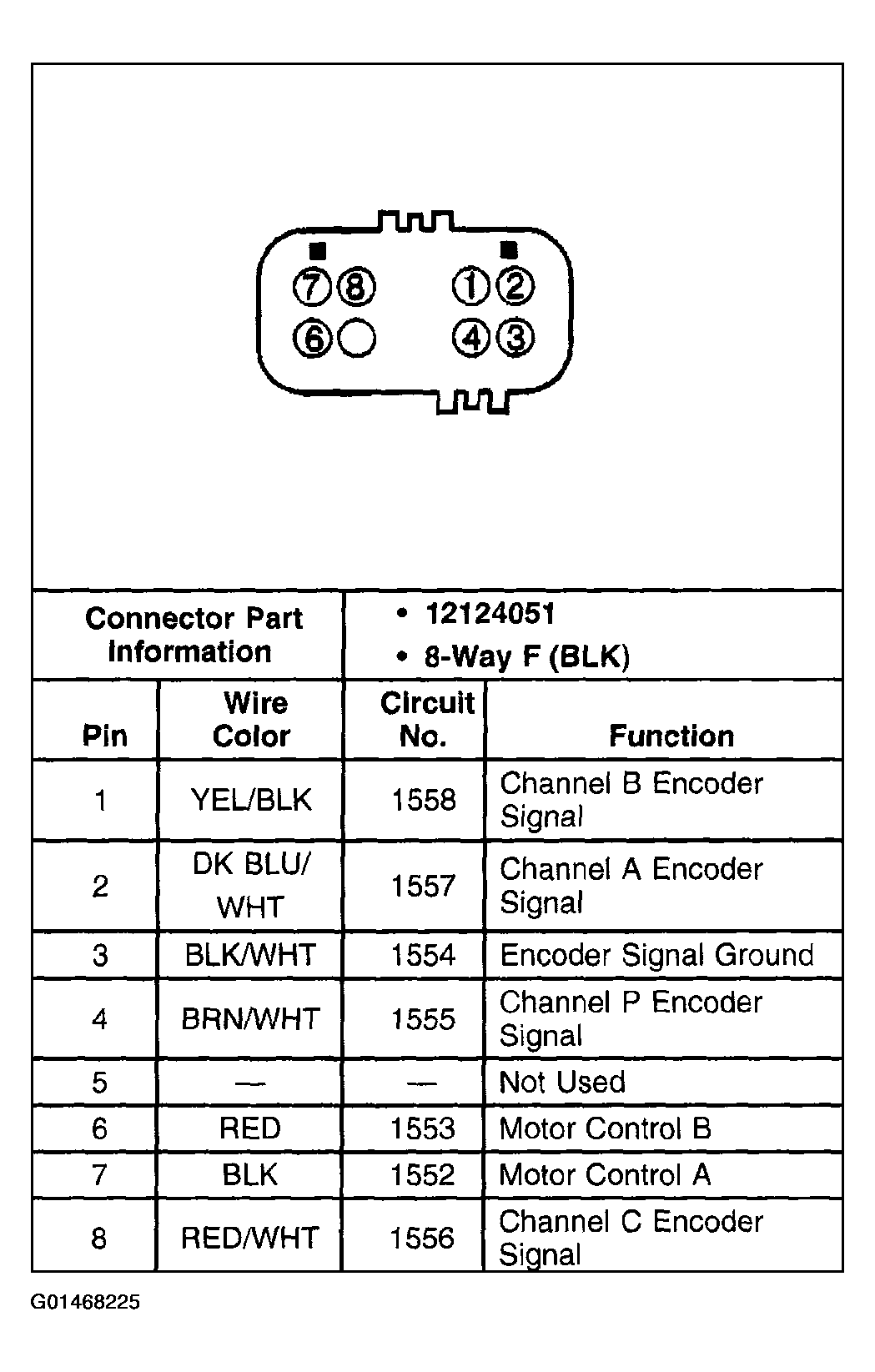

Fig 6: Transfer Case Encoder Motor Connector End View

Courtesy of GENERAL MOTORS CORP.
