Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The axle vent assembly is on the right side of the axle carrier.

Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
Remove the vent clamp bolt.

Fig 1: Removing Vent Clamp Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the hose from the axle vent tube.

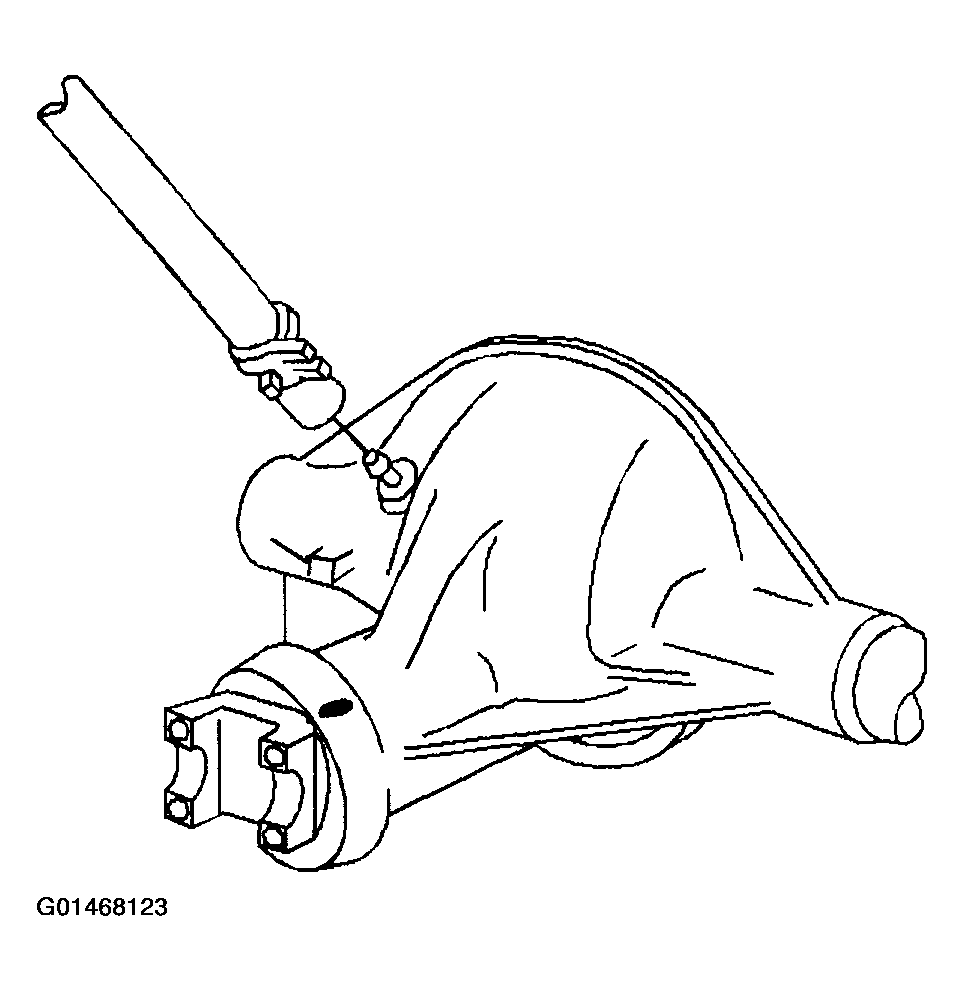

Fig 2: Removing Hose From Axle Vent Tube
Courtesy of GENERAL MOTORS CORP.
Remove the hose from the frame.
Remove the vent assembly from the hose.
Remove the vent hanger clip from the vent hose.
Remove the hose clamp from the vent hose.

Fig 3: Removing Hose Clamp From Vent Hose
Courtesy of GENERAL MOTORS CORP.
