Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
Remove the rear axle fill plug.

Fig 1: Removing Rear Axle Fill Plug
Courtesy of GENERAL MOTORS CORP.
Remove the rear axle housing cover and the rear axle housing cover gasket.
Drain the lubricant into a suitable container.
Inspect the bottom of the rear axle housing for excessive metal particle accumulation. This accumulation is symptomatic of extreme wear.

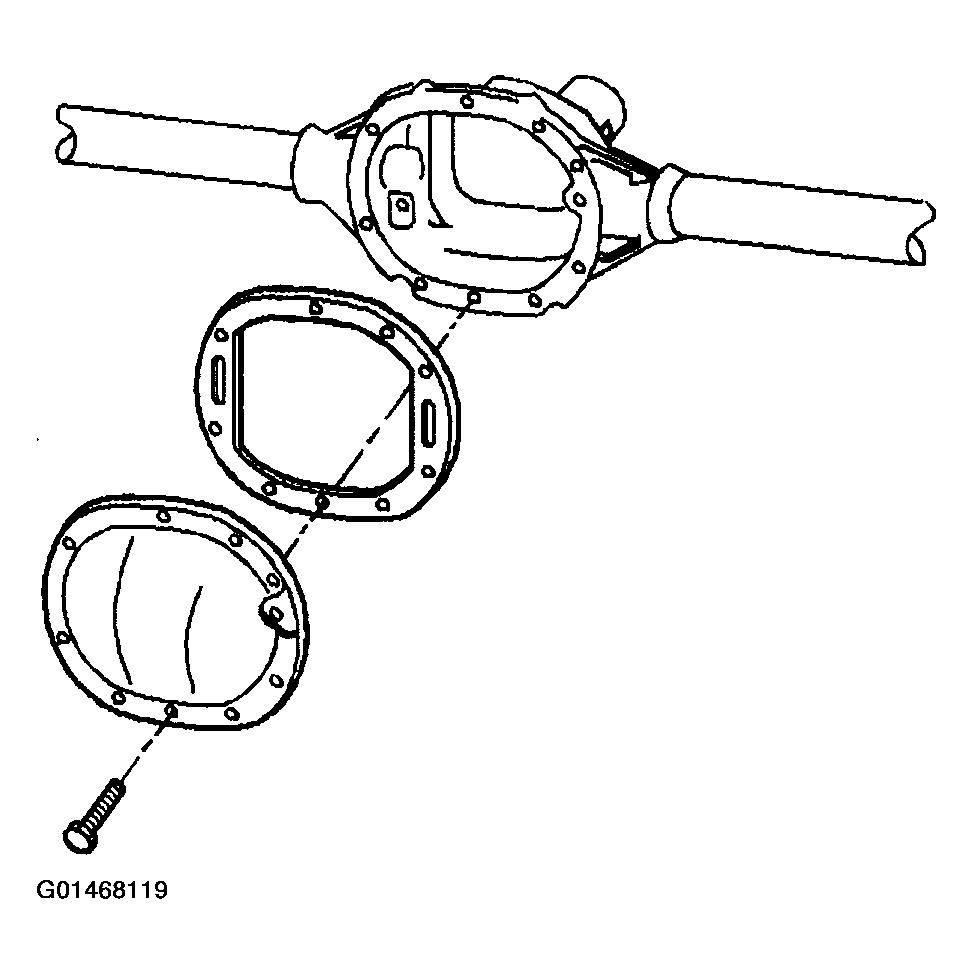

Fig 2: Removing Rear Axle Housing Cover And Rear Axle Housing Cover Gasket
Courtesy of GENERAL MOTORS CORP.
