Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new rear axle housing cover gasket and the rear axle housing cover.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear axle housing cover bolts.

    Tighten

    Tighten the rear axle housing cover bolts in a crosswise pattern to 39 N.m (29 lb ft).

  3. Fill the rear axle. Use the proper fluid.

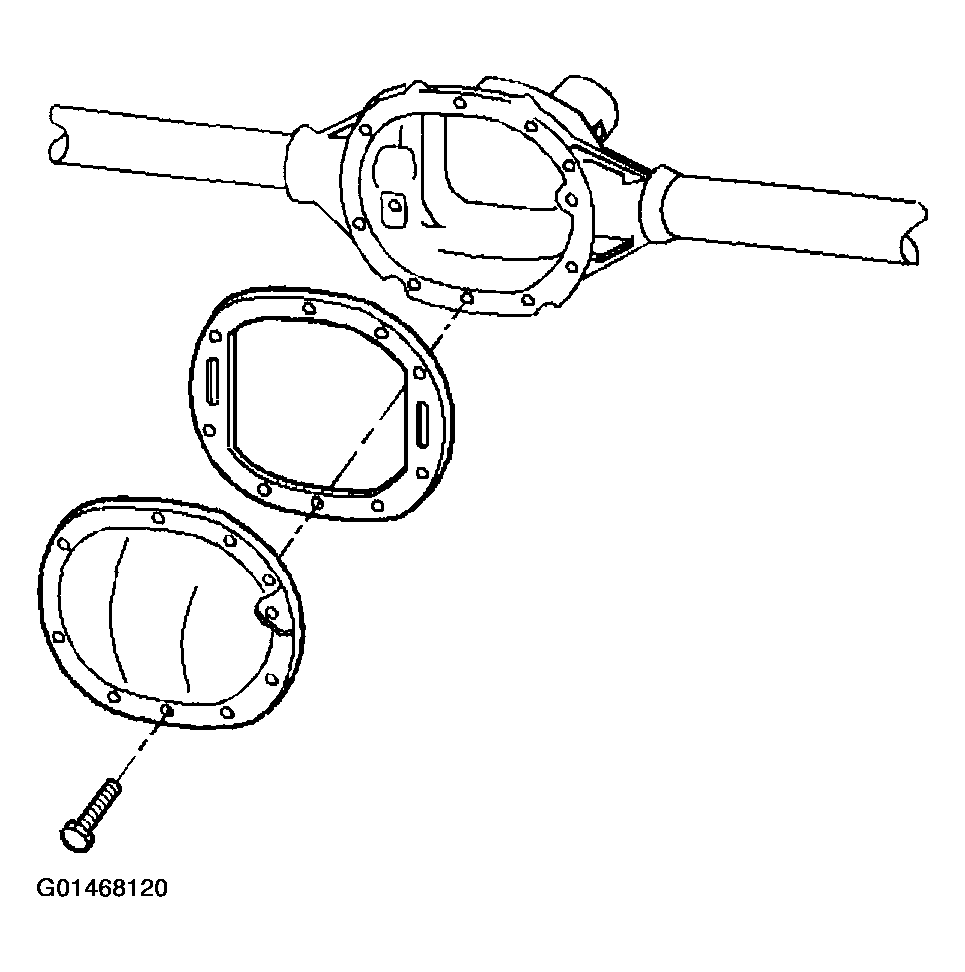

    Fig 1: Installing New Rear Axle Housing Cover Gasket And Rear Axle Housing Cover
    G01468120Courtesy of GENERAL MOTORS CORP.
  4. Install the rear axle fill plug.

    Tighten

    Tighten the rear axle fill plug to 33 N.m (24 lb ft).

  5. Lower the vehicle.

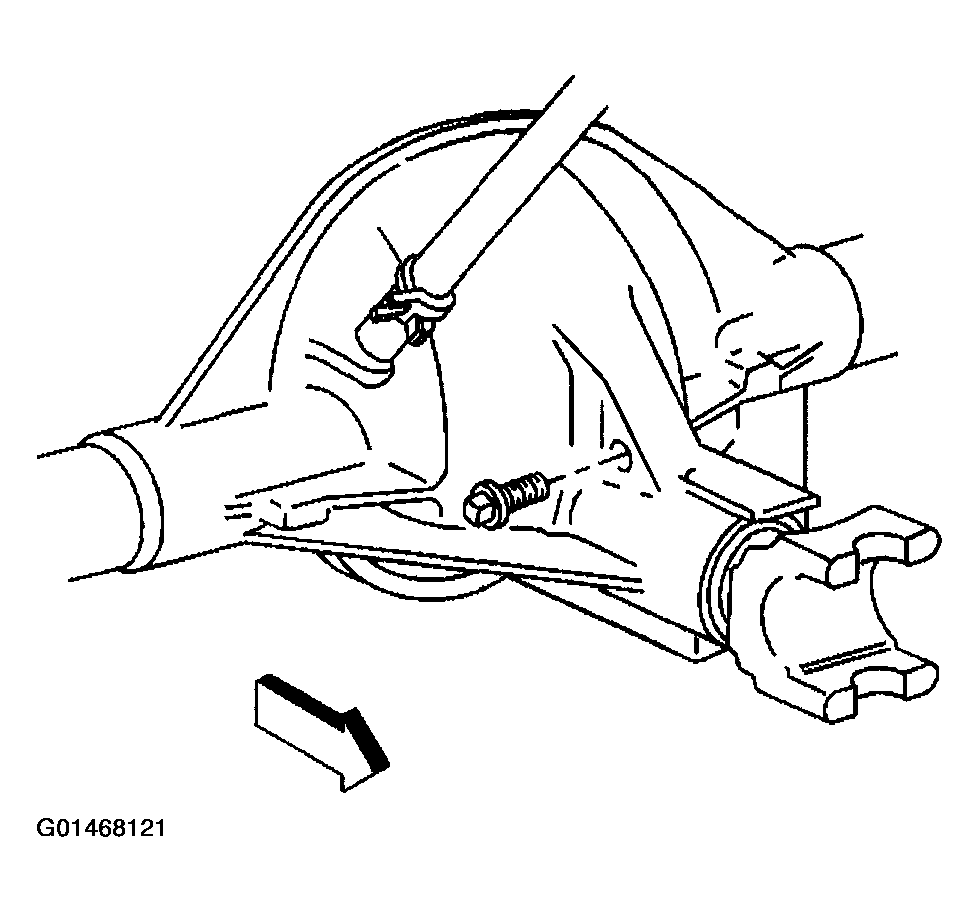

    Fig 2: Installing Rear Axle Fill Plug
    G01468121Courtesy of GENERAL MOTORS CORP.
