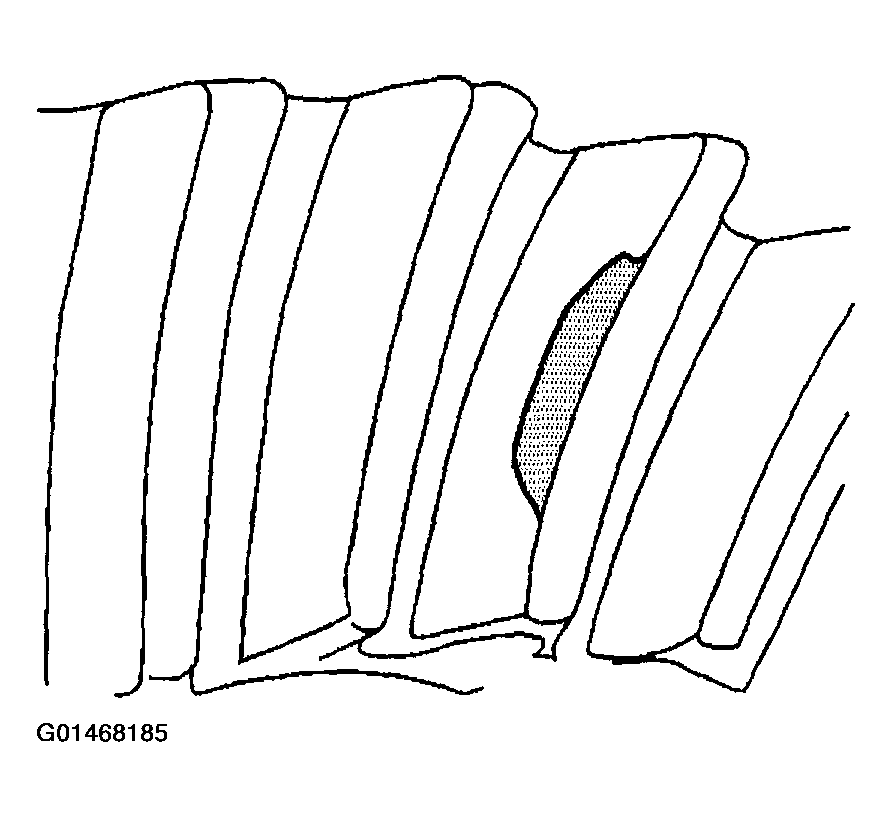

High Flank Contact Pattern: Correction
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
Increase the pinion depth. Move the pinion gear closer to the ring gear by increasing the pinion shim thickness. Refer to PINION DEPTH ADJUSTMENT .
