Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential assembly. Refer to DIFFERENTIAL REPLACEMENT  .
  2. Remove the differential side bearings by doing the following:
    1. 2.1. Install the differential assembly into a vise.

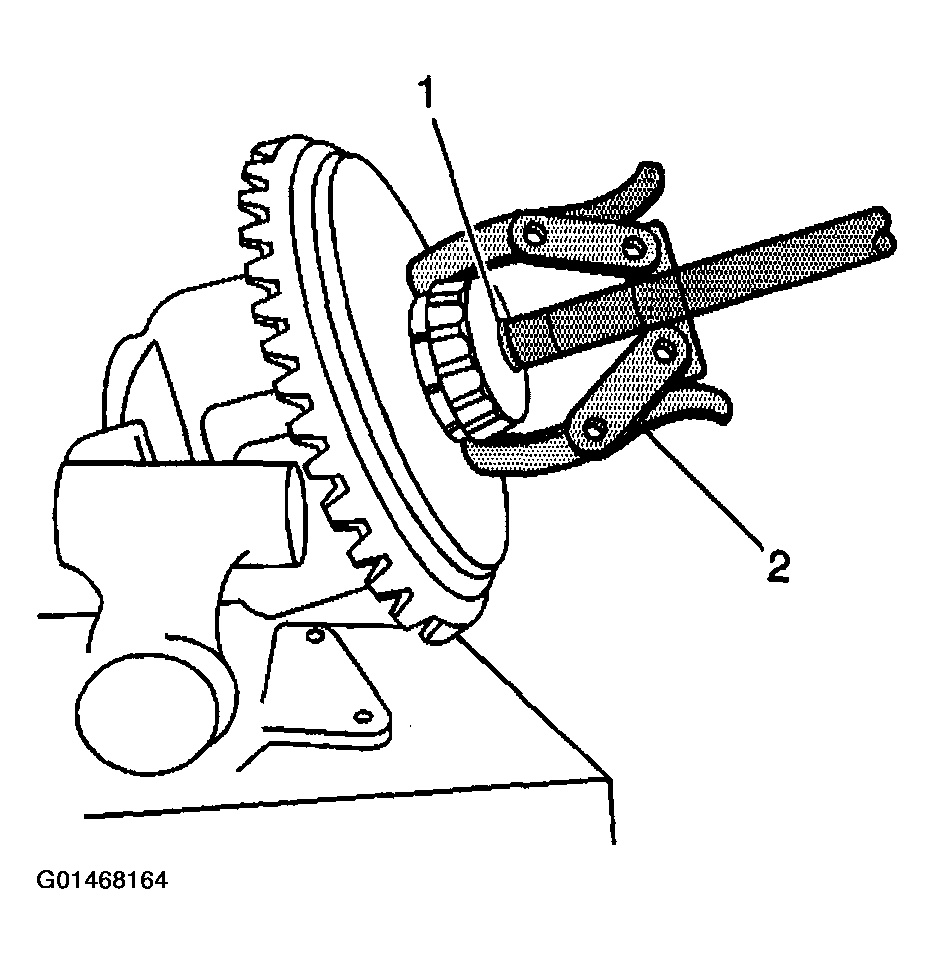

      Fig 1: Removing Differential Side Bearing
      G01468164Courtesy of GENERAL MOTORS CORP.
    2. 2.2. Install the J 8107-2  (7.6 inch axle and 1st design 8.6 inch axle) or the J 8107-4  (2nd design 8.6 inch axle) (1)

      J 22888-20A  (2) onto the differential case.

    3. 2.3. Remove the differential side bearings using the J 22888-20A  .
  3. Remove the differential assembly from the vise.
