Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the differential side bearings by doing the following:
    1. 1.1. In order to protect the differential case, install the J 8107-2  or the J 8107-4  in the case on the side opposite the bearing installation.
    2. 1.2. Install the J 25299  (7.6 inch axle and 1st design 8.6 inch axle) or the J 21784  (2nd design 8.6 inch axle) (2) and the J 8092  (1) onto the differential case bearing as shown.
    3. 1.3. Drive the bearing onto the case using the J 25299  or the J 21784  (2) and the J 8092  (1).
  2. Install the differential assembly. Refer to DIFFERENTIAL REPLACEMENT  .

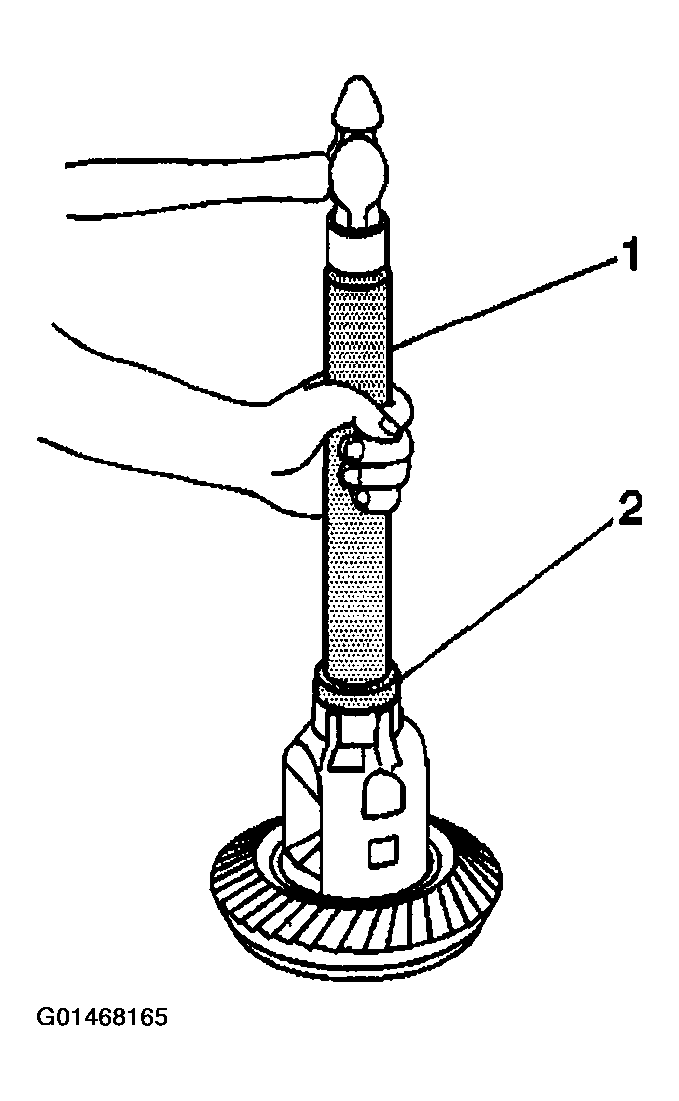

    Fig 1: Installing Differential Side Bearing
    G01468165Courtesy of GENERAL MOTORS CORP.
