Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the front differential carrier shield bolts and washers.
  3. Remove the front differential carrier shield.

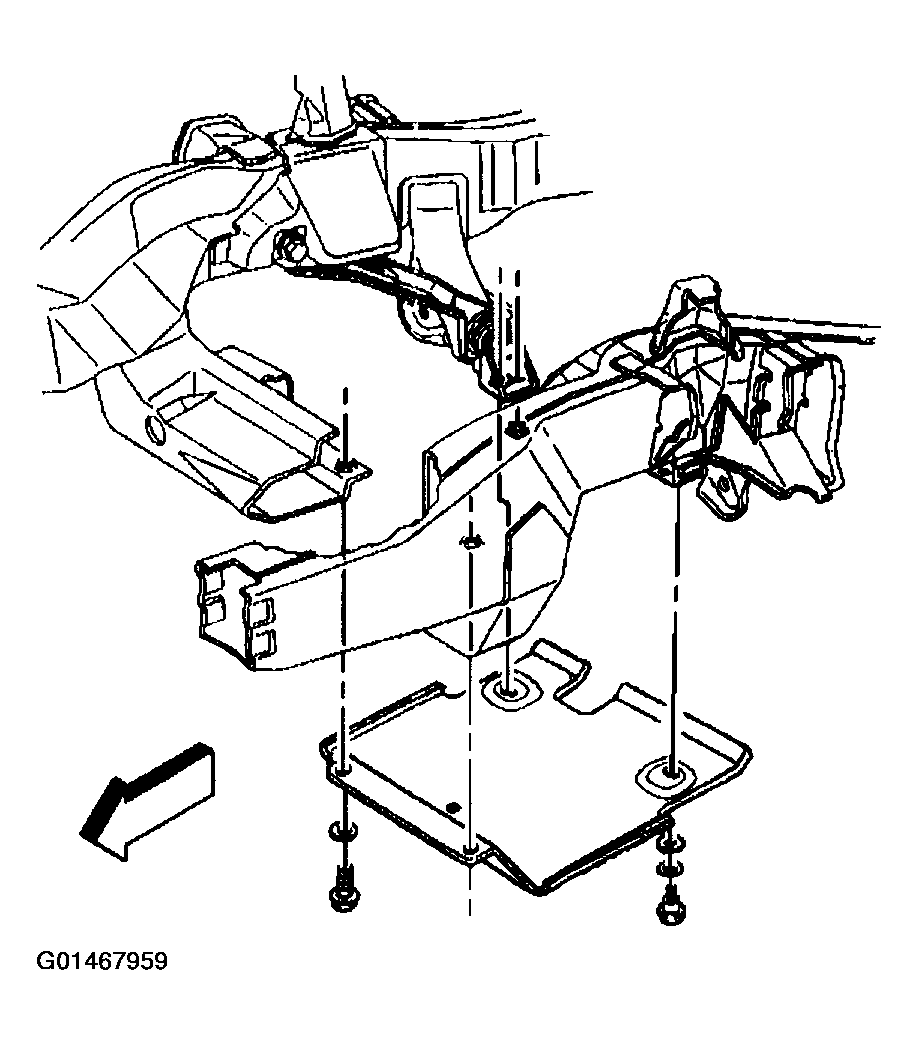

Fig 1: Removing Front Differential Carrier Shield Bolts And Washers
G01467959Courtesy of GENERAL MOTORS CORP.
