Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the drain plug and the washer.
Tighten

Tighten the drain plug to 33 N.m (24 lb ft).
Fill the front differential with lubricant. Use the proper fluid.

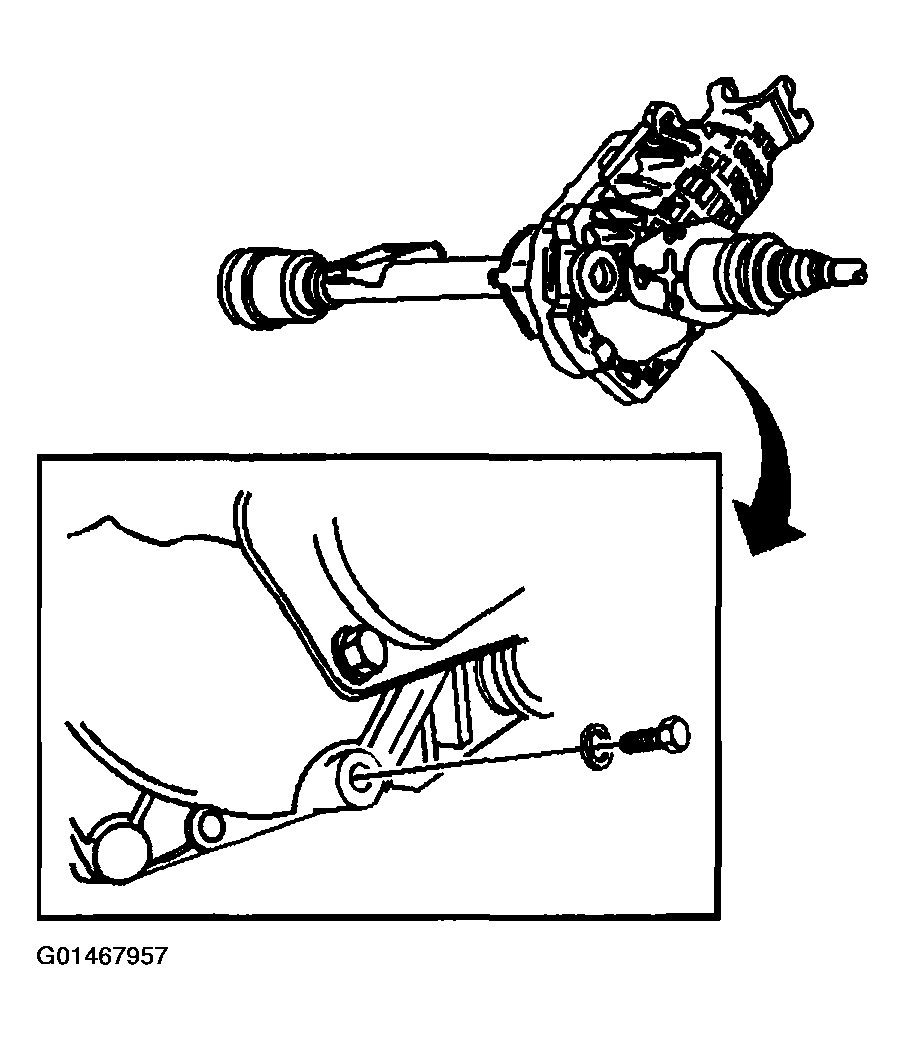

Fig 1: Installing Drain Plug And Washer
Courtesy of GENERAL MOTORS CORP.
Install the fill plug and the washer.
Tighten

Tighten the fill plug to 33 N.m (24 lb ft).
Install the front differential carrier shield, if equipped. Refer to SHIELD REPLACEMENT .
Lower the vehicle.

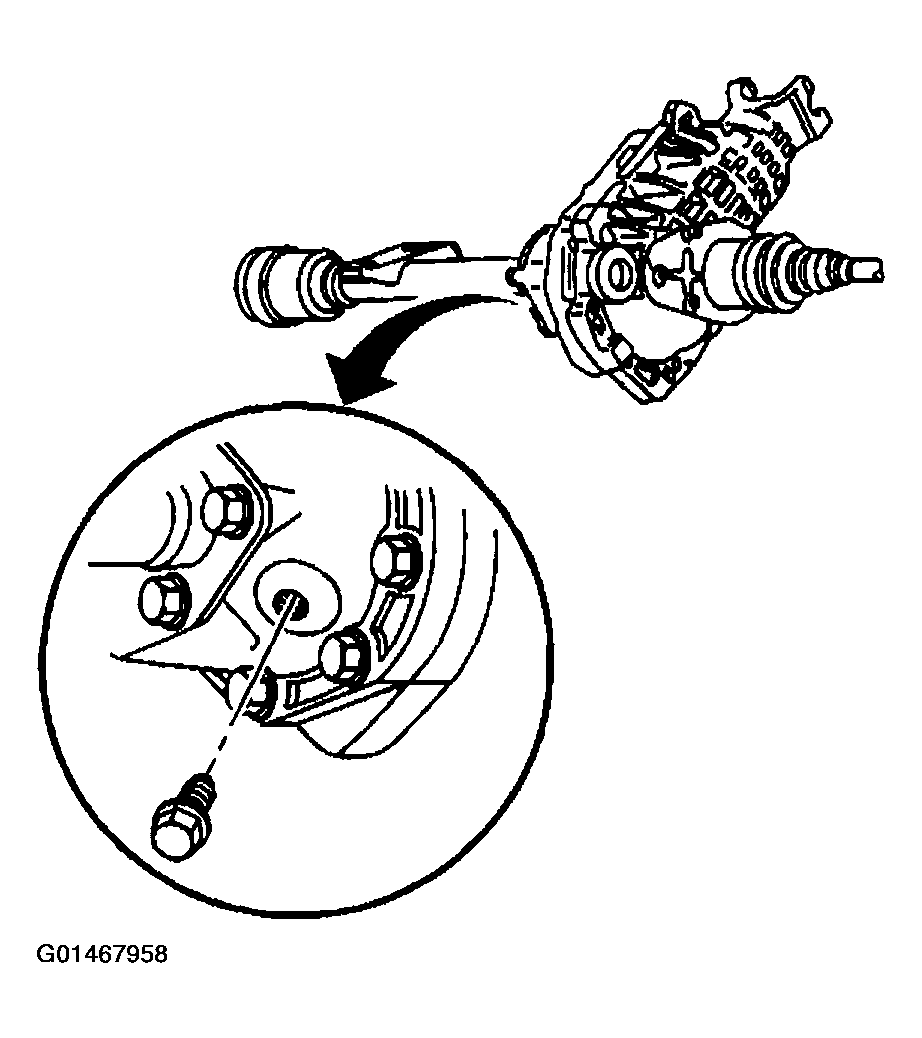

Fig 2: Installing Fill Plug And Washer

Courtesy of GENERAL MOTORS CORP.
