Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the front differential carrier shield, if equipped. Refer to SHIELD REPLACEMENT  .
  3. Disconnect the electrical harness from the four-wheel drive indicator switch.

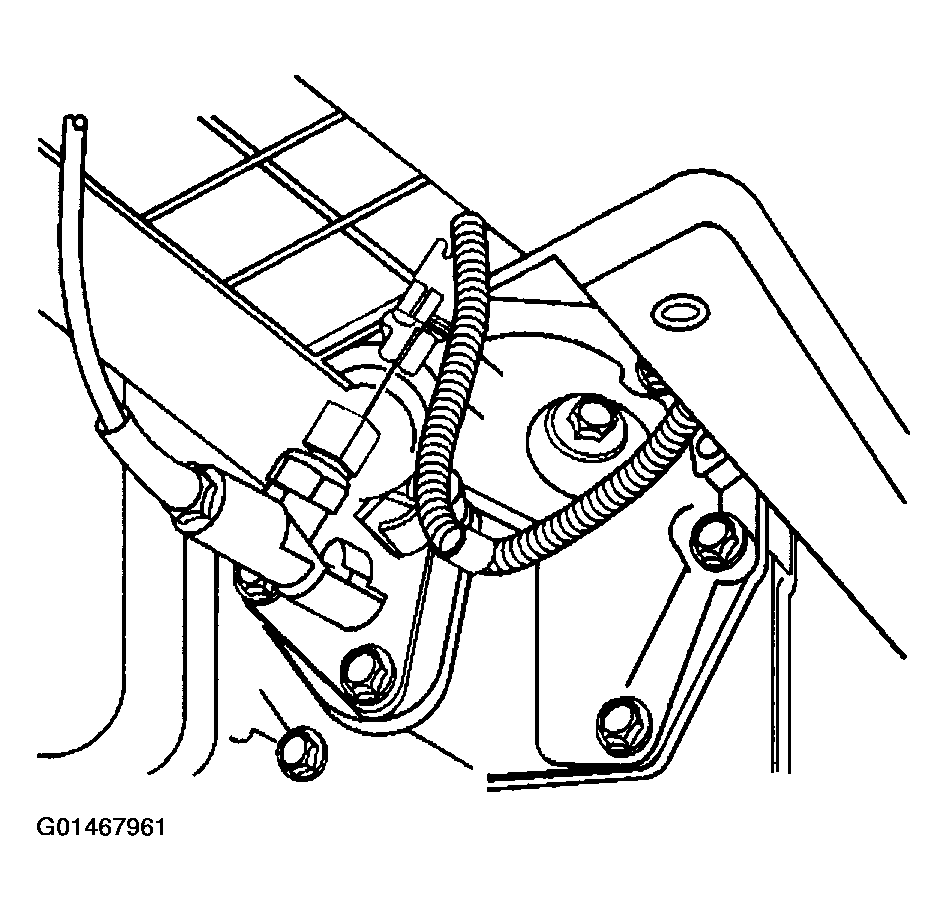

    Fig 1: Disconnecting Electrical Harness From Four-Wheel Drive Indicator Switch
    G01467961Courtesy of GENERAL MOTORS CORP.
  4. Remove the four-wheel drive indicator switch.
Fig 2: Removing Four-Wheel Drive Indicator Switch
G01467962Courtesy of GENERAL MOTORS CORP.
