Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the four-wheel drive indicator switch.

    Tighten

    Tighten the four-wheel drive indicator switch to 5 N.m (44 lb in).

    Fig 1: Installing Four-Wheel Drive Indicator Switch
    G01467963Courtesy of GENERAL MOTORS CORP.
  2. Install the electrical harness from the four-wheel drive indicator switch.
  3. Install the front differential carrier shield, if equipped. Refer to SHIELD REPLACEMENT  .
  4. Lower the vehicle.

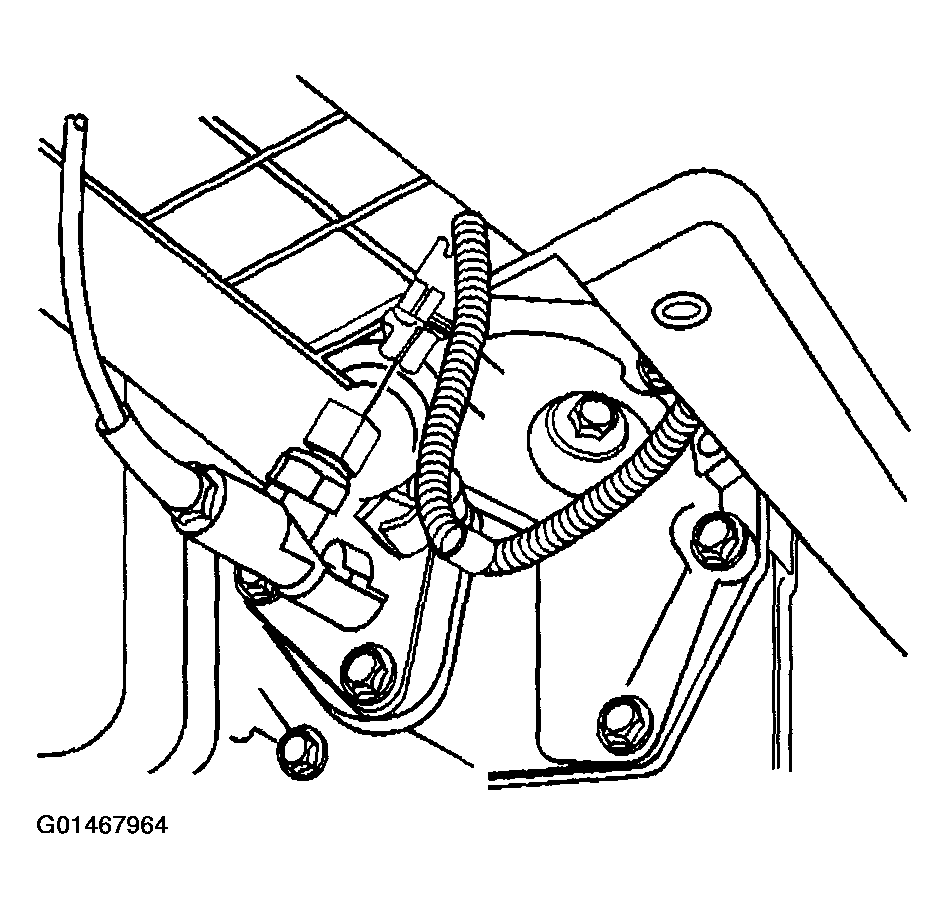

    Fig 2: Installing Electrical Harness From Four-Wheel Drive Indicator Switch
    G01467964Courtesy of GENERAL MOTORS CORP.
