Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential carrier assembly. Refer to DIFFERENTIAL CARRIER ASSEMBLY REPLACEMENT  .
  2. Remove the carrier bushing using the J 33791  .

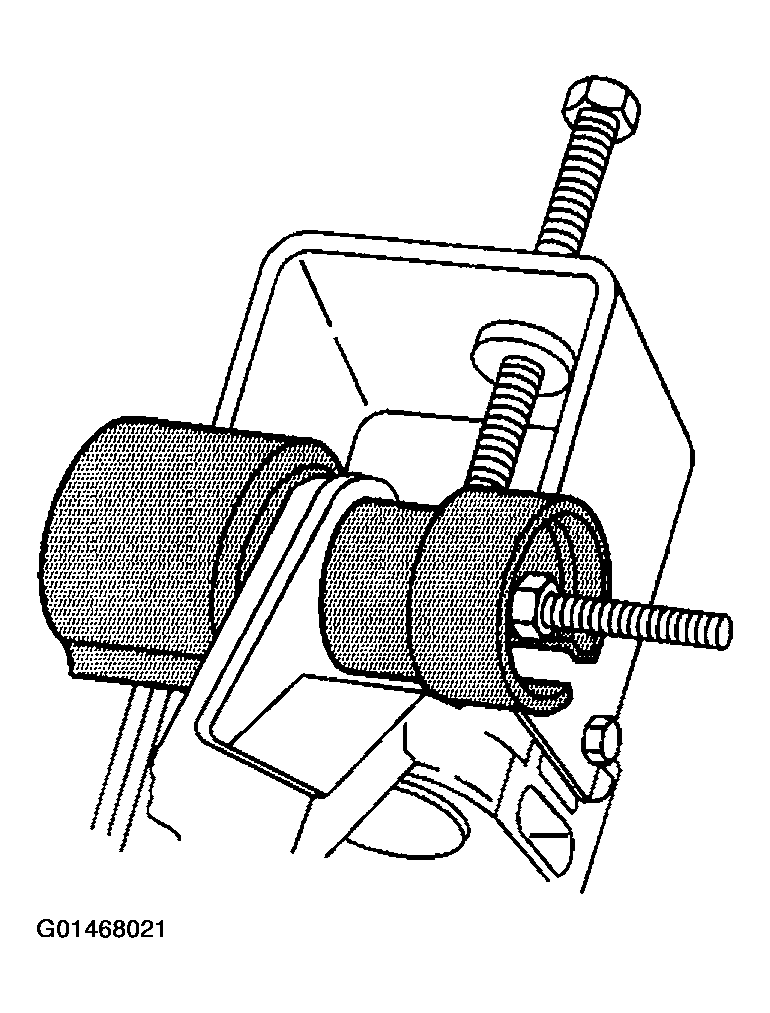

Fig 1: Removing Carrier Bush
G01468021Courtesy of GENERAL MOTORS CORP.
