Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the clutch cable housing.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the clutch cable housing bolts.
Tighten

Tighten the clutch cable housing bolts to 48 N.m (36 lb ft).

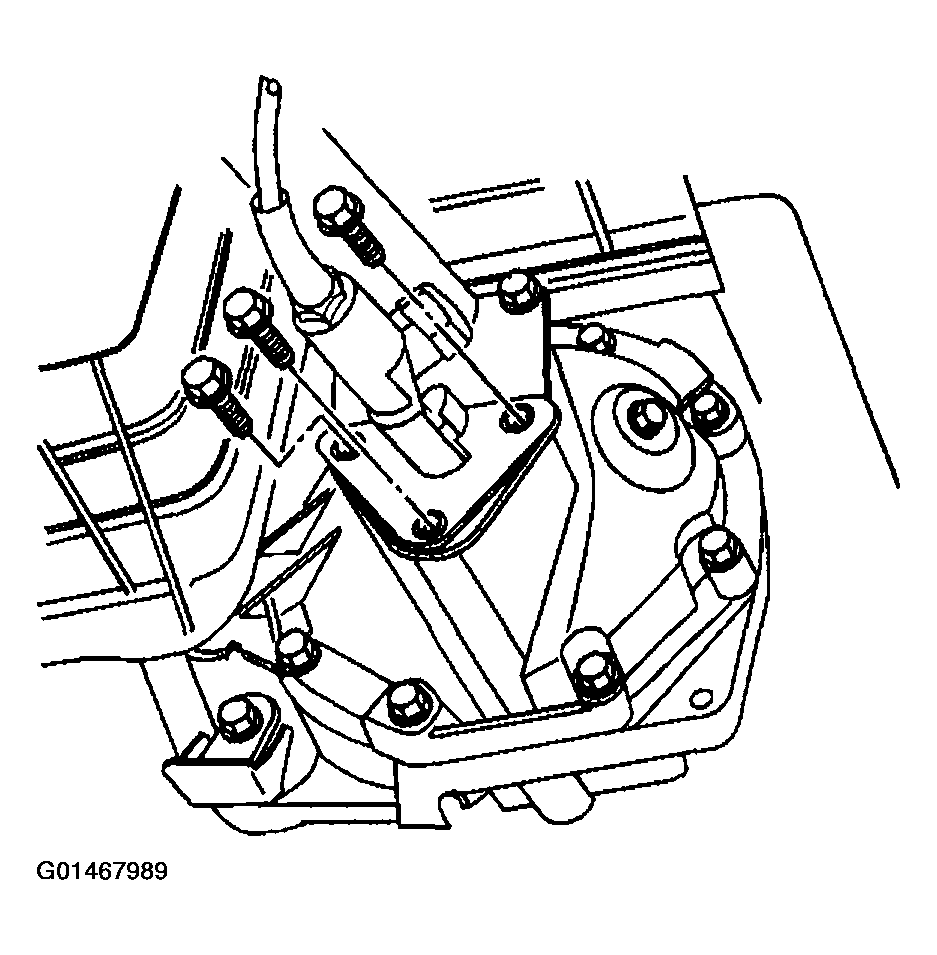

Fig 1: Installing Clutch Cable Housing Bolts
Courtesy of GENERAL MOTORS CORP.
Insert the clutch cable into the clutch fork.
Engage the spring retainer in order to retain the clutch cable.
Install the clutch cable coupling nut to the clutch cable housing.
Tighten

Tighten the clutch cable coupling nut to 10 N.m (89 lb in).

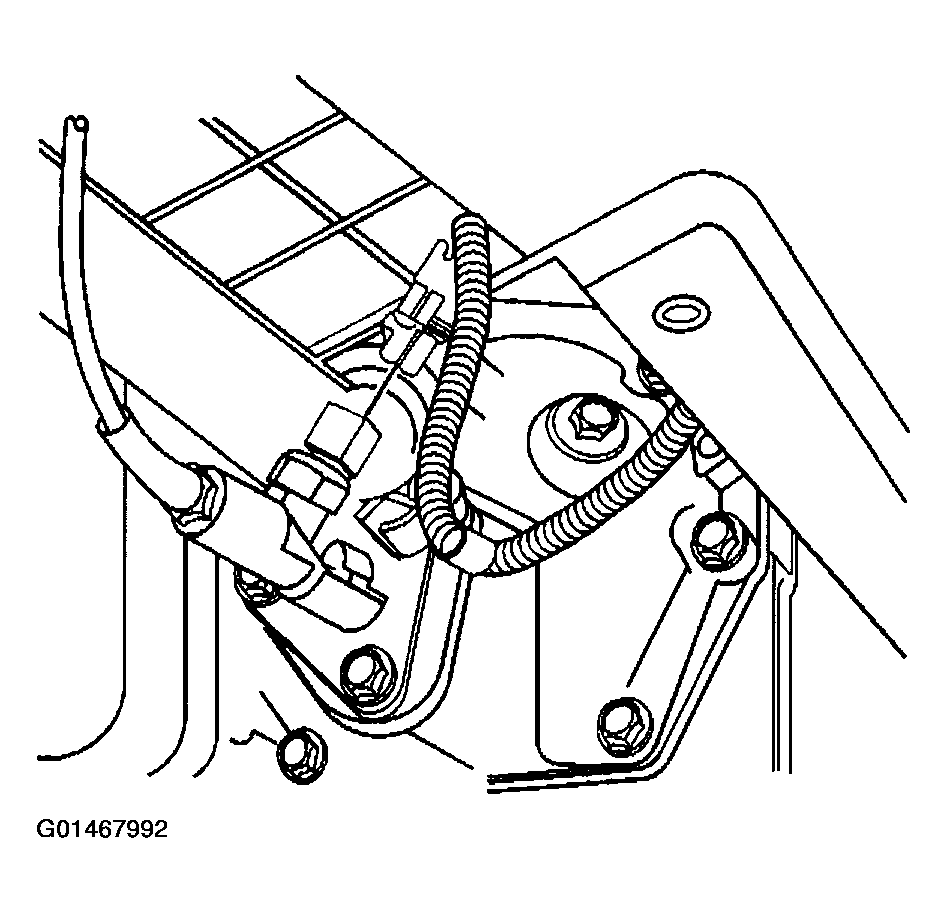

Fig 2: Installing Clutch Cable Coupling Nut To Clutch Cable Housing
Courtesy of GENERAL MOTORS CORP.
Install the four-wheel drive indicator switch.

Fig 3: Installing Four-Wheel Drive Indicator Switch
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the four-wheel drive indicator switch to 5 N.m (44 lb in).

Fig 4: Connecting Electrical Connector To Four-Wheel Drive Indicator Switch
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the four-wheel drive indicator switch.
Install the front differential carrier shield (if equipped). Refer to SHIELD REPLACEMENT .
Lower the vehicle.
