Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important: Observe the position of all the driveline components. Accurately mark the relationship of the components before removal. These components include the propeller shafts, the drive axles, the pinion flanges, and the output shafts. Reassemble all components in the exact relationship to each other as they were before removal. Follow the specifications, the torque values, and any measurements obtained prior to disassembly.

Raise and suitably support the vehicle. Refer to JACKING AND LIFTING in General Information.
Accurately reference mark the propeller shaft.
Remove the front propeller shaft bolts and yoke clamp from the front drive axle.

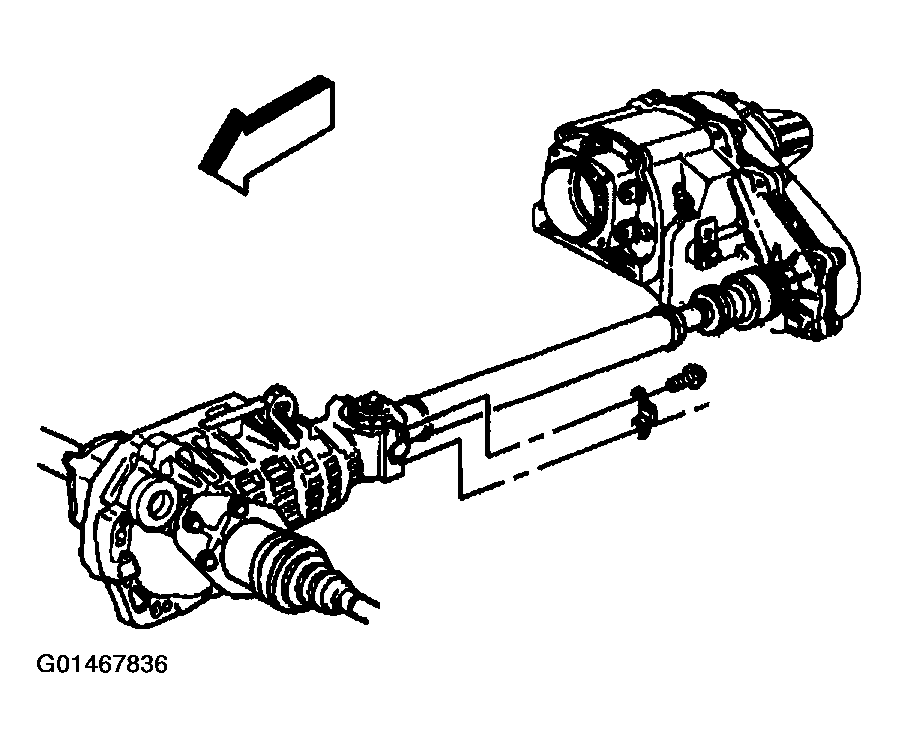

Fig 1: Removing Front Propeller Shaft Bolts And Yoke Clamp From Front Drive Axle
Courtesy of GENERAL MOTORS CORP.
Remove the propeller shaft from the transfer case.

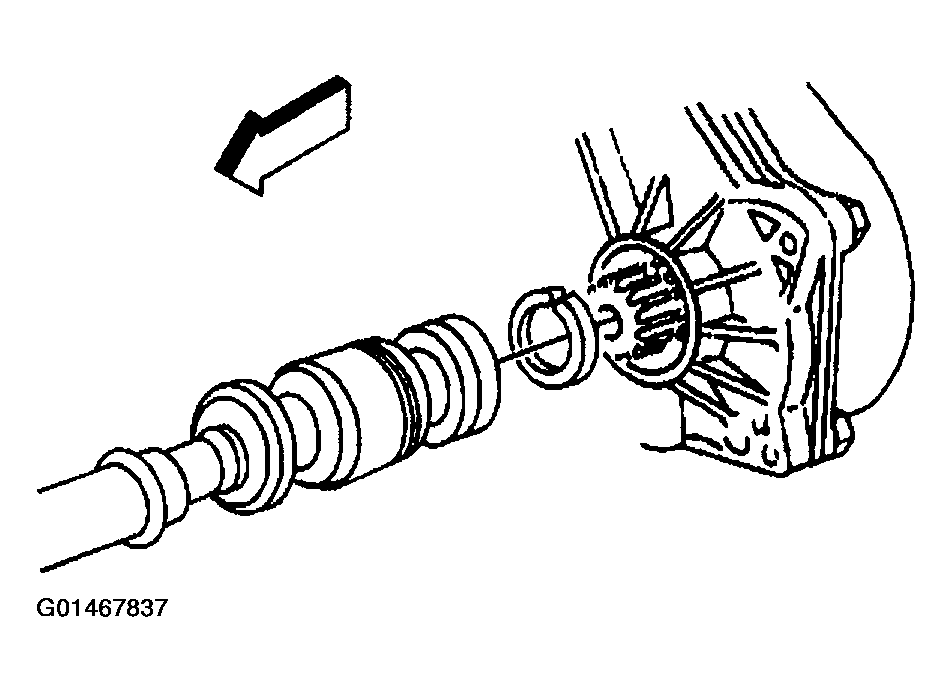

Fig 2: Removing Propeller Shaft From Transfer Case
