Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - TWO PIECE  .
  3. Remove the center bearing using the following steps:
    1. 3.1 Stand the propeller shaft (2) on end in the press (1) with the center bearing (3) supported by the press bars (4).
    2. 3.2 Press the propeller shaft (2) down and off the center bearing (3).

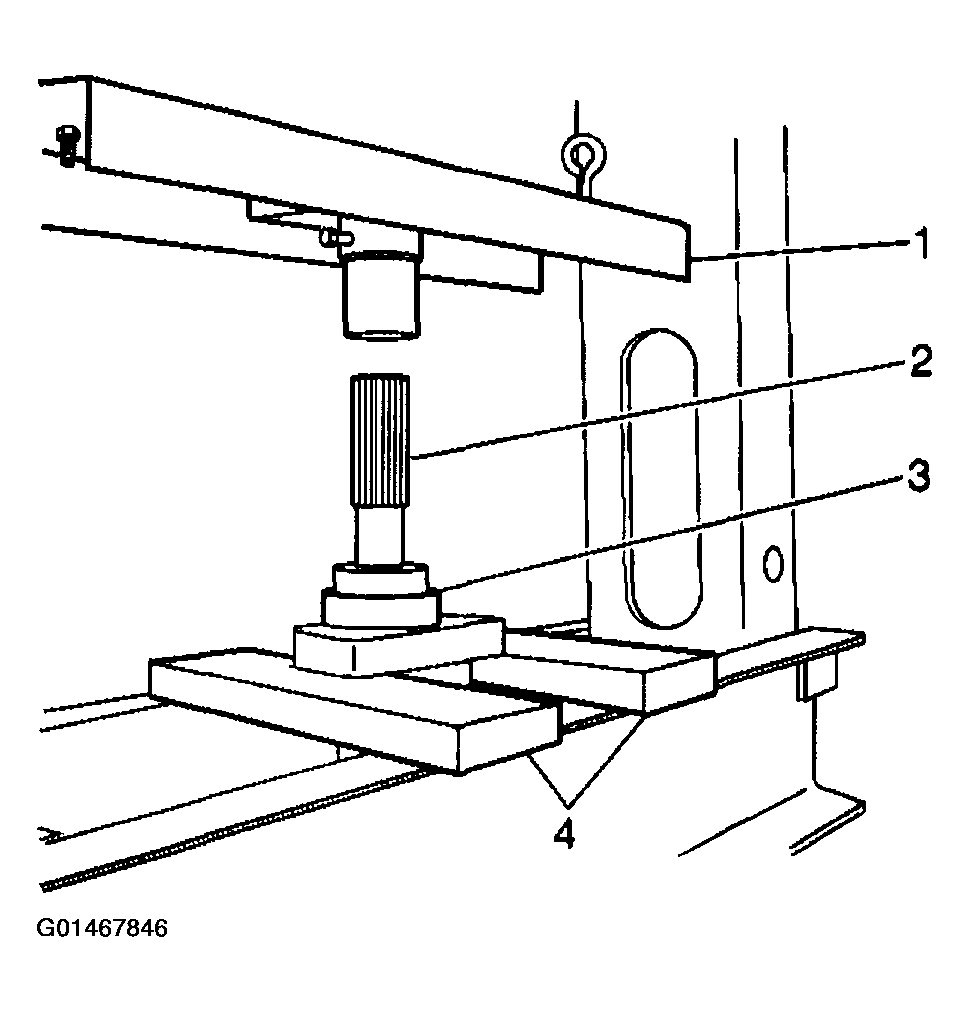

    Fig 1: Pressing Propeller Shaft Down And Off Center Bearing
    G01467846Courtesy of GENERAL MOTORS CORP.
