Driveline Disassembled Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

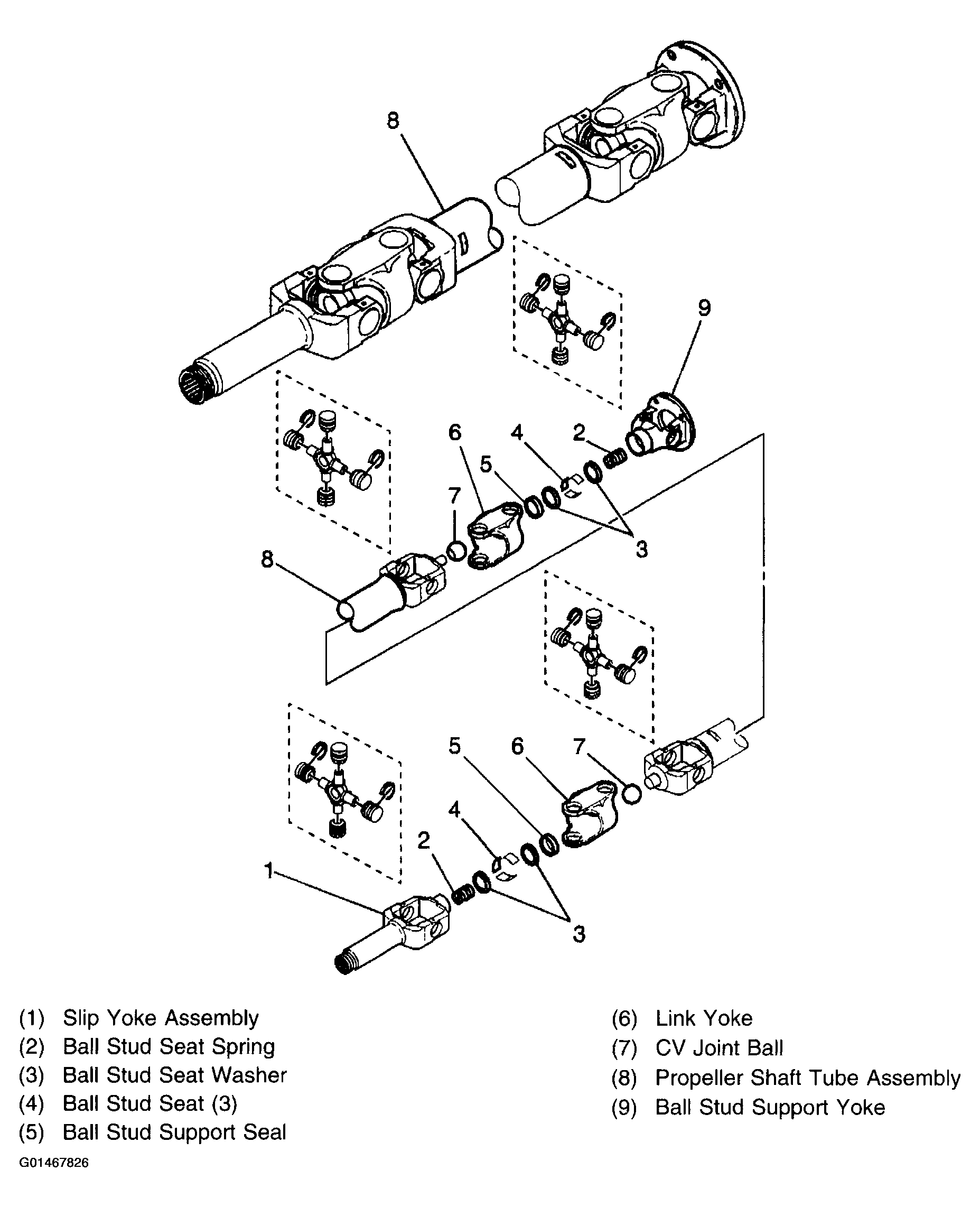

Fig 1: Double Carden Propeller Shaft Disassembled View
G01467826Courtesy of GENERAL MOTORS CORP.

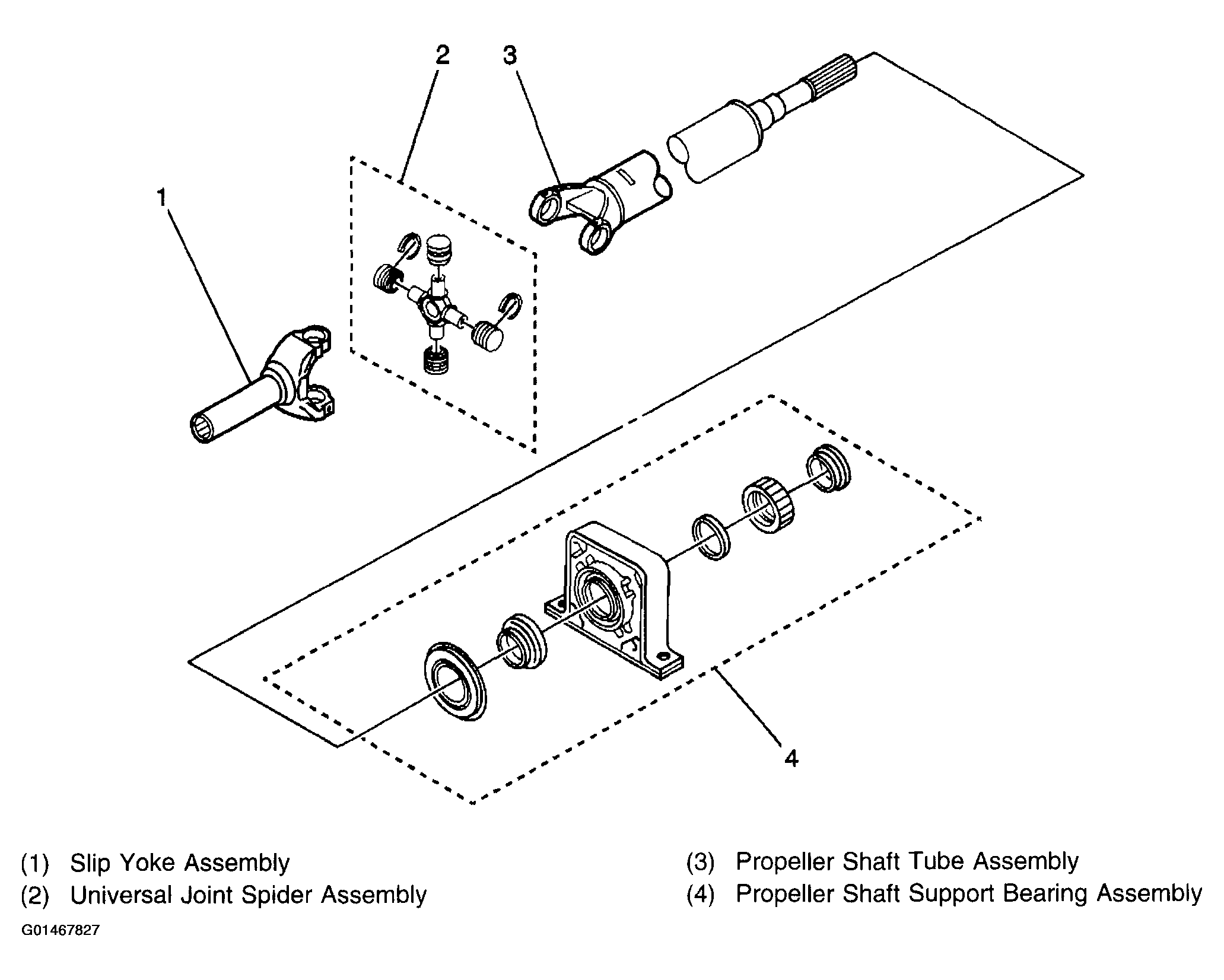

Fig 2: Propeller Shaft with Center Bearing Disassembled View
G01467827Courtesy of GENERAL MOTORS CORP.

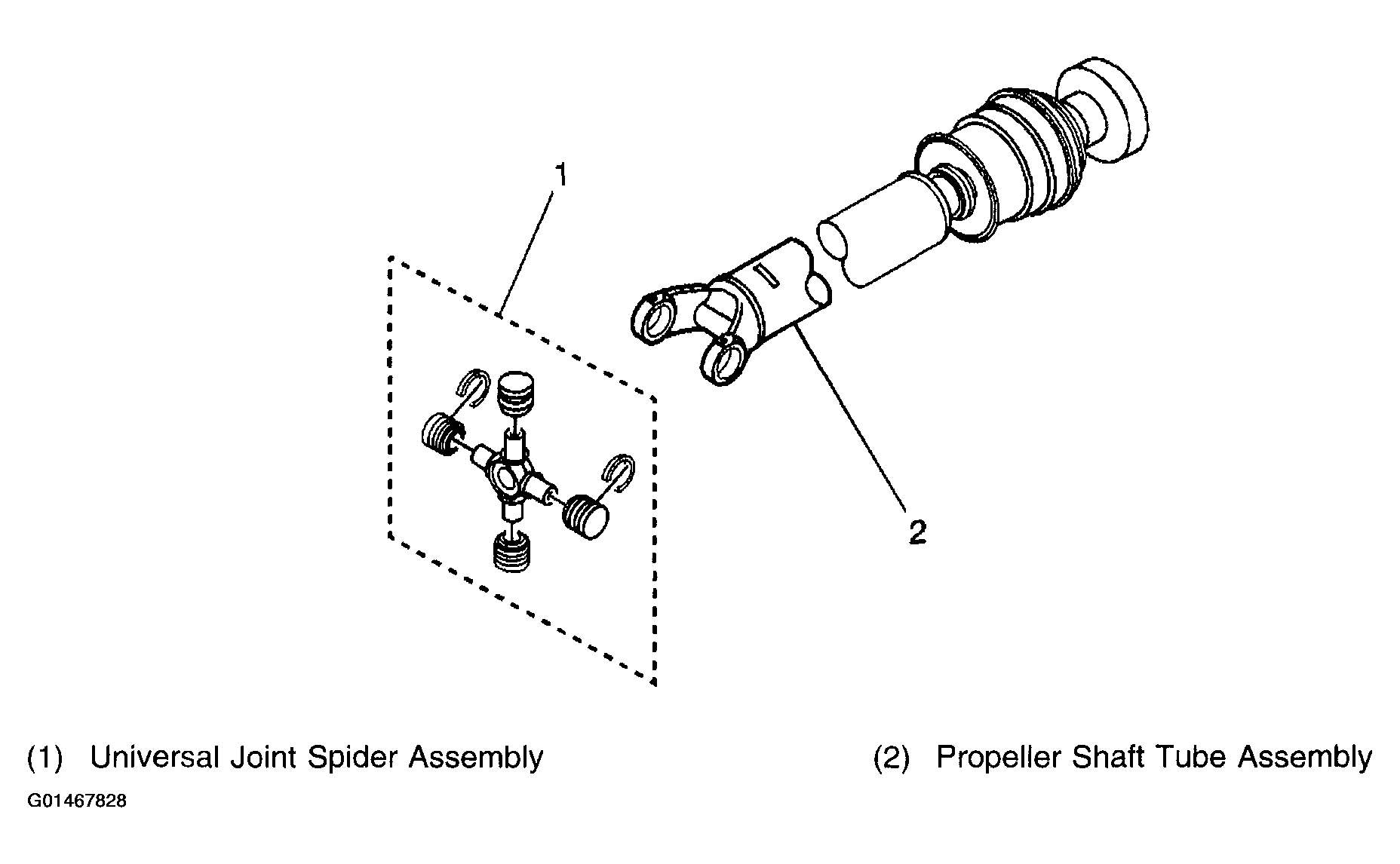

Fig 3: Front Drive Propeller Shaft Disassembled View
G01467828Courtesy of GENERAL MOTORS CORP.
