Section 896 (Vibration Symptoms Diagnosis And Correction)
>>
Specifications
>>
Tire & Wheel Runout Specifications
Tire & Wheel Runout Specifications
WARNING:
This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

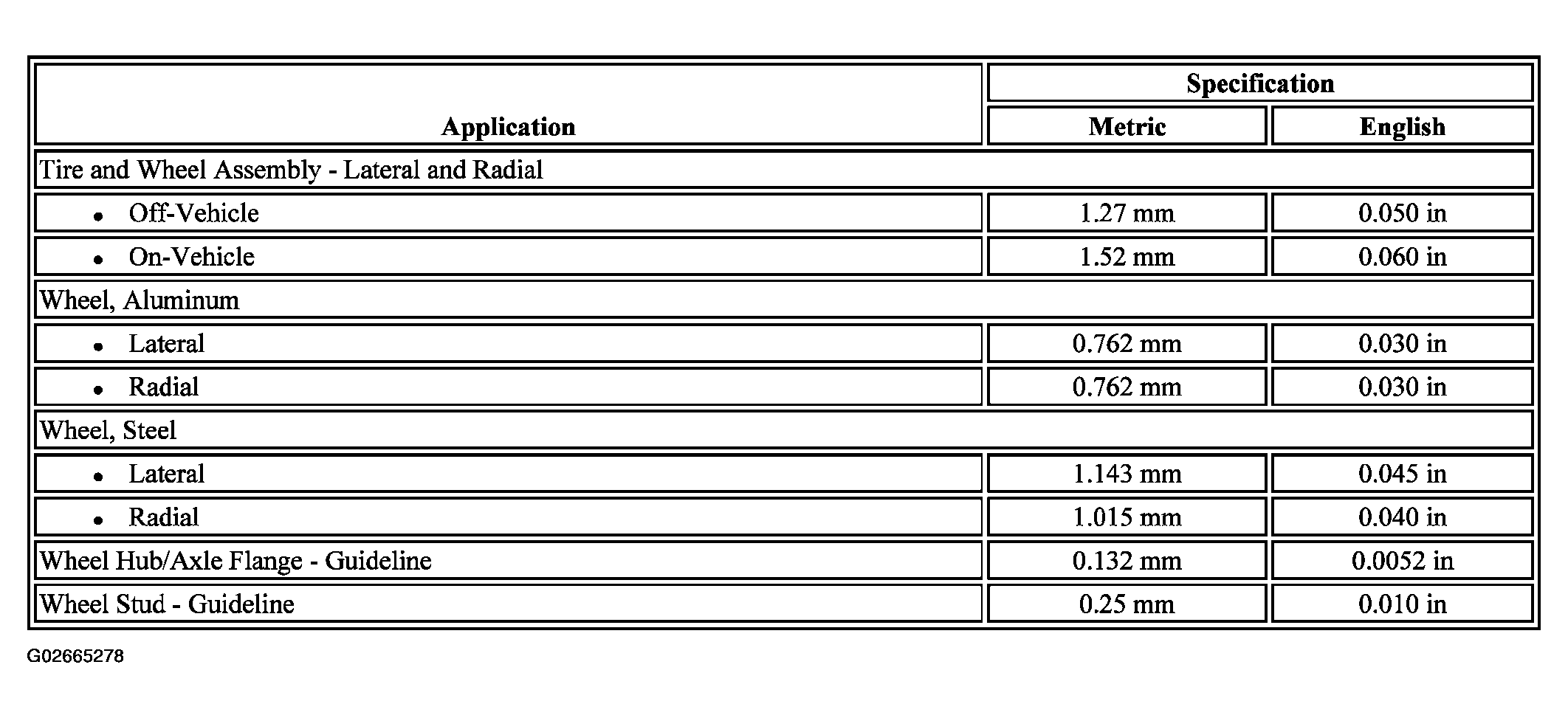

Fig 1: Tire & Wheel Runout Specifications
Courtesy of GENERAL MOTORS CORP.
