Floor Jack At The Front Of Vehicle

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

When lifting front the vehicle with a floor jack, place the floor jack lift pad at the center of the front frame rail.

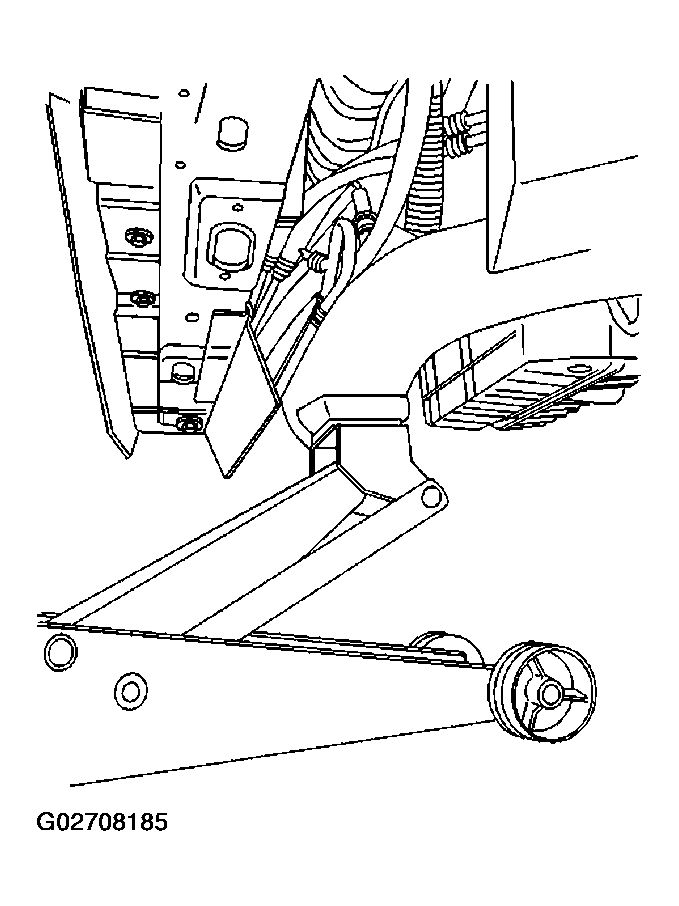

Fig 1: Lifting Vehicle With Floor Jack

Courtesy of GENERAL MOTORS CORP.

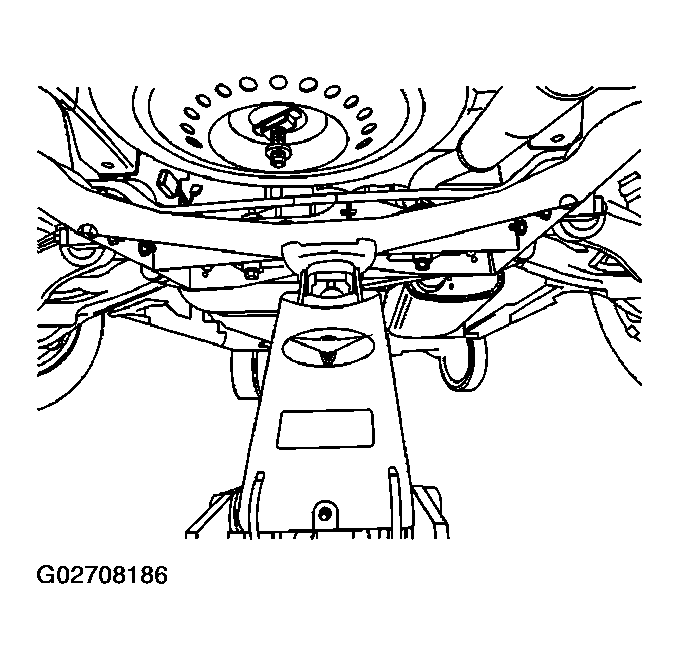

Fig 2: Floor Jack At Rear Of Vehicle - All Wheel Drive

Courtesy of GENERAL MOTORS CORP.

Lift the rear of the vehicle by placing the floor jack lift pad at the center of the rear suspension.

Fig 3: Floor Jack At Rear Of Vehicle - Front Wheel Drive

Courtesy of GENERAL MOTORS CORP.
