Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Important: Position the left side first, then the right side.

Position the impact bar to the body using the alignment pin for location.

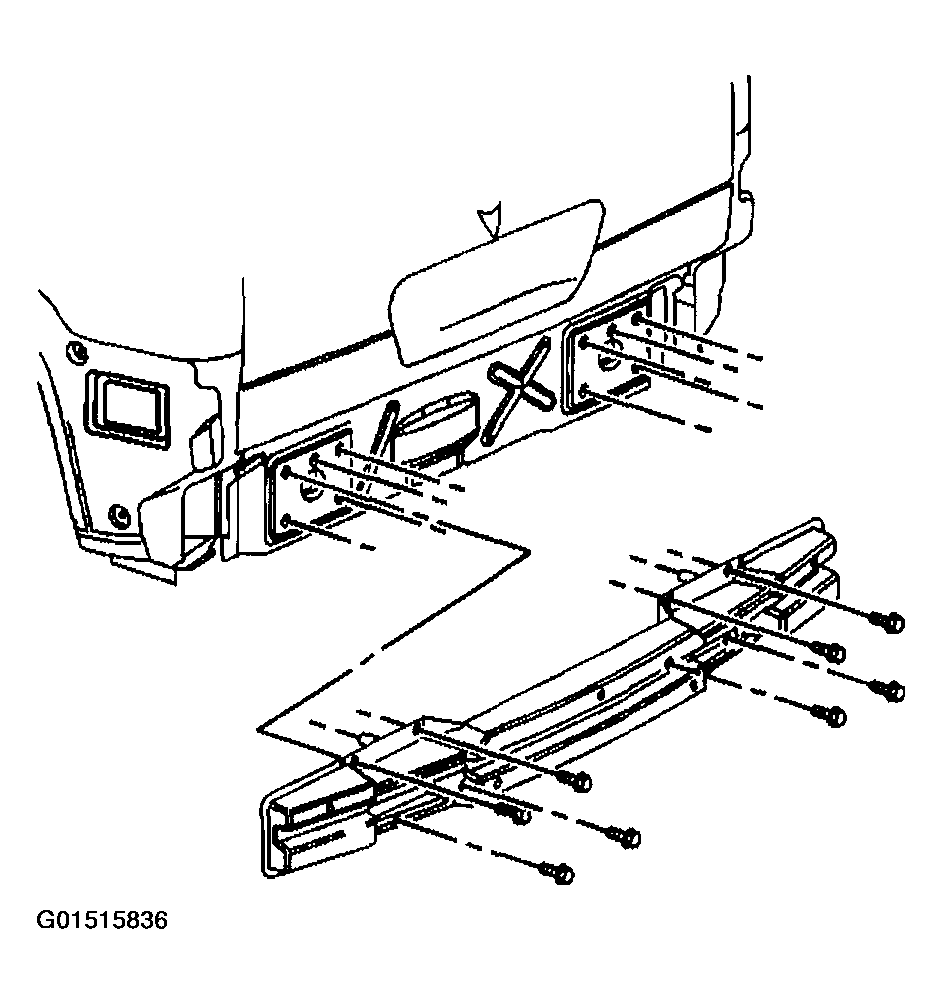

Fig 1: Installing Impact Bar Bolts
Courtesy of GENERAL MOTORS CORP.
Install the impact bar bolts.
Tighten

Tighten the impact bar bolts to 50 N.m (37 lb ft).
Install the energy absorber. Refer to ENERGY ABSORBER REPLACEMENT - REAR (AZTEK) or ENERGY ABSORBER REPLACEMENT - REAR (RENDEZVOUS) .
Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (AZTEK) or FASCIA REPLACEMENT - REAR BUMPER (RENDEZVOUS) .
