Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER - UPPER (AZTEK)  or FASCIA REPLACEMENT - FRONT BUMPER - UPPER (RENDEZVOUS)  .
  2. Remove the hood latch and cable. Refer to HOOD LATCH RELEASE CABLE REPLACEMENT .
  3. Disconnect the headlamp wiring harness from the fascia upper support.
  4. Remove the bolts from the fascia upper support.

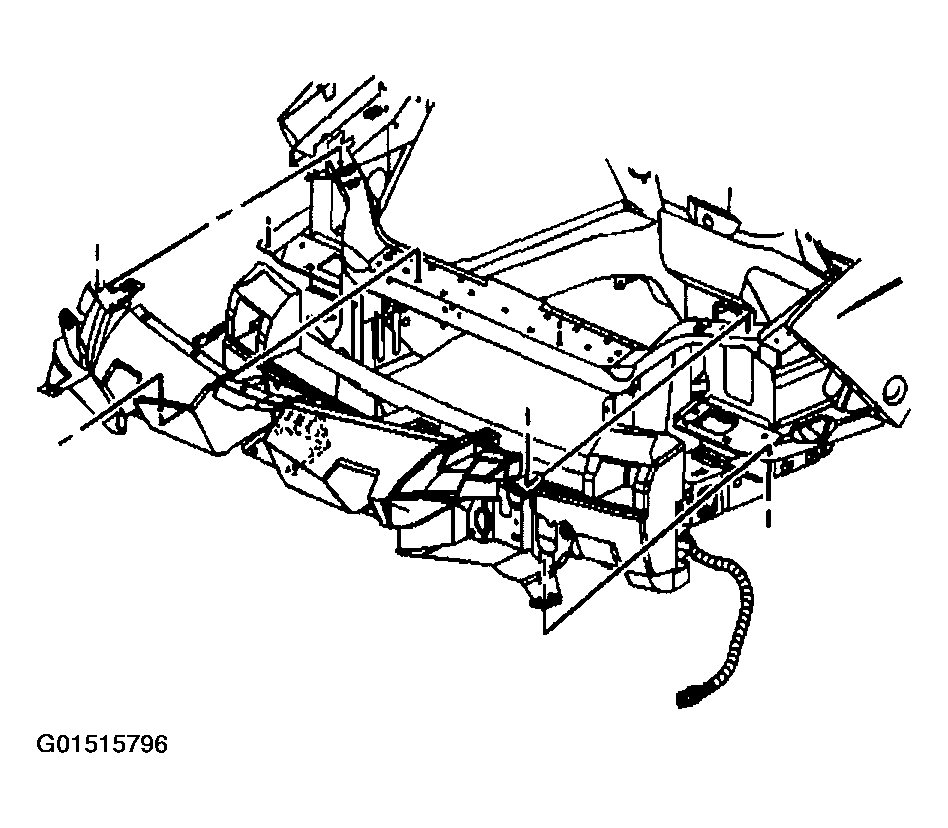

    Fig 1: Removing Fascia Upper Support From Upper Radiator Support
    G01515796Courtesy of GENERAL MOTORS CORP.
  5. Remove the fascia upper support from the upper radiator support.
    Fig 2: Removing Fascia Upper Support From Upper Radiator Support
    G01515797Courtesy of GENERAL MOTORS CORP.
