Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fascia upper support to the upper radiator support.

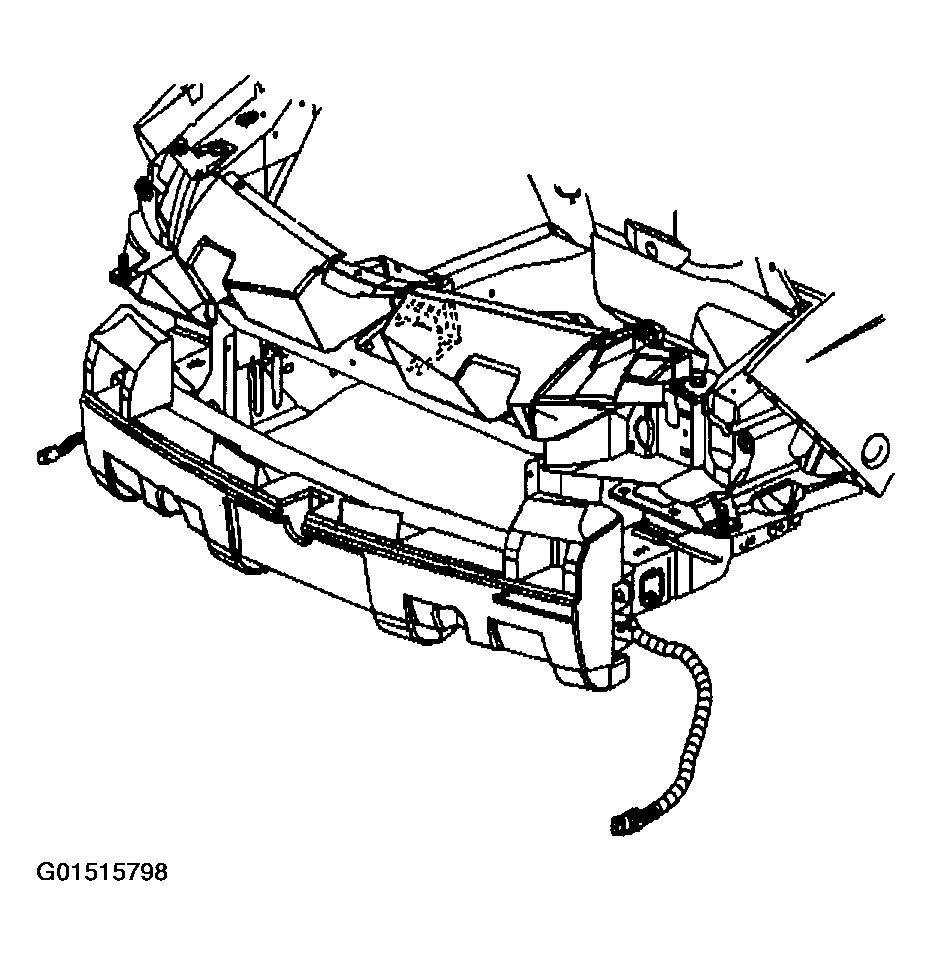

    Fig 1: Connecting Headlamp Wiring Harness To Fascia Upper Support
    G01515798Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts to the fascia upper support.

    Tighten

    Tighten the bolts to 5 N.m (44 lb in).

  3. Install the bolts to the fascia lower support.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  4. Connect the headlamp wiring harness to the fascia upper support.
  5. Install the hood latch and cable. Refer to HOOD LATCH RELEASE CABLE REPLACEMENT .
  6. Install the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER - UPPER (AZTEK)  or FASCIA REPLACEMENT - FRONT BUMPER - UPPER (RENDEZVOUS)  .

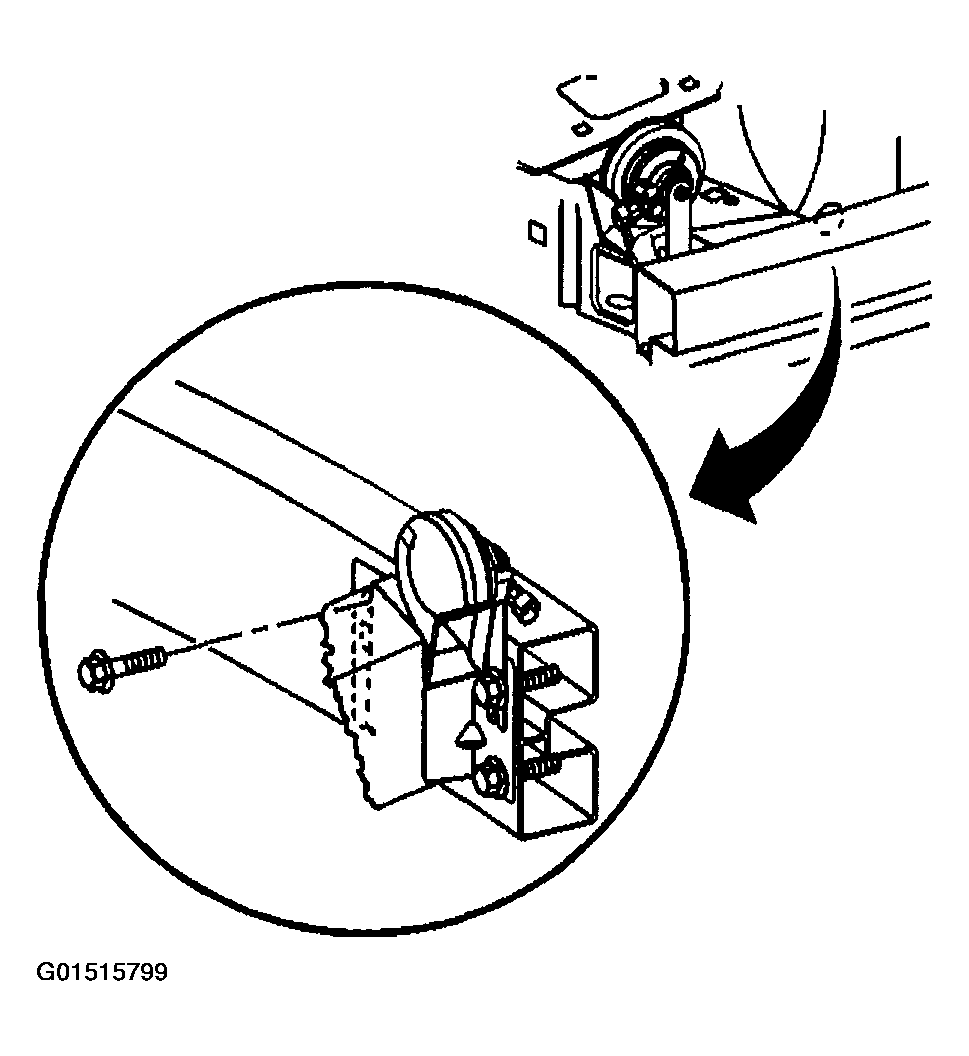

    Fig 2: Installing Upper Inboard Impact Bar Bolt
    G01515799Courtesy of GENERAL MOTORS CORP.
