Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Open the endgate.
Using J 38778 , remove the rear bumper fascia push-in retainers at the inboard side of the rear quarter panel.

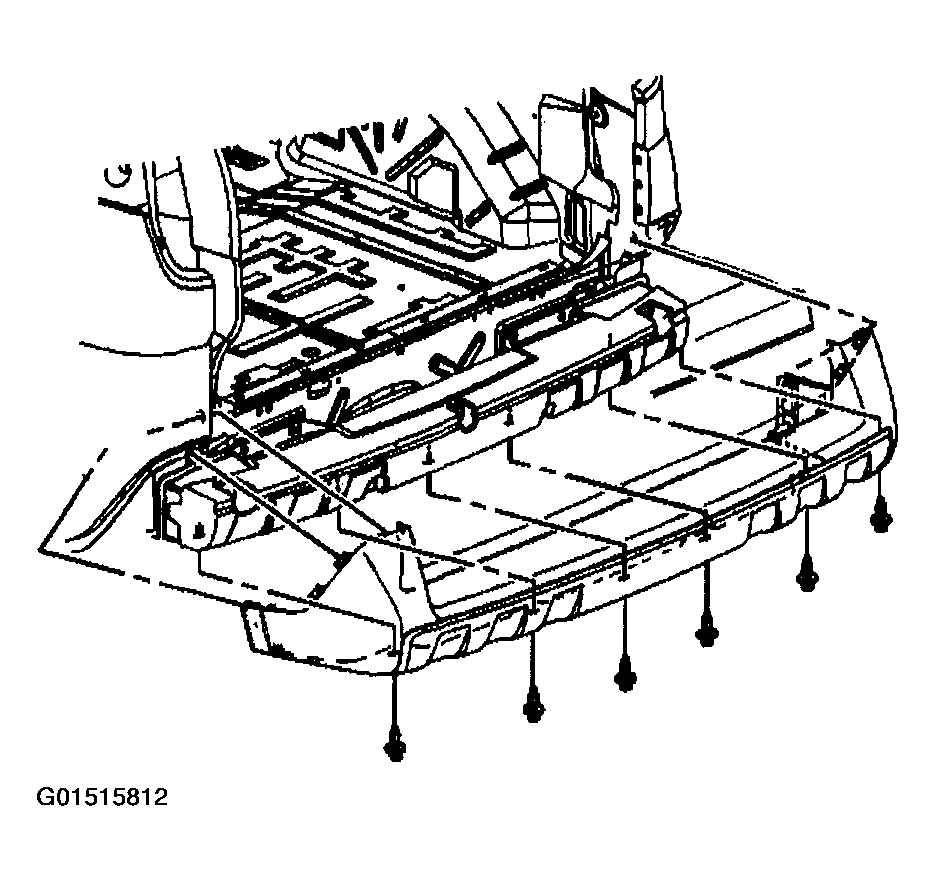

Fig 1: Removing Push-In Retainers From Rear Bumper Fascia At Rear Impact Bar
Courtesy of GENERAL MOTORS CORP.
Using J 38778, remove the push-in retainers from the rear bumper fascia at the rear impact bar.

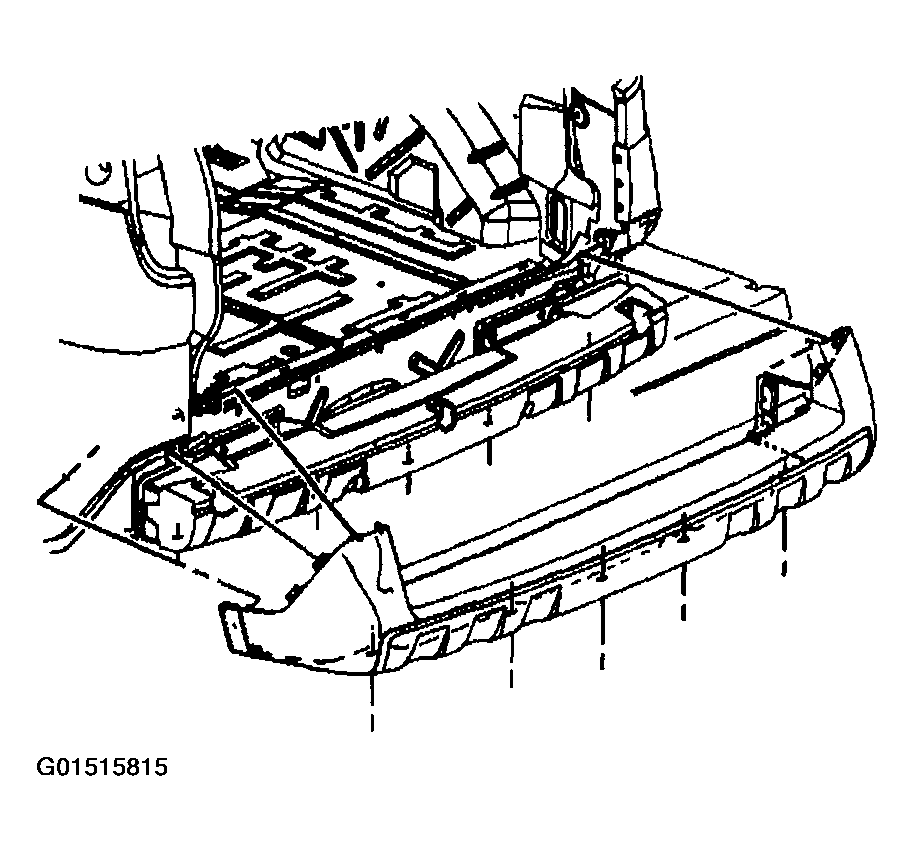

Fig 2: Removing Rear Bumper Fascia From Vehicle
Courtesy of GENERAL MOTORS CORP.
Using J 38778, remove the push-in retainers from the rear bumper fascia upper tabs.
Remove the rear bumper fascia from the vehicle.

Fig 3: Removing Grommets From Rear Pillar
Courtesy of GENERAL MOTORS CORP.
Remove the grommets from the rear pillar using a small flat-bladed tool, if required.

Fig 4: Removing Grommets From Rear Pillar
Courtesy of GENERAL MOTORS CORP.
