Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the grommets to the rear pillar, if removed.
Position the rear bumper fascia to the vehicle.

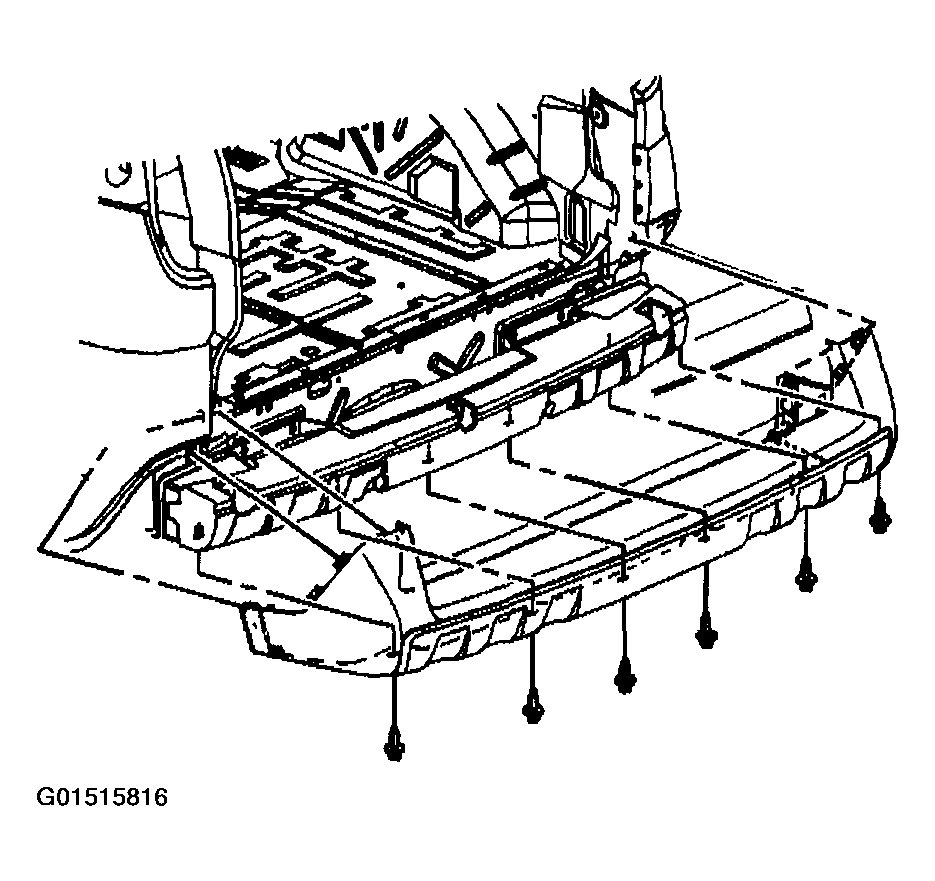

Fig 1: Installing Push-In Retainers To Lower Rear Bumper Fascia
Courtesy of GENERAL MOTORS CORP.
Install the rear bumper fascia tabs to the rear quarter moldings.
Starting at the center hole, install the push-in retainers to the lower rear bumper fascia.

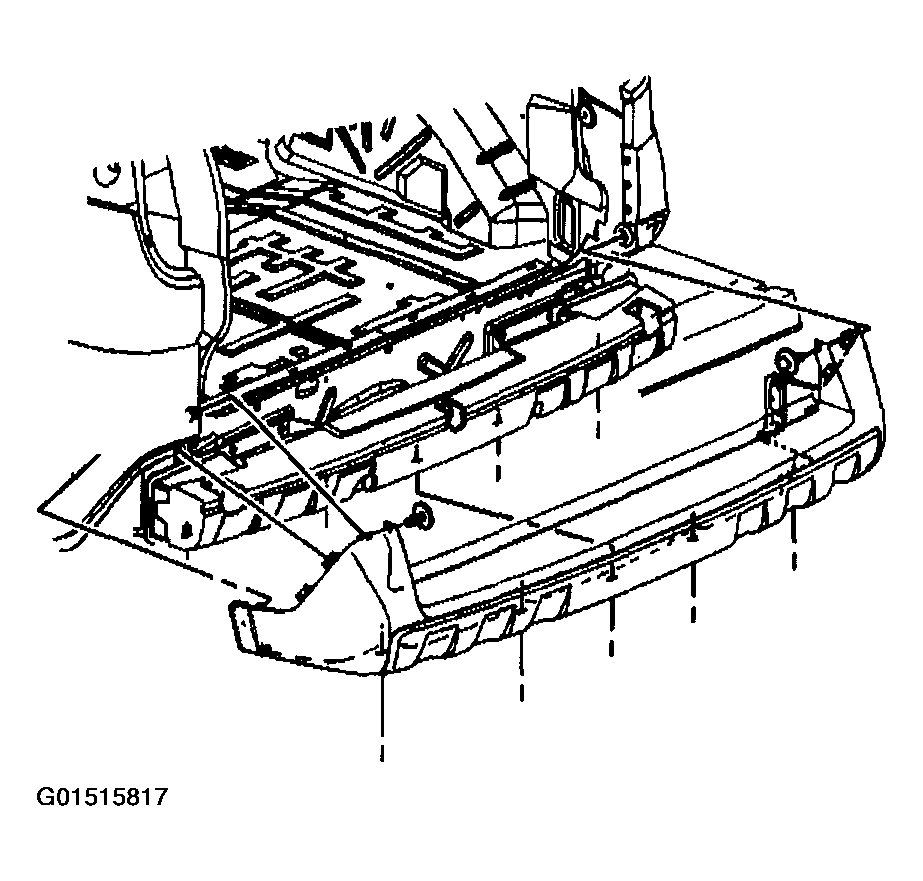

Fig 2: Installing Push-In Retainers To Rear Bumper Fascia Upper Tabs
Courtesy of GENERAL MOTORS CORP.
Install the push-in retainers to the rear bumper fascia upper tabs.

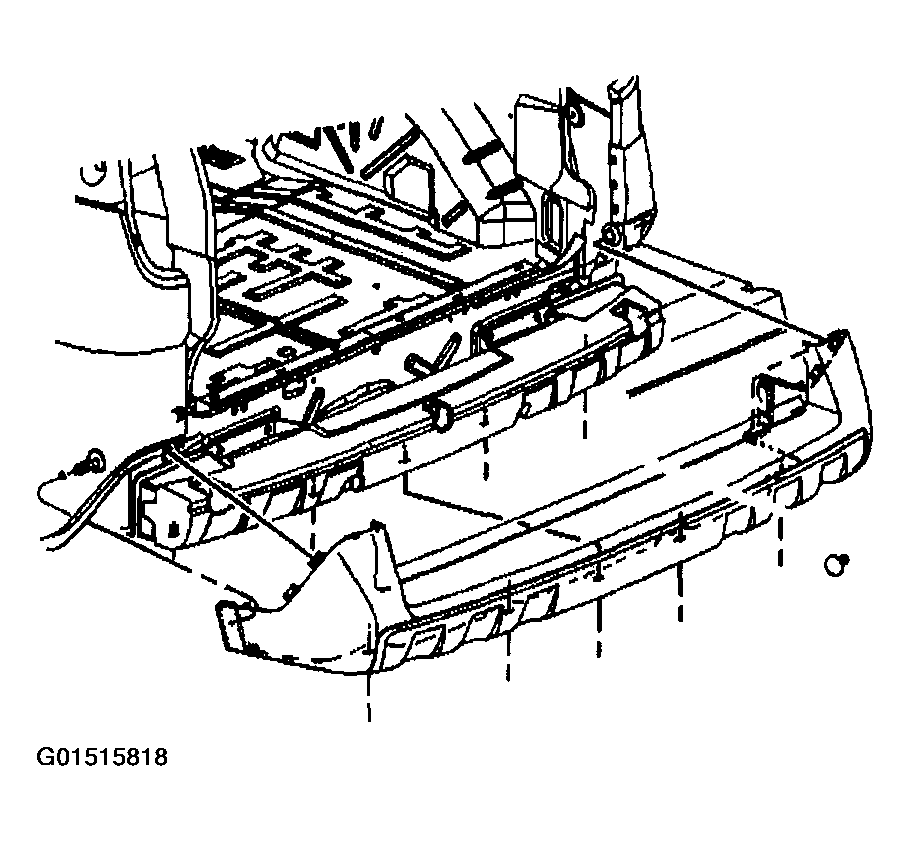

Fig 3: Installing Rear Bumper Fascia Push-In Retainers To Inboard Side
Courtesy of GENERAL MOTORS CORP.
Install the rear bumper fascia push-in retainers to the inboard side of the rear quarter panel.
Close the endgate.

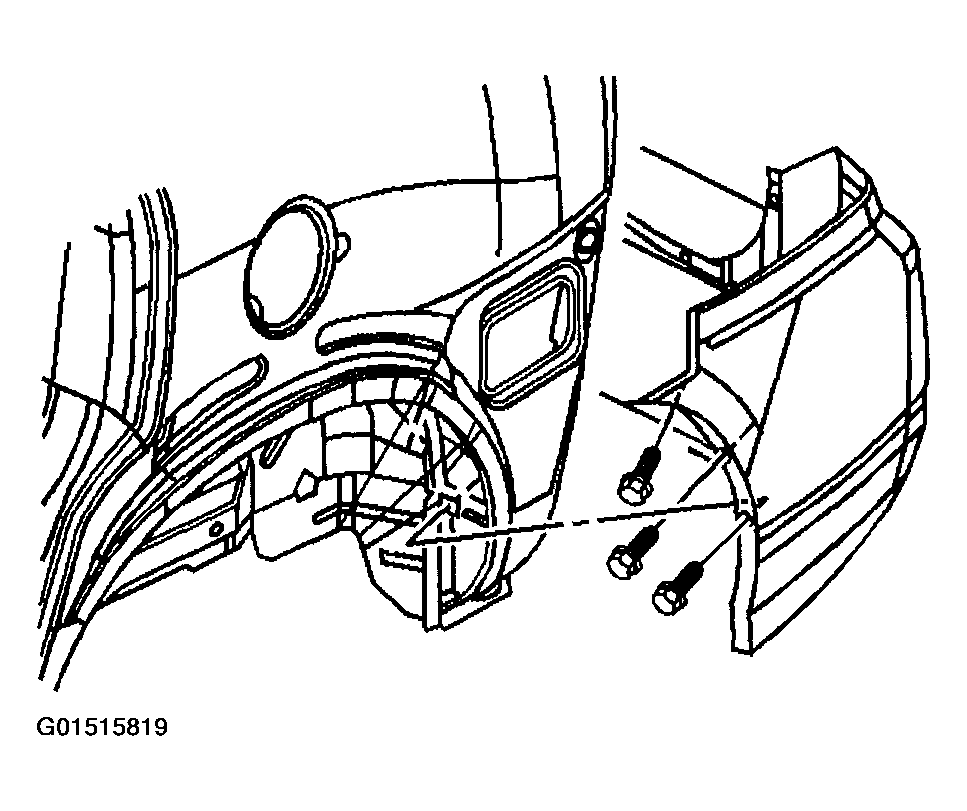

Fig 4: Installing Screws To Right And Left Side Of Rear Bumper Fascia
Courtesy of GENERAL MOTORS CORP.
