Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fender liners. Refer to FRONT FENDER LINER REPLACEMENT .
  2. Remove the headlamps. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (AZTEK) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (RENDEZVOUS) .
  3. Remove the fog lamps. Refer to FOG LAMP REPLACEMENT -- FRONT (AZTEK) or FOG LAMP REPLACEMENT -- FRONT (RENDEZVOUS) .
  4. Remove the bolts from the front bumper fascia at the fender.

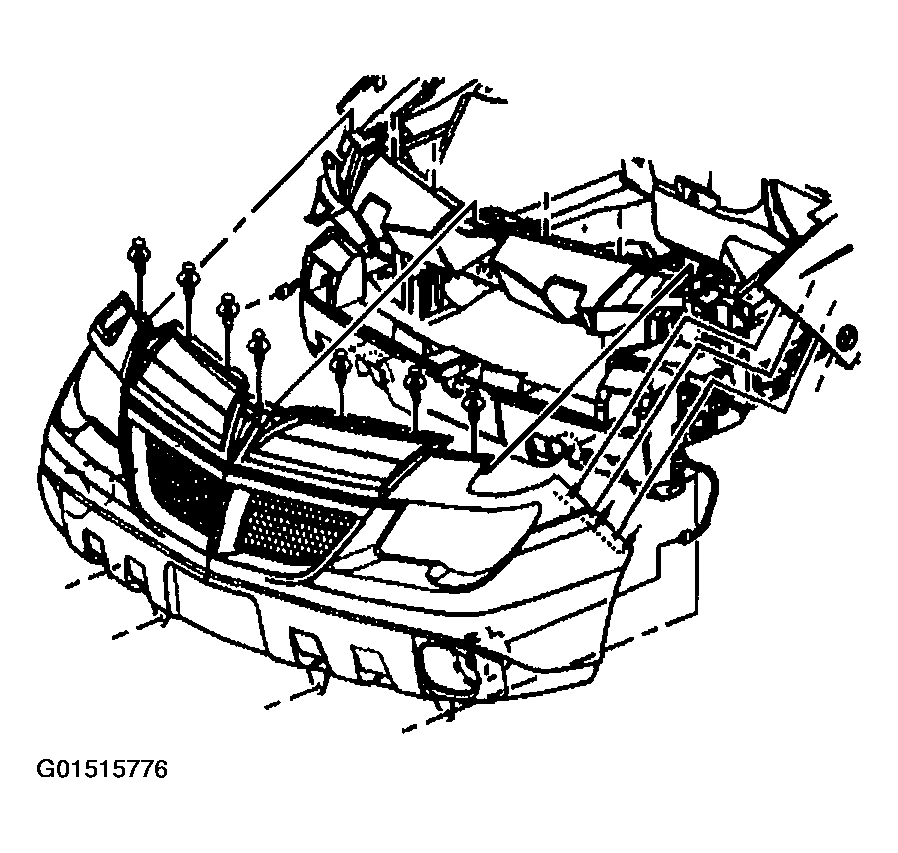

    Fig 1: Removing Push-In Retainers From Upper Bumper Fascia Support
    G01515776Courtesy of GENERAL MOTORS CORP.
  5. Remove the push-in retainers from the upper bumper fascia support using J 38778.

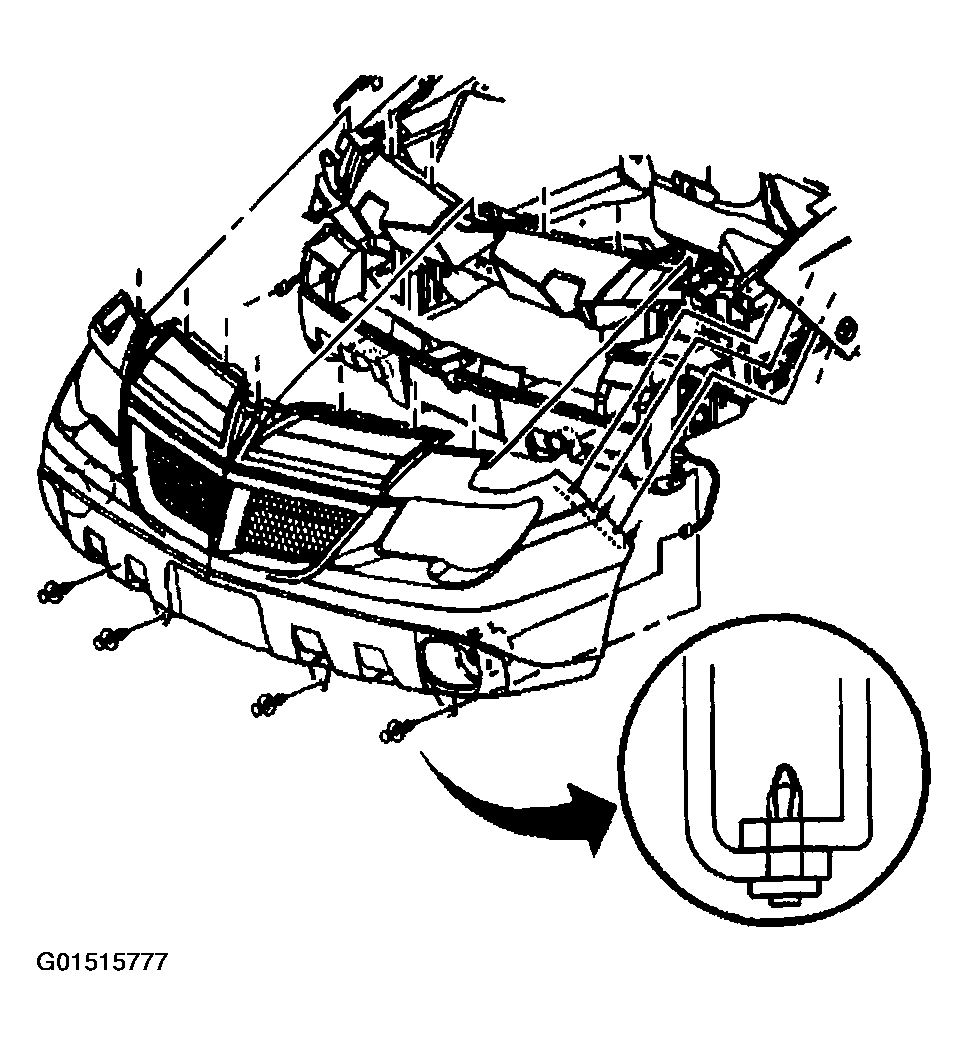

    Fig 2: Removing Push-In Retainers To Fascia At Front Bumper Energy Absorber
    G01515777Courtesy of GENERAL MOTORS CORP.
  6. Remove the push-in retainers to the fascia at the front bumper energy absorber using J 38778.
  7. Remove the fascia from the vehicle.
  8. Remove the grilles from the fascia. Refer to FASCIA GRILLE REPLACEMENT (AZTEK)  or FASCIA GRILLE REPLACEMENT (RENDEZVOUS)  .
  9. Remove the fascia outer support from the fascia.

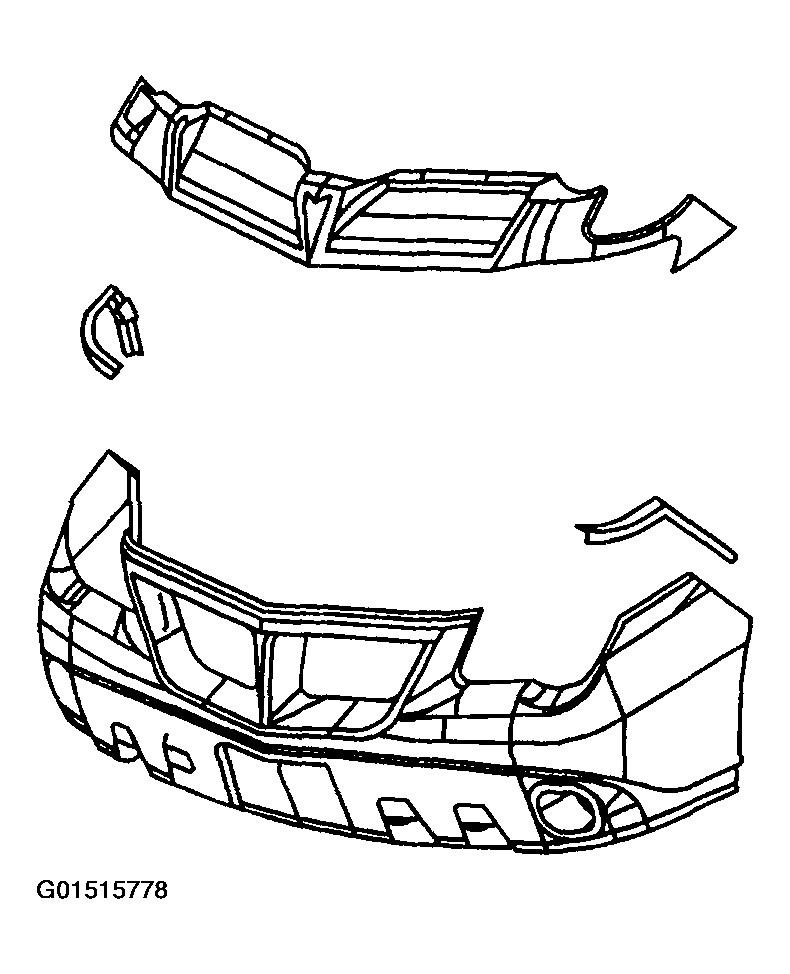

    Fig 3: Removing Upper Fascia From Lower Fascia
    G01515778Courtesy of GENERAL MOTORS CORP.
  10. Remove the upper fascia from the lower fascia.

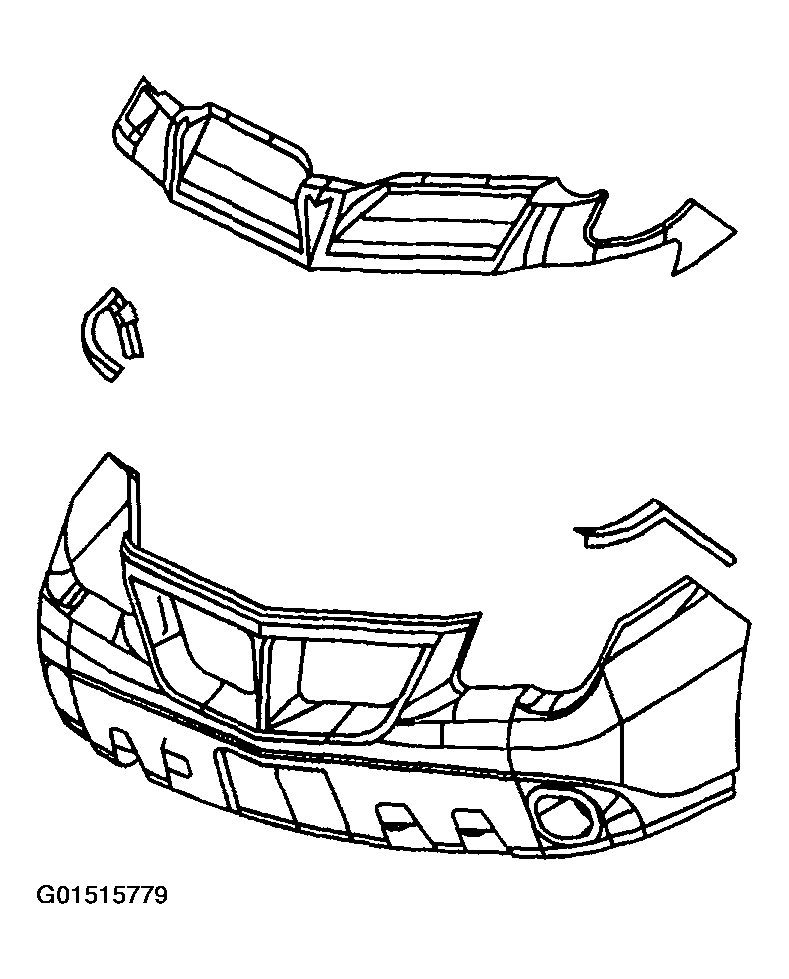

    Fig 4: Removing Upper Fascia From Lower Fascia
    G01515779Courtesy of GENERAL MOTORS CORP.
