Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (AZTEK) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (RENDEZVOUS) .
  2. Remove the grille screws.

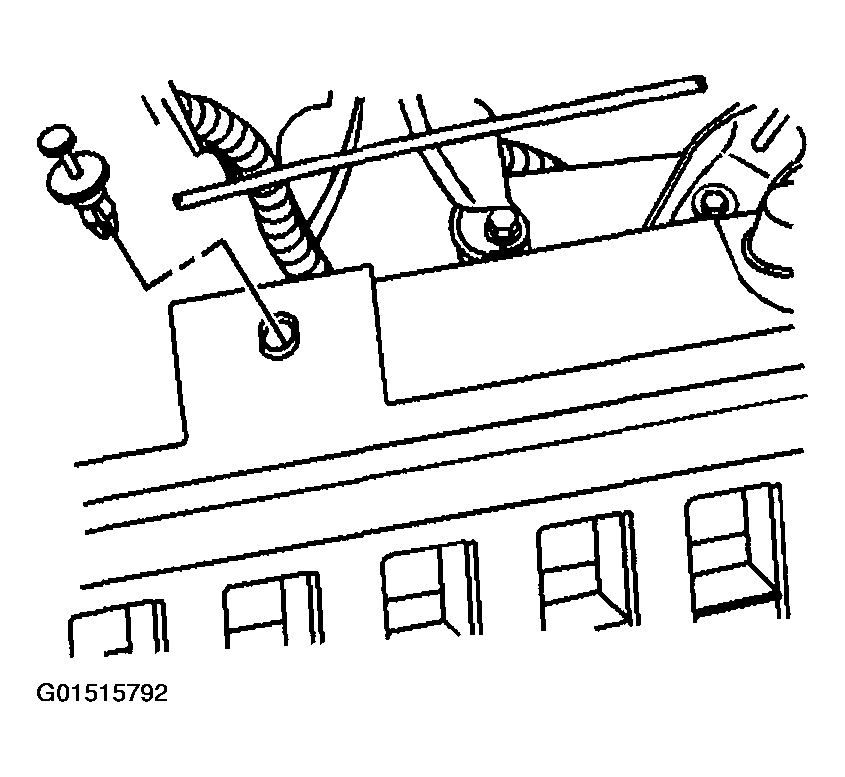

    Fig 1: Removing Retainers From Top Of Grille
    G01515792Courtesy of GENERAL MOTORS CORP.
  3. Remove the retainers from the top of the grille.
  4. Using a flat bladed tool, reach into the opening behind front fascia and depress the tabs that lock the front fascia grille to the front fascia.
  5. Remove the grille from the front fascia.

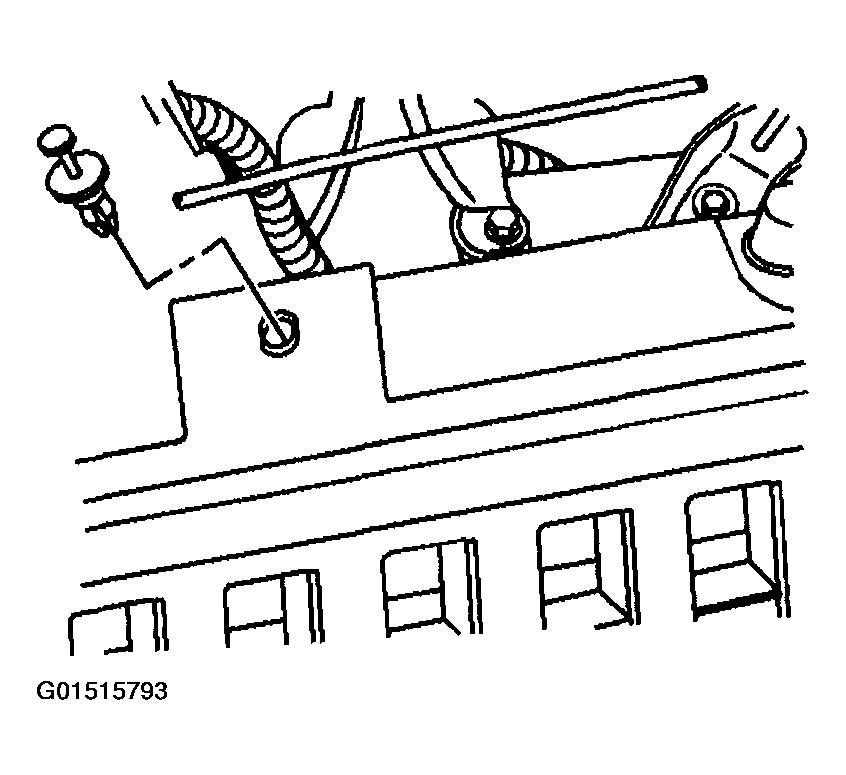

    Fig 2: Removing Top Of Grille Retainers
    G01515793Courtesy of GENERAL MOTORS CORP.
