Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (AZTEK) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (RENDEZVOUS) .
  2. Using a small flat-bladed tool, reach into the opening behind the front fascia and depress the retaining tabs (1, 2, 3, 4, 5) that lock the front fascia grille to the front fascia.
  3. Remove the grille from the front fascia.

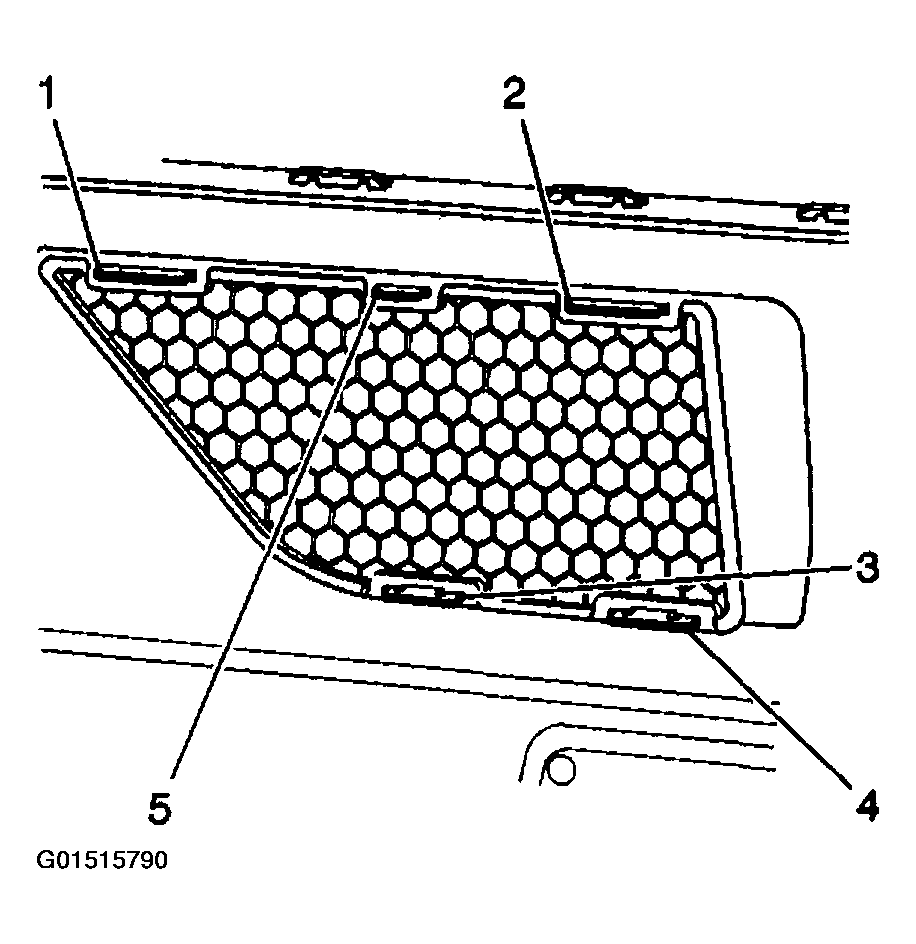

    Fig 1: Installing Grille To Front Fascia
    G01515790Courtesy of GENERAL MOTORS CORP.
